Boardlock Series

Available in a wide variety of A Series™ product lines.

1, 2, 3, 4, 6, 8, 12, 13 and 18 position (See individual series)

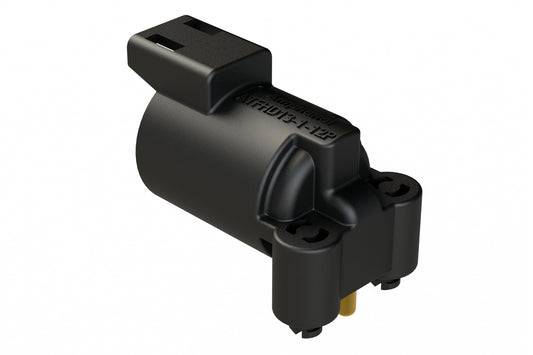

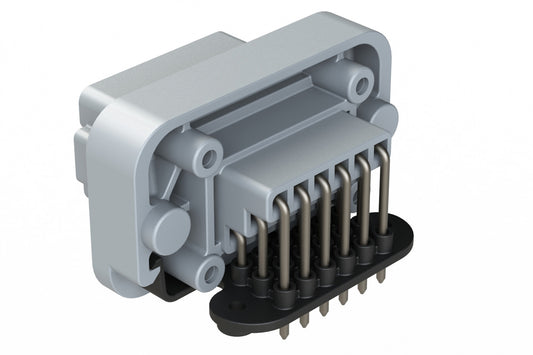

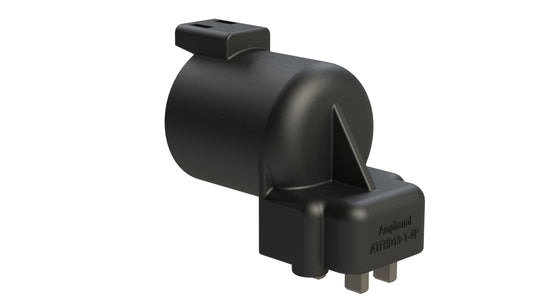

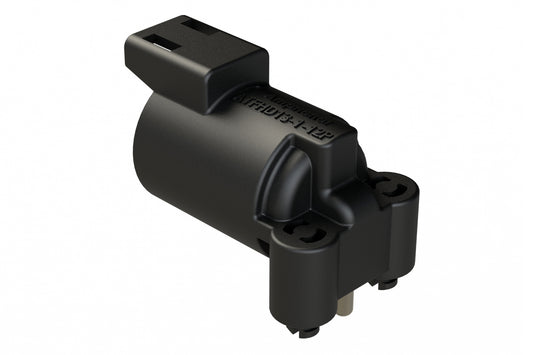

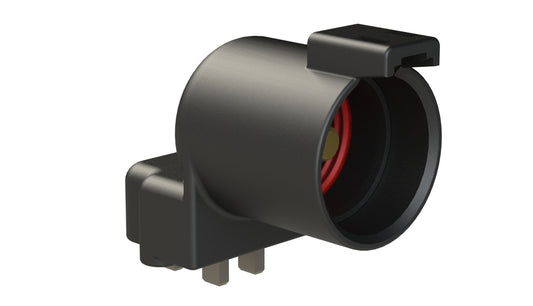

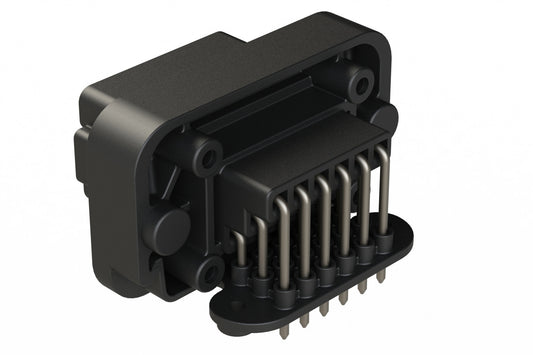

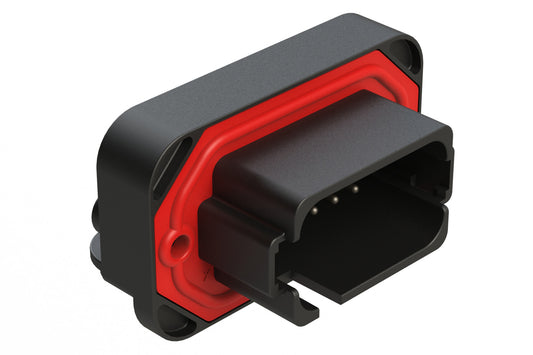

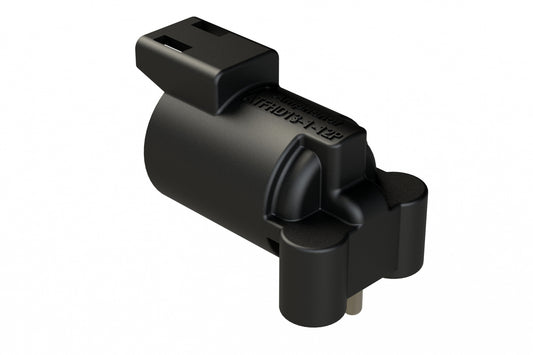

Amphenol Sine Systems’ BoardLock™ Family combines flanged or flangeless, 180° straight or 90° right angle pin-oriented, wire-to-board versatility with the proven reliability of the A Series™ environmentally-sealed thermoplastic connection system with a maximum current rating up to 100A. Featuring a compact, durable, low-profile and lightweight design, perfect for power or data signal applications. All BoardLock™ product lines accept A Series™ components and are comparable with other industry standard mating connectors.  All BoardLock™ variations are IP68 rated (in mated condition).

Features

  • Flanged or Flangeless
  • 180° Straight or 90° Right Angle Pin Orientation
  • Snap-Fit or Self-Threading Mounting
  • Potted or Unpotted

Applications: Power & Signal Connectivity, Data Acquisition, HVAC Systems, Farming Implementation, Boating, Sealed Environments, Heavy Equipment, Transportation, Industrial, Off-Road and Harsh Environments
