Collection: C091 M16-A
Available in 2 - 8, 12 and 14 positions
- M16 Size
- Screw locking according to IEC 61076-2-106
- Metal locking ring
- IP40 Rated (mated)
- Internal strain relief
- Male and female cable connectors straight and angled rear panel mounting
- Male and female receptacles for front and.PCB mounting
- Colored back shells optional
- UL registered under file number E 63 093 UL .
-

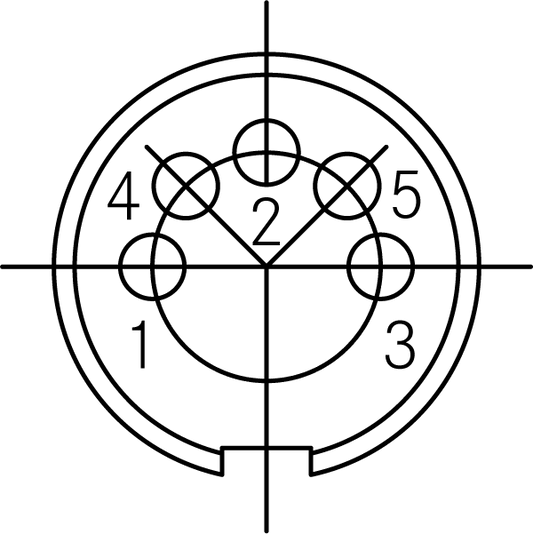

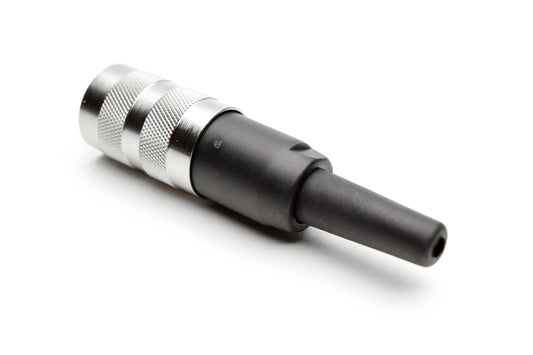

T 3361 020 Female Connectors with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -

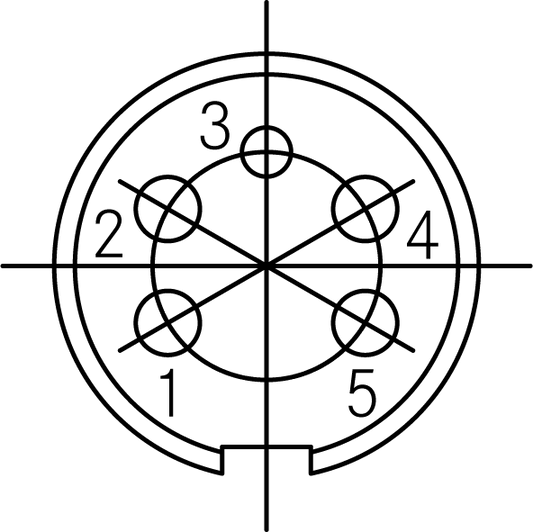

T 3361 018 Female Connectors with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3361 013 Female Connectors with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3361 010 Female Connectors with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3361 005 Female Connectors with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3361 004 Female Connectors with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3361 002 Female Connectors with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3361 001 Female Connectors with internal strain relief and metal locking ring. Screw locking according to DIN EN 60130-9 / IEC 60130-9. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3359 900 Rear mounting female Connectors with ring nut (hex nut available upon request). Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3359 430 Rear mounting female Connectors with ring nut (hex nut available upon request). Pin length of 19.5mm from flange. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3359 420 Rear mounting female Connectors with ring nut (hex nut available upon request). Pin length of 14.5mm from flange. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3359 400 Rear mounting female Connectors with ring nut (hex nut available upon request). Pin length of 10.5mm from flange. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3359 330 Front mounting female Connectors with ring nut (hex nut available upon request). Pin length of 24mm from flange. Solder area is tin plated, sealing with O-ring. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3359 320 Front mounting female Connectors with ring nut (hex nut available upon request). Pin length of 19mm from flange. Solder area is tin plated, sealing with O-ring. Contacts included..
Regular price $0.00 AUDRegular priceUnit price / per -
T 3359 300 Front mounting female Connectors with ring nut (hex nut available upon request). Pin length of 15mm from flange. Solder area is tin plated, sealing with O-ring. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3359 118 Rear mounting female Connectors with ring nut (hex nut available upon request). Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per
