C091 M16-A
Available in 2 - 8, 12 and 14 positions
- M16 Size
- Screw locking according to IEC 61076-2-106
- Metal locking ring
- IP40 Rated (mated)
- Internal strain relief
- Male and female cable connectors straight and angled rear panel mounting
- Male and female receptacles for front and.PCB mounting
- Colored back shells optional
- UL registered under file number E 63 093 UL .
-

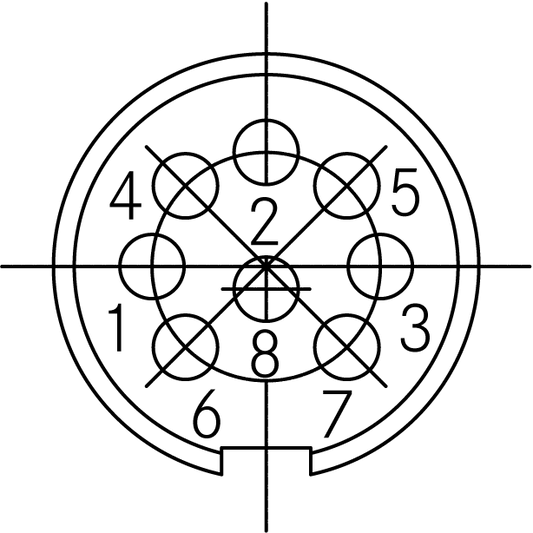

T 3504 001 Male Connectors with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3486 430 Rear mounting male Connectors with ring nut (hex nut available upon request). Pin length of 19.5mm from flange. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -

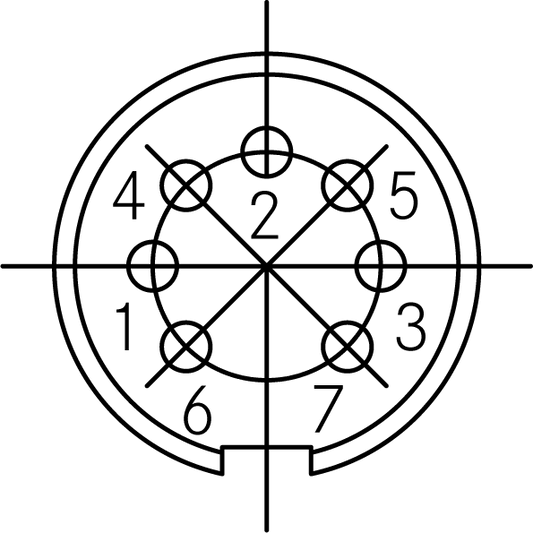

T 3486 420 Rear mounting male Connectors with ring nut (hex nut available upon request). Pin length of 14.5mm from flange. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3486 400 Rear mounting male Connectors with ring nut (hex nut available upon request). Contacts included. Pin length of 10.5mm from flange.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3486 300 Front mounting male Connectors with ring nut (hex nut available upon request). Contacts included. Pin length of 10.5mm from flange.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3486 100 Rear mounting male Connectors with ring nut (hex nut available upon request). Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3486 018 Front mounting male Connectors with ring nut (hex nut available upon request). Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3486 000 Front mounting male Connectors with ring nut (hex nut available upon request). Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3484 058 Male Connectors with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3484 048 Male Connectors with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3484 028 Male Connectors with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per -
T 3484 018 Male Connectors with internal strain relief and metal locking ring. Screw locking according to IEC 61076-2-106. Contacts included.
Regular price $0.00 AUDRegular priceUnit price / per
