Series Five

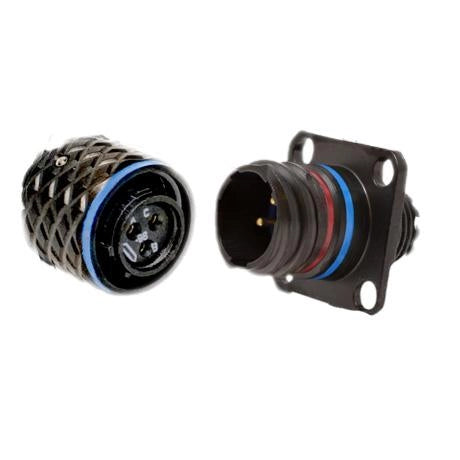

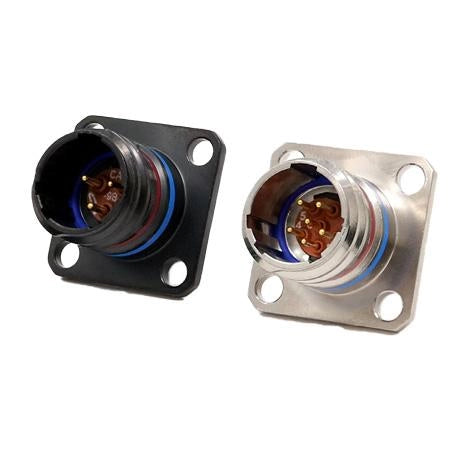

The Amphenol Socapex Series Five connector is a compact, high-performance circular connector that delivers full MIL-DTL-38999 Series III performance in a design up to 30% smaller and lighter. Engineered for SWaP-constrained environments, it offers high-density signal and power in a reduced footprint with a 100% scoop-proof design, 38999-qualified insulator, EMI spring, and quick-coupling double start thread. Compared to 2M805 connectors it is 25% lighter and 15% smaller, and versus D38999 Series III it is 50% lighter and 20% smaller, making it an ideal solution for military avionics, commercial aerospace, ground vehicles, and C5ISR applications.

Series Five Catalogue

Can I get Series Five drawings and models?

Yes! Every currently-available Series Five connector has a CAD drawing and model available for download. Please contact us for any information needed.

Does Series Five perform to D38999 Standards?

Yes! Our full test summary (tested fully to MIL-DTL-38999 requirements) is available on request.

Is Series Five a Mil-Spec product?

No, Amphenol’s Series Five product line is a custom interconnect series. However, wherever possible it uses mil-qualified components, for example, all Series Five connectors utilize M39029 contact part numbers.
