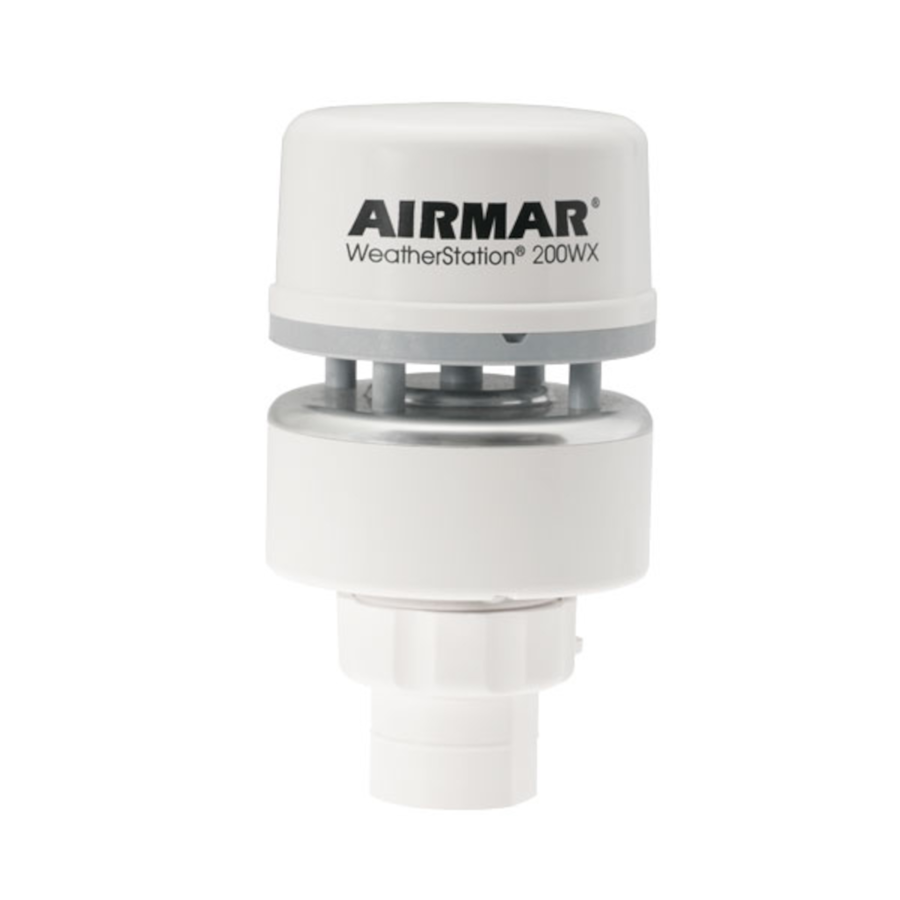

200WX WeatherStation® Instrument

200WX WeatherStation® Instrument

IMAGE MAY DIFFER

200WX

$0.00 AUD
$0.00 AUD
Sale Sold out

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
2D Drawing

Specifications

The WeatherStation 200WX is the best choice for mobile, weather-monitoring applications. Sensor rich, in a durable, rugged, small housing that is IPX6 rated, means the 200WX can be used on moving platforms such as TV-news and military vehicles.

Knowing the dynamic true wind speed and direction is important and often mission-critical. The 200WX calculates the dynamic true wind speed and direction based upon the apparent wind (the wind you would feel on your hand if you held it out while moving), speed of the vehicle, and vehicle heading. Its internal 10 Hz GPS and three-axis electronic compass provide heading, position, speed-over-ground, and course-over-ground functionality that is necessary for dynamic true wind-data processing on a moving vehicle.

The 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data. The patented 200WX maintains dynamic compass performance in hilly and mountainous terrain—common in military situations.

Features

  • Ultrasonic measurement of apparent and Dynamic true wind speed and direction
  • Barometric pressure
  • Air and wind chill temperature
  • Relative humidity (field serviceable option)
  • Calculated dew point and heat index
  • GPS position, speed over ground, and course over ground
  • Three-axis, solid-state compass with dynamic stabilization
  • Three-axis rate gyro supplies rate-of–turn data
  • Three-axis accelerometer for best-in-class pitch and roll information
  • Housing IPX6 rated for water-ingress protection
  • Data output via a single cable (various lengths available)
    • NMEA 0183/ASCII serial data protocol over RS-232 interface
    • NMEA 2000 protocol over CAN

Options

  • Relative humidity module
    • Enables dew-point and heat-index calculations
    • Field serviceable
    • WeatherStation housing rated IPX4 when RH module is installed

Specifications


Recommended Use: Marine or Land-Based, Mobile or Stationary
Humidity: Optional
Power Supply Voltage: 9 to 40 VDC
Power Supply Current: <75 mA (<0.9 W) at 12 VDC
Communications Available Protocol: Serial - NMEA 0183, CAN - NMEA 2000
Waterproof Rating: IPX6 (Relative Humidity/IPX4)
Air Temp Accuracy: ±1.1°C at 20°C
Air Temp Range: -40 to 80°C (-40 to 176°F)
Air Temp Resolution: 0.1°C
Apparent Wind Speed and Angle: Yes
Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
Barometric Pressure Range: 300 to 1100 hPa
Barometric Pressure Resolution: 0.1 hPa
Certs And Standards: CE, IPX6 (IPX4 with optional Relative Humidity sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
Communications Available Hardware Interface: Serial RS232, Serial RS422, CAN
Communications Serial Data Transmission Code: ASCII
Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz maximum recommended
GPS Position Accuracy: 2.5 m (8’) CEP
Mobile: Yes
Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
NMEA 2000 LEN: 2
Note: Cables sold separately unless otherwise specified
Operating Temp Range: -25 to 55°C (-13 to 131°F)
Optional RH Accuracy: ±5% RH at 0 to 90% RH at 20°C
Optional RH Range: 0 to 100% RH
Optional RH Resolution: 0.1% RH
Pitch Roll Accuracy: ±1° in range of ±30°
Pitch Roll Measurement Type: MEMS
Pitch Roll Range: 60°
Pitch Roll Resolution: 0.1°
Theoretical Wind Speed and Direction: Yes
Three Axis Compass Dynamic Heading Accuracy: 2° dynamic heading accuracy
Three Axis Compass Range: 0 to 359.9°
Three Axis Compass Static Heading Accuracy: 1° static heading accuracy
True Wind Speed and Direction: Yes
Weight: 300 g (0.7 lb.)
Wind Direction Accuracy: ±3° at 10 m/s
Wind Direction Calculations: User configurable damping
Wind Direction Range: 0° to 359.9°
Wind Direction Resolution: 0.1°
Wind Speed Accuracy: 5% at 10 m/s at 4 angles
Wind Speed Calculations: User configurable damping
Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
Wind Speed Resolution: 0.1 m/s
