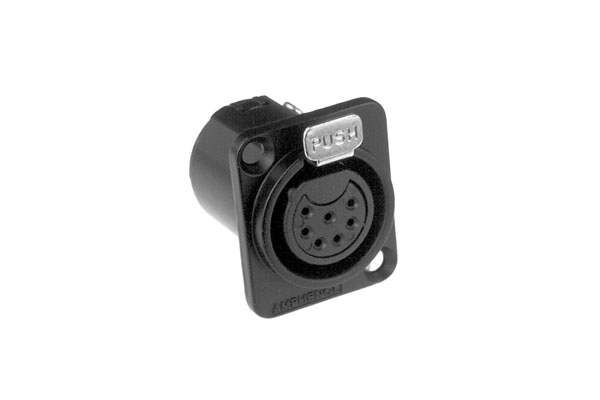

AC7FDZB 7 Pole XLR Female ChassisMount, DType,Machined Contacts, Solder Bucket, Black Finish. Comparable part no: NC7FD-L-B-1

Name: AC7FDZB 7 Pole XLR Female ChassisMount, DType,Machined Contacts, Solder Bucket, Black Finish. Comparable part no: NC7FD-L-B-1
Brand: Amphenol Audio
SKU: AC7FDZB
Availability: InStock

IMAGE MAY DIFFER

SKU:AC7FDZB

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
Assembly Instructions

Specifications

No. of Positions: 7
Gender: Female
Finish: Black
Current Carrying Capacity: 5A
IP Rating: IP40
Contact Type: Machined
Contact Plating: Gold
Termination: Solder
Max Wire Gauge: 20AWG
Flammability Rating: UL94V-0
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Service Voltage RMS: 133V (Not suitable for domestic applications above 50V)
Test Voltage AC RMS: 1400V
Typical Contact Resistance: < 3mΩ
Insulation Resistance: > 100mΩ
Operating Temperature: -25˚C to +75˚C (-13°F to +167°F)
Mating Cycle Durability: 1000
Housing Material: Diecast Zinc Alloy

7 Pole XLR Female Chassis Mount, D Type, Machined Contacts, Solder Bucket, Black Finish
