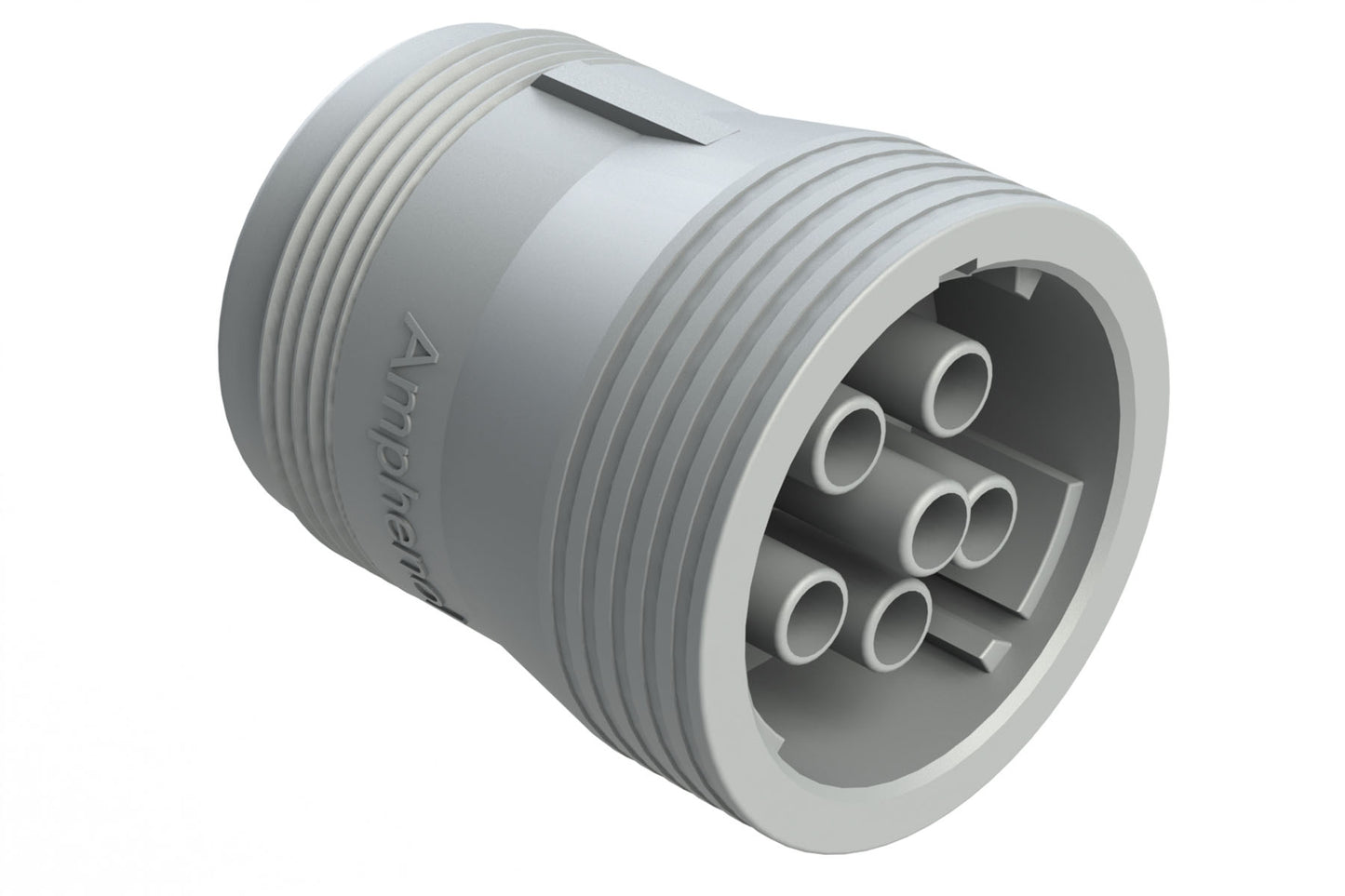

AHD16-6-12S 6 Position Plug, Female, Threaded Rear without Coupling Ring. HD16-6-12S
AHD16-6-12S 6 Position Plug, Female, Threaded Rear without Coupling Ring. HD16-6-12S
IMAGE MAY DIFFER
SKU:AHD16-6-12S
Regular price
$1.00 AUD
Regular price
Sale price
$1.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 6Gender: Female
Contact Size: 12
Colour: Grey
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AHD10-6-12P-L Receptacle
Seal Diameter: 3.40mm(.134") - 4.30mm(.170")
Wire Range: 10-14 AWG
Shape: circular
6 Position Plug, Female, Threaded Rear without Coupling Ring
