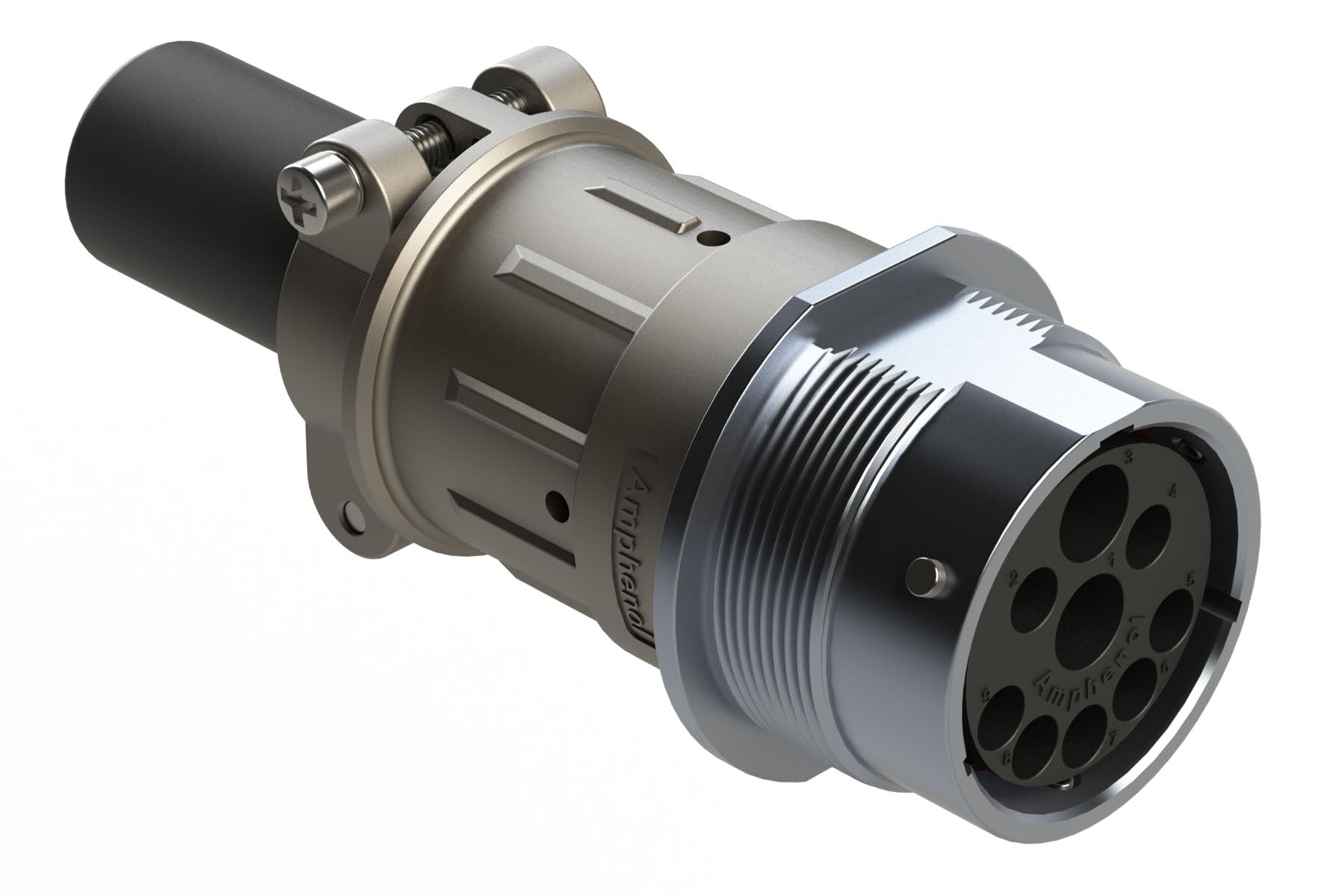

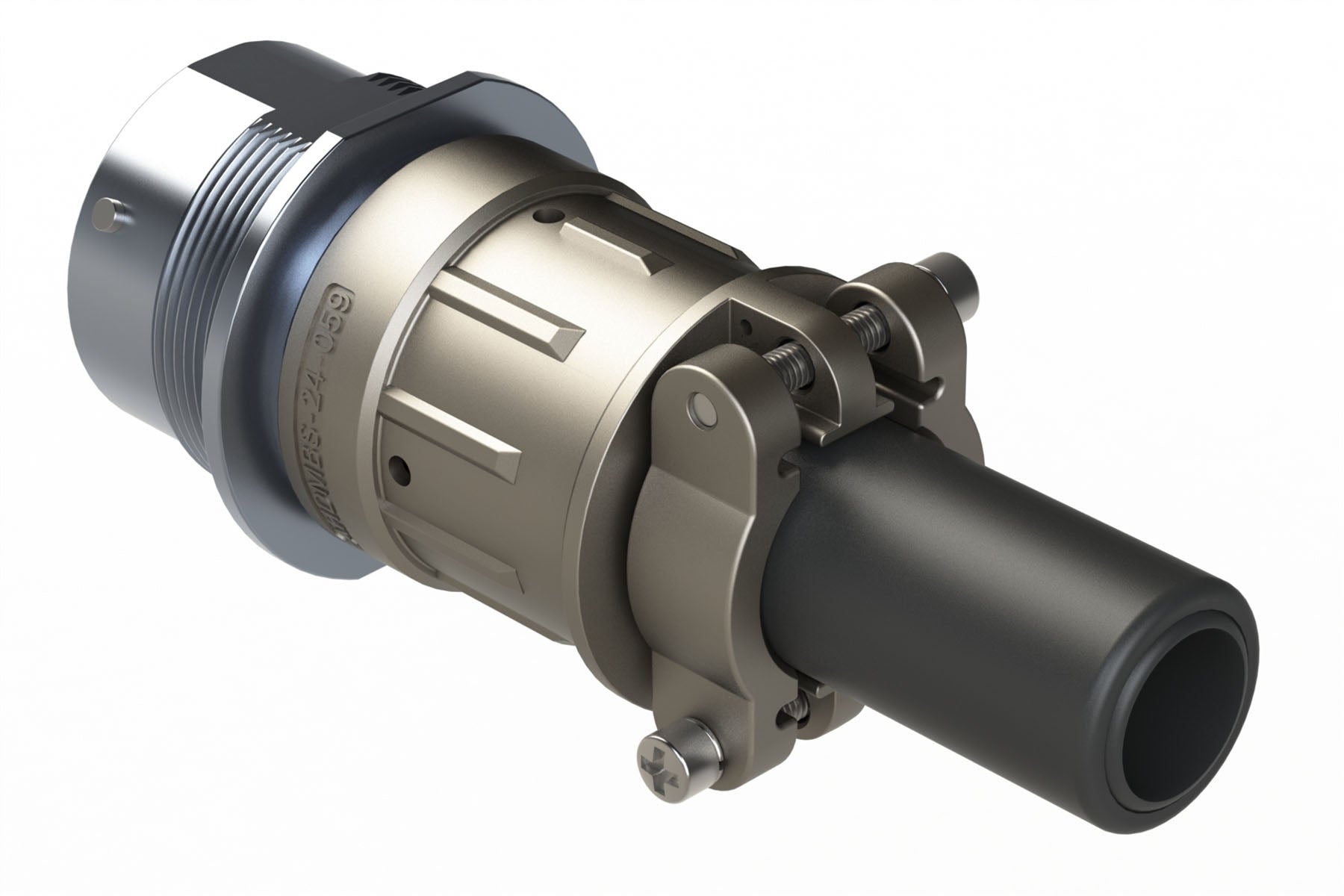

AHDBM04-24-91PN-059 9 Position ISOBUS Receptacle Kit, Pin, Shell Size 24, Normal Seal, Wide Thread Adapter (WTA), Cable Clamp Backshell, Break-Away. HDB34-24-91PN-059
AHDBM04-24-91PN-059 9 Position ISOBUS Receptacle Kit, Pin, Shell Size 24, Normal Seal, Wide Thread Adapter (WTA), Cable Clamp Backshell, Break-Away. HDB34-24-91PN-059
IMAGE MAY DIFFER
SKU:AHDBM04-24-91PN-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 9Gender: Male
Contact Size: 8,12,16
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Aluminium Alloy
Seal Material: Silicone Rubber
Mating Part: AHDBM06-24-91S*
Seal Diameter: 4.83mm (.190") - 6.10mm (.240"),3.40mm (.134") - 4.32mm (.170"), 2.54mm (.100") - 3.40mm (.134")
Wire Range: 8-10AWG,10-14AWG,14-20AWG
Shape: Circular
9 Position ISOBUS Receptacle Kit, Pin, Shell Size 24, Normal Seal, Wide Thread Adapter (WTA), Cable Clamp Backshell, Break-Away
