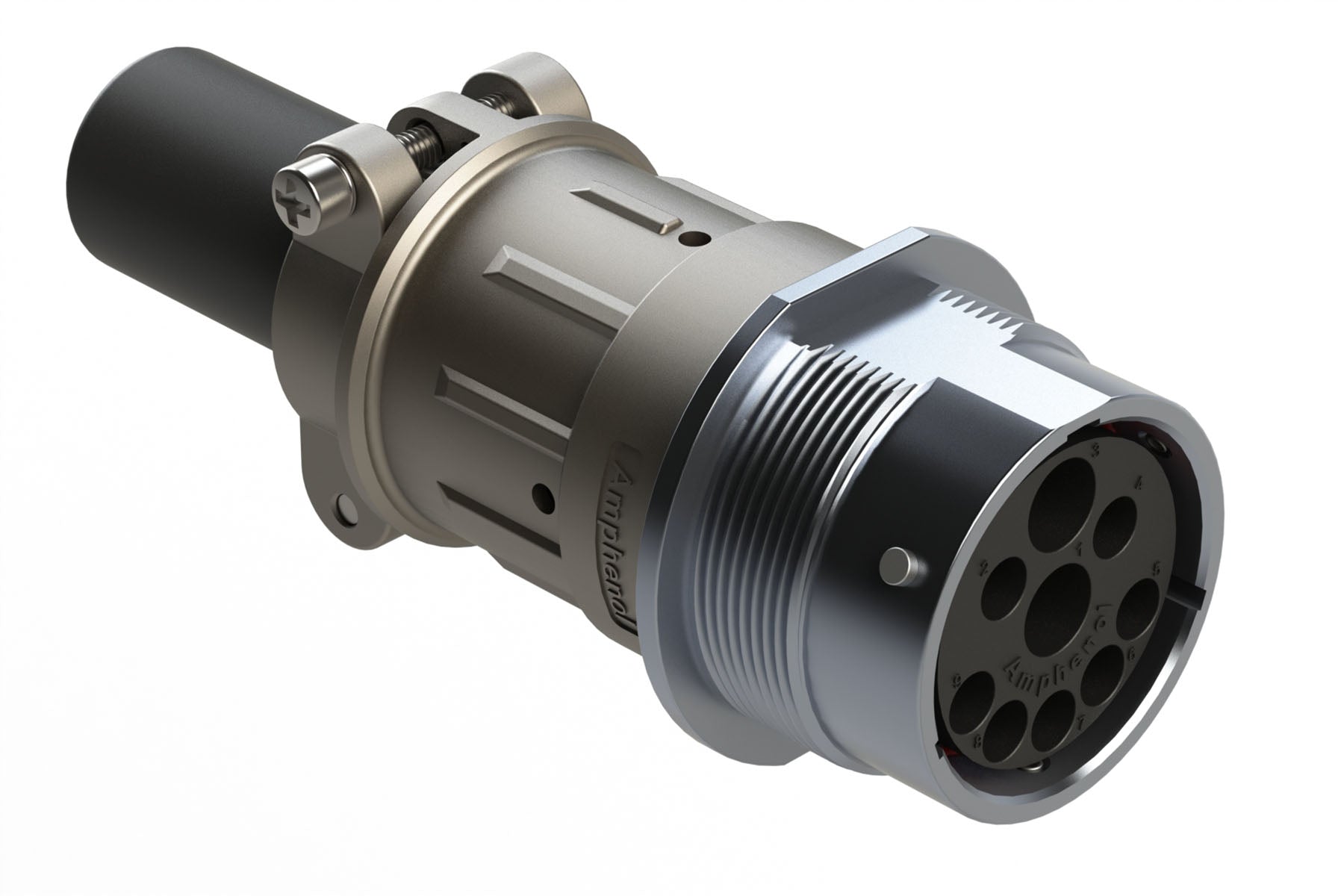

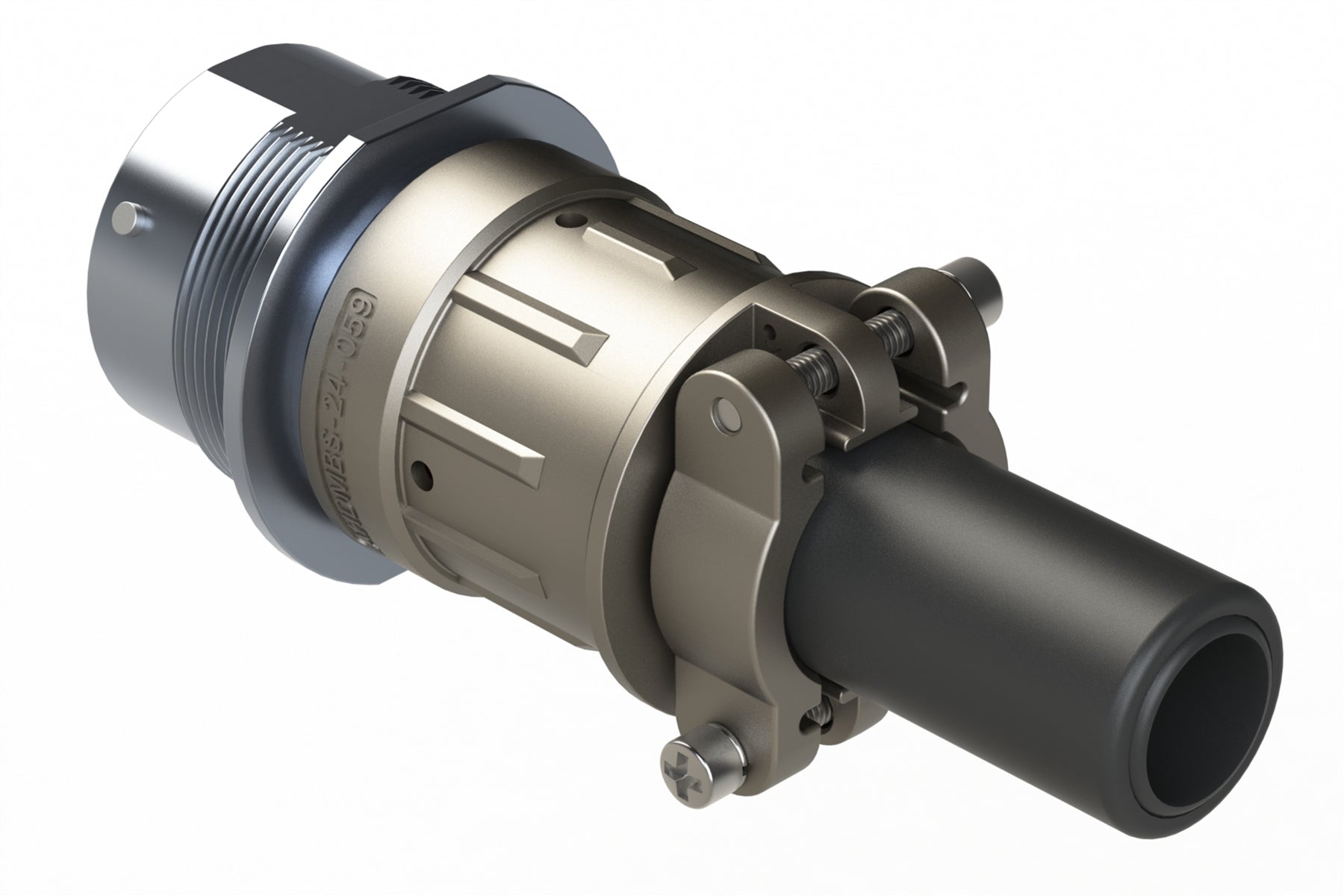

AHDBM04-24-91PR16-059 9 Position ISOBUS Receptacle Kit, Pin, Shell Size 24, Reduced Seal, Wide Thread Adapter (WTA), Cable Clamp Backshell, Break-Away. Note: Use (Size 8) PN# AT60-204-08141-16 contacts for 6AWG/16mm² applications
AHDBM04-24-91PR16-059 9 Position ISOBUS Receptacle Kit, Pin, Shell Size 24, Reduced Seal, Wide Thread Adapter (WTA), Cable Clamp Backshell, Break-Away. Note: Use (Size 8) PN# AT60-204-08141-16 contacts for 6AWG/16mm² applications
IMAGE MAY DIFFER
SKU:AHDBM04-24-91PR16-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 9Gender: Male
Contact Size: 8,12,16
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Aluminium Alloy
Seal Material: Silicone Rubber
Mating Part: AHDBM06-24-91S*
Seal Diameter: 6.50mm (.256") - 7.42mm (.292"), 2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Wire Range: 6AWG,10-14AWG,14-20AWG
Shape: Circular
9 Position ISOBUS Receptacle Kit, Pin, Shell Size 24, Reduced Seal, Wide Thread Adapter (WTA), Cable Clamp Backshell, Break-Away. Note: Use (Size 8) PN# AT60-204-08141-16 contacts for 6AWG/16mm² applications
