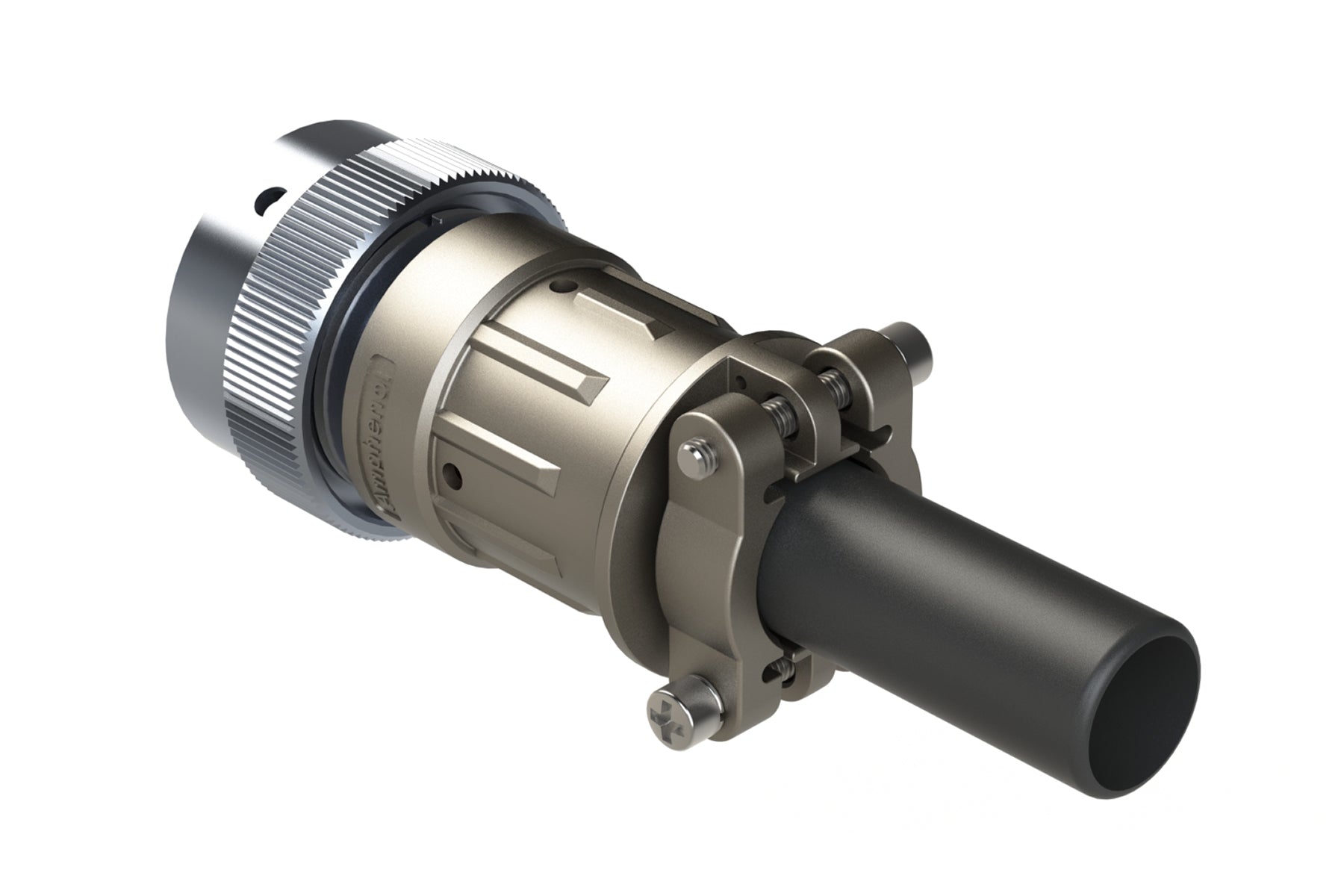

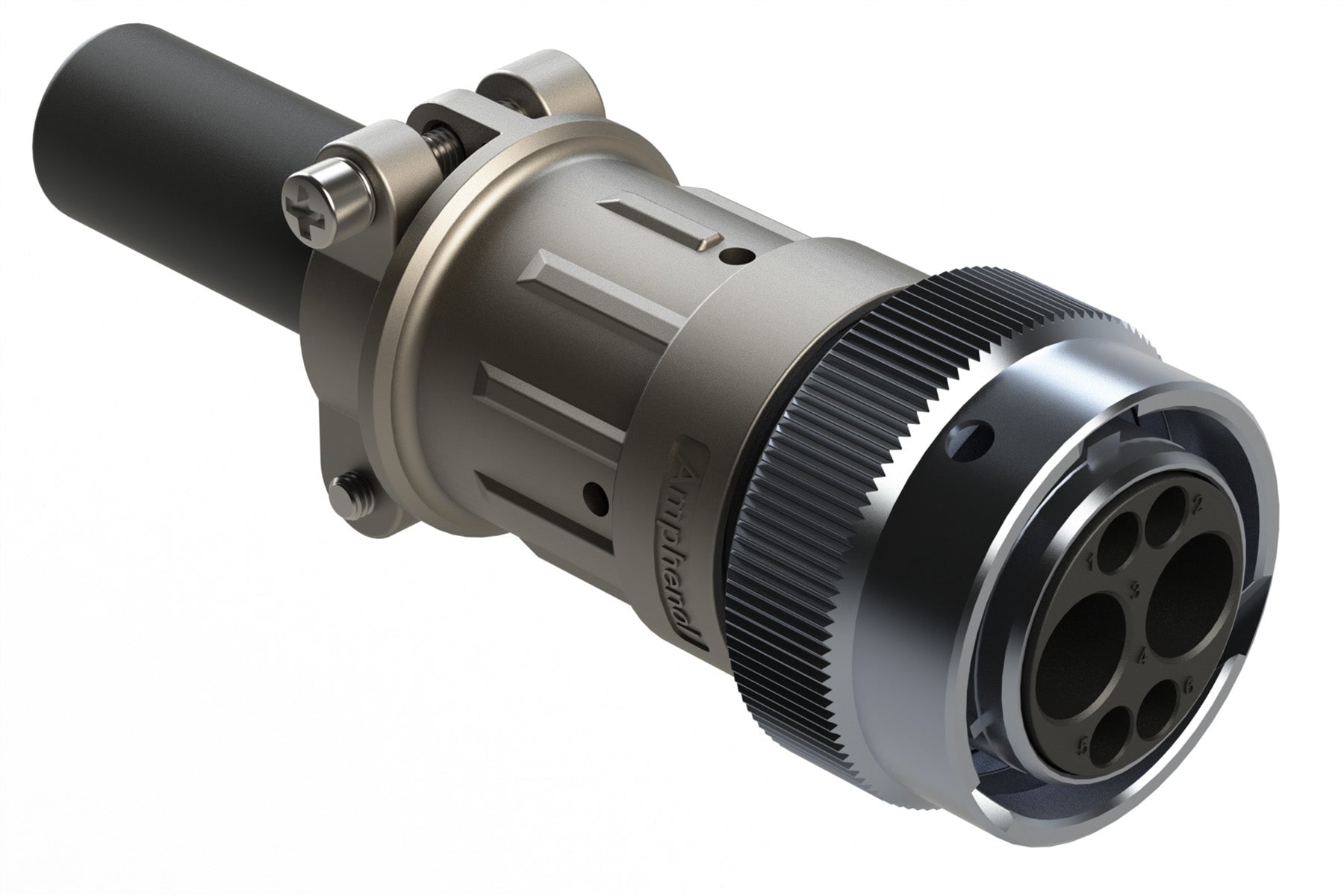

AHDM06-18-06PN-C030-059 2 Position Plug Kit, Shell Size 18, Pin, Wide Thread, Cable Clamp Backshell
AHDM06-18-06PN-C030-059 2 Position Plug Kit, Shell Size 18, Pin, Wide Thread, Cable Clamp Backshell
IMAGE MAY DIFFER
SKU:AHDM06-18-06PN-C030-059
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 2Gender: Male (Reversed)
Contact Size: 4
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM04-18-06S*(* = SEAL TYPE) (C030 OPTION)
Seal Diameter: 6.63 mm (.261")-7.41 mm (.292")
Wire Range: 4-6AWG
Shape: Circular
2 Position Plug Kit, Shell Size 18, Pin, Wide Thread, Cable Clamp Backshell
