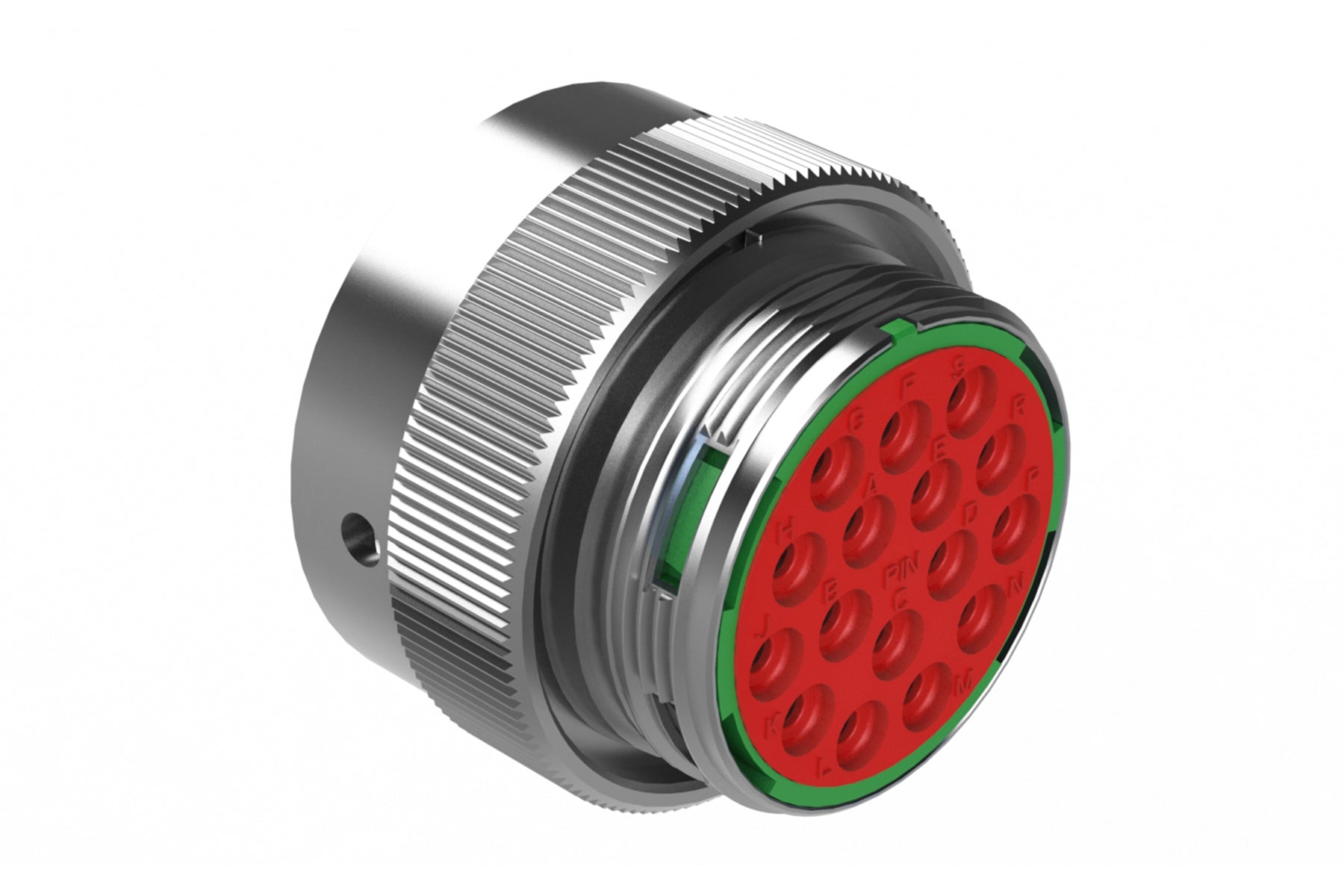

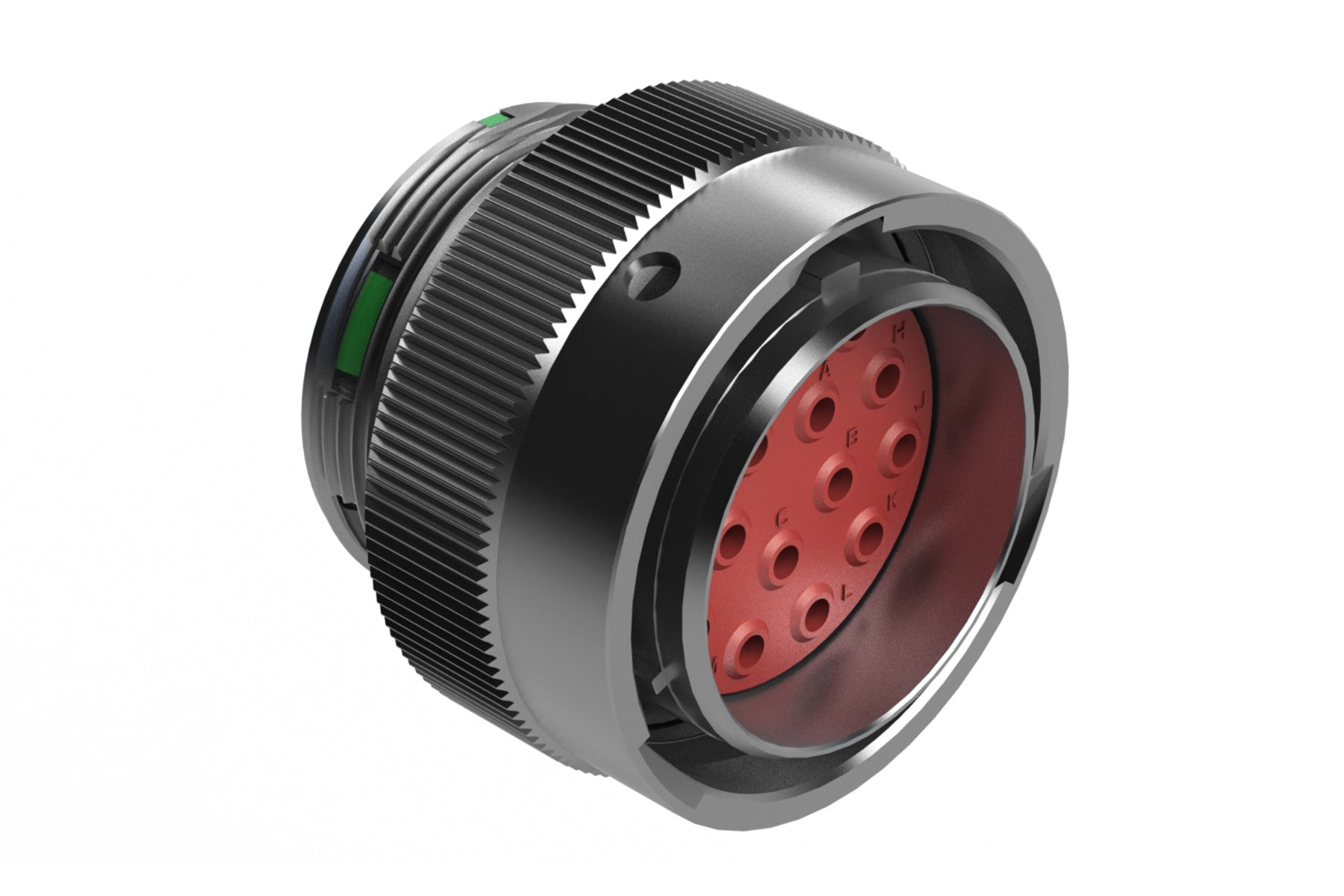

AHDM06-24-16PN 16 Position Plug Kit, Shell Size 24, 16 Position Pin, Standard Seal, Wide Thread. HD36-24-16PN
AHDM06-24-16PN 16 Position Plug Kit, Shell Size 24, 16 Position Pin, Standard Seal, Wide Thread. HD36-24-16PN
IMAGE MAY DIFFER
SKU:AHDM06-24-16PN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 16Gender: Male (Reversed)
Contact Size: 12
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM04-24-16S*
Seal Diameter: 3.40mm (.134") - 4.32mm (.170")
Wire Range: 10-14 AWG (6.0-2.0mm²)
Shape: Circular
16 Position Plug Kit, Shell Size 24, 16 Position Pin, Standard Seal, Wide Thread
