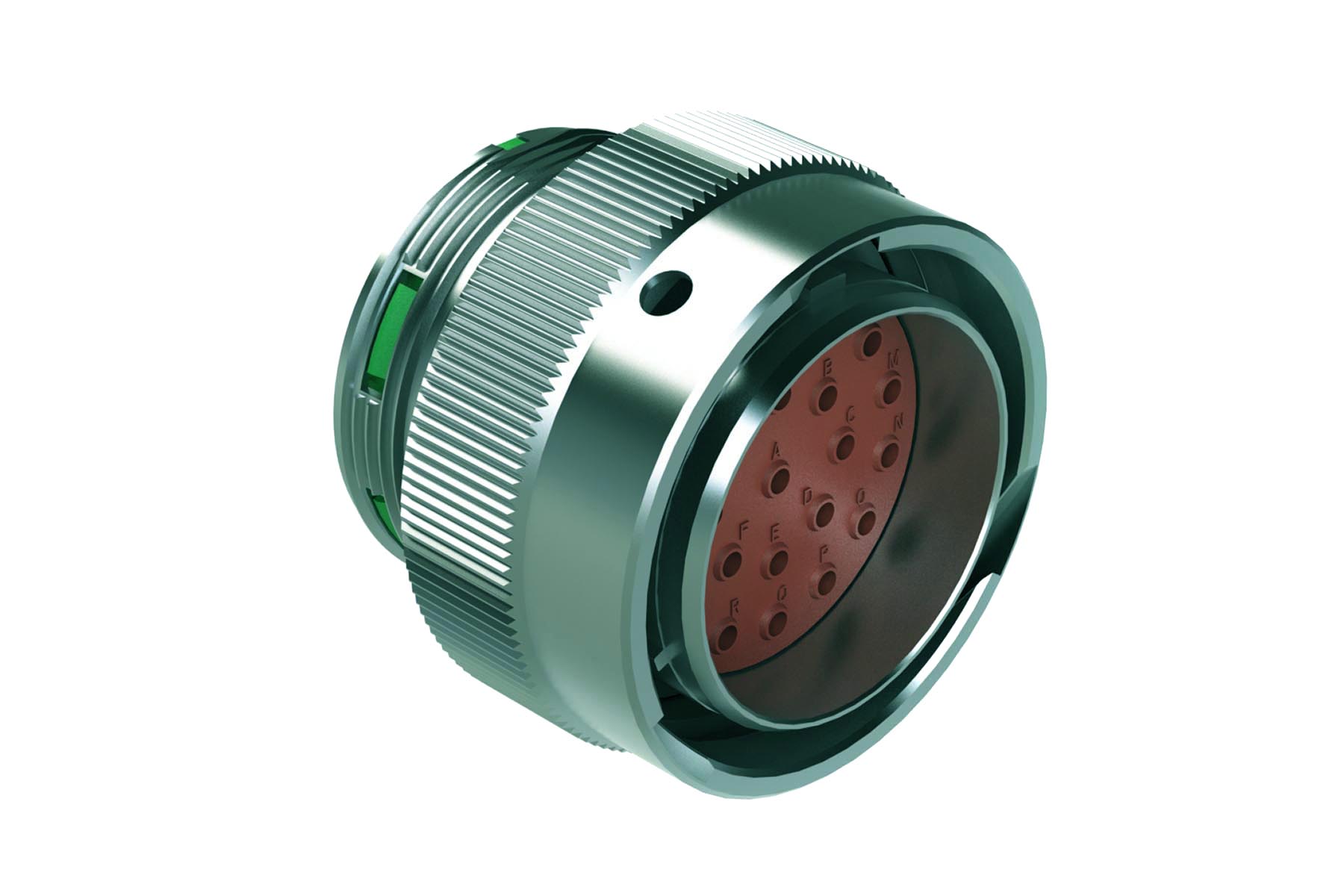

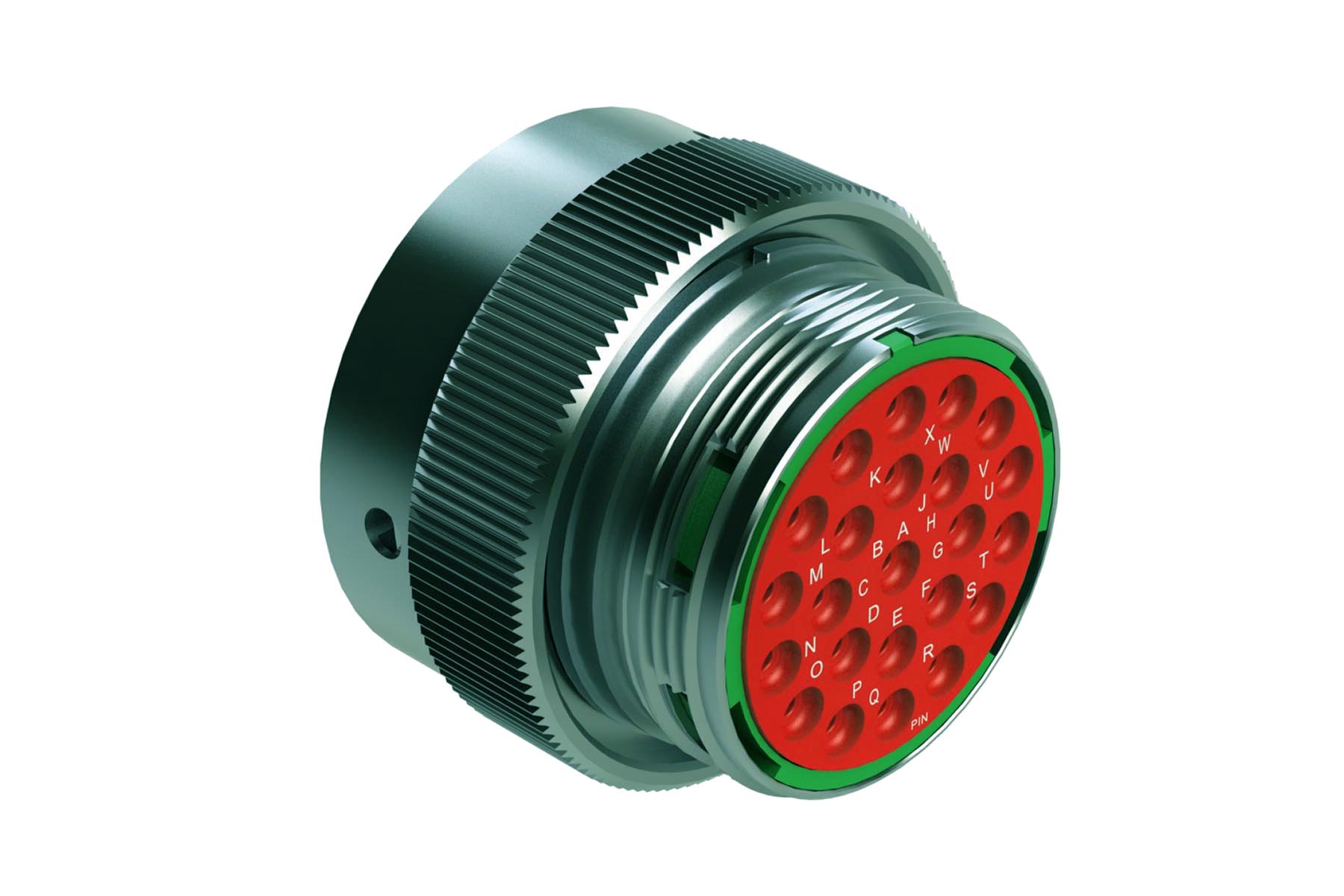

AHDM06-24-23PN 23 Position Plug, Shell Size 24, Pin, Standard Seal, Wide Thread. HD36-24-23PN
AHDM06-24-23PN 23 Position Plug, Shell Size 24, Pin, Standard Seal, Wide Thread. HD36-24-23PN
IMAGE MAY DIFFER
SKU:AHDM06-24-23PN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 23Gender: Male (Reversed)
Contact Size: 16
IP Rating: IP67 / IP69K (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDM04-24-23SN*
Seal Diameter: 2.54mm (.100") - 3.40mm (.134")
Wire Range: 14-20 AWG
Shape: Circular
23 Position Plug, Shell Size 24, Pin, Standard Seal, Wide Thread
