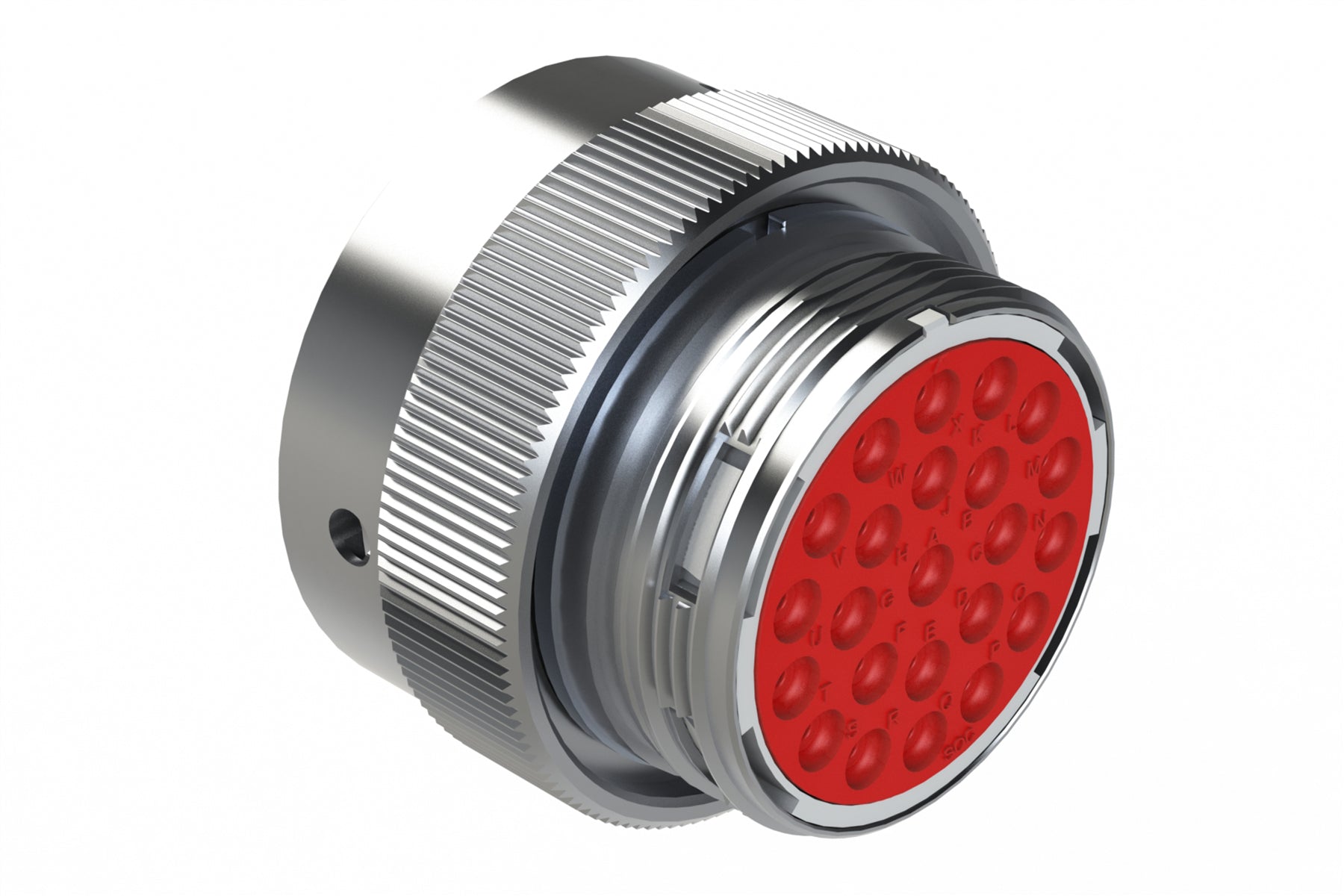

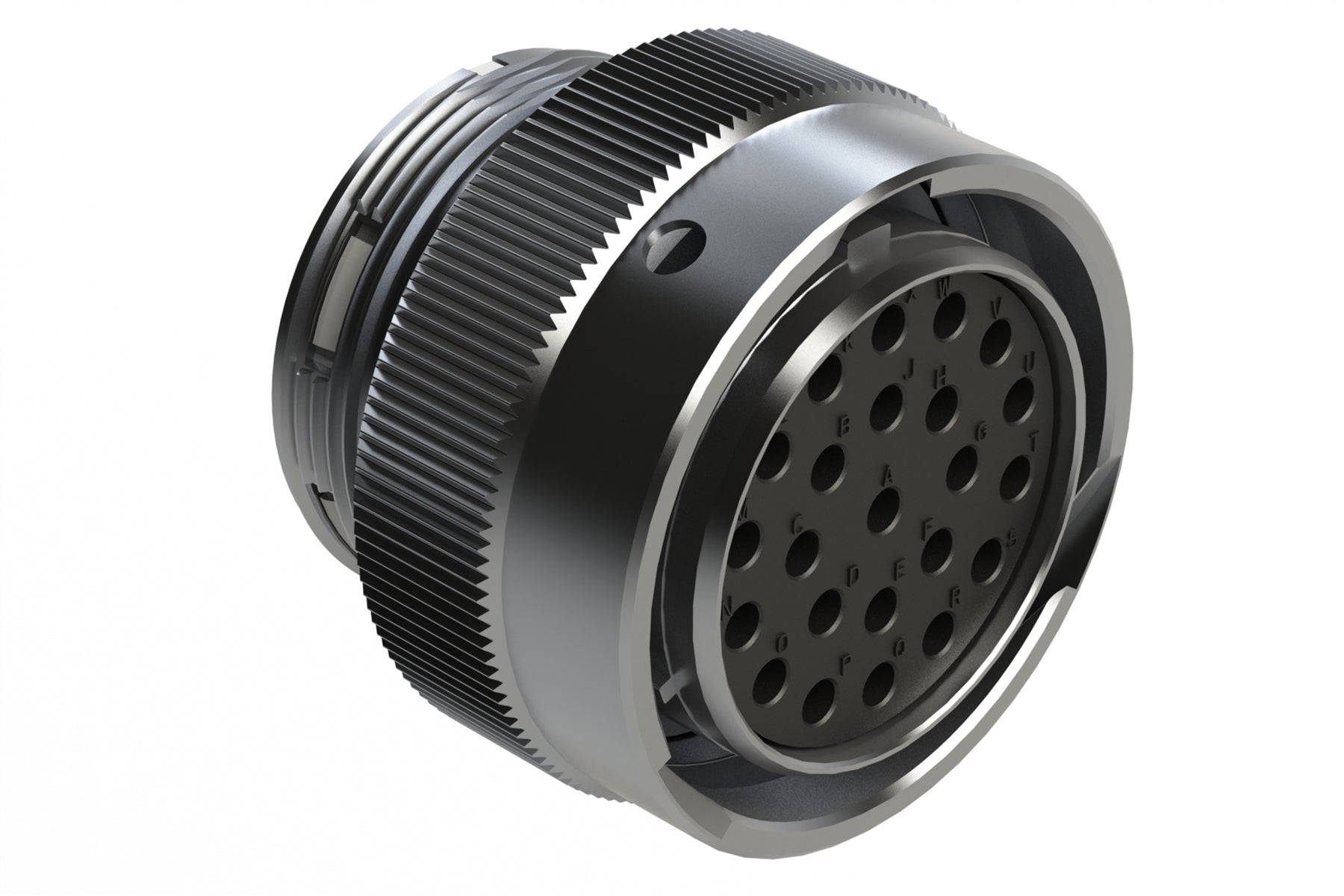

AHDM06-24-23ST 23 Position Plug, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey Adapter). HD36-24-23ST
AHDM06-24-23ST 23 Position Plug, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey Adapter). HD36-24-23ST
IMAGE MAY DIFFER
SKU:AHDM06-24-23ST
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 23Gender: Female
Contact Size: 16
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy, Nickel Plated
Seal Material: Silicone Rubber
Mating Part: AHDP04-24-23P* & AHDP02-24-23P*
Seal Diameter: 2.23mm (.088") - 2.69mm (.106")
Wire Range: 14-20 AWG
Shape: Circular
23 Position Plug, Socket, Shell Size 24, Metal, Thin Diameter Seal (Grey Adapter)
