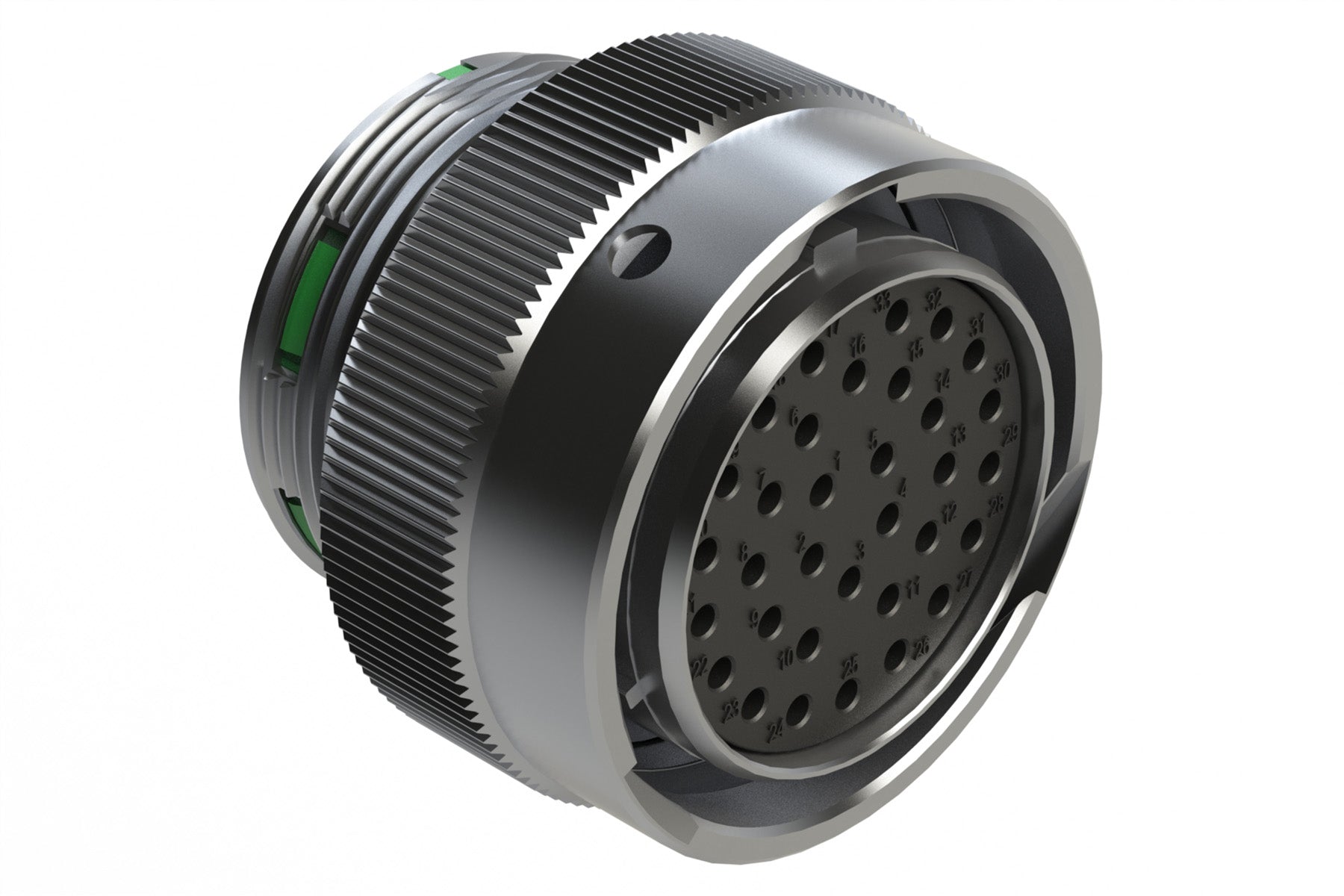

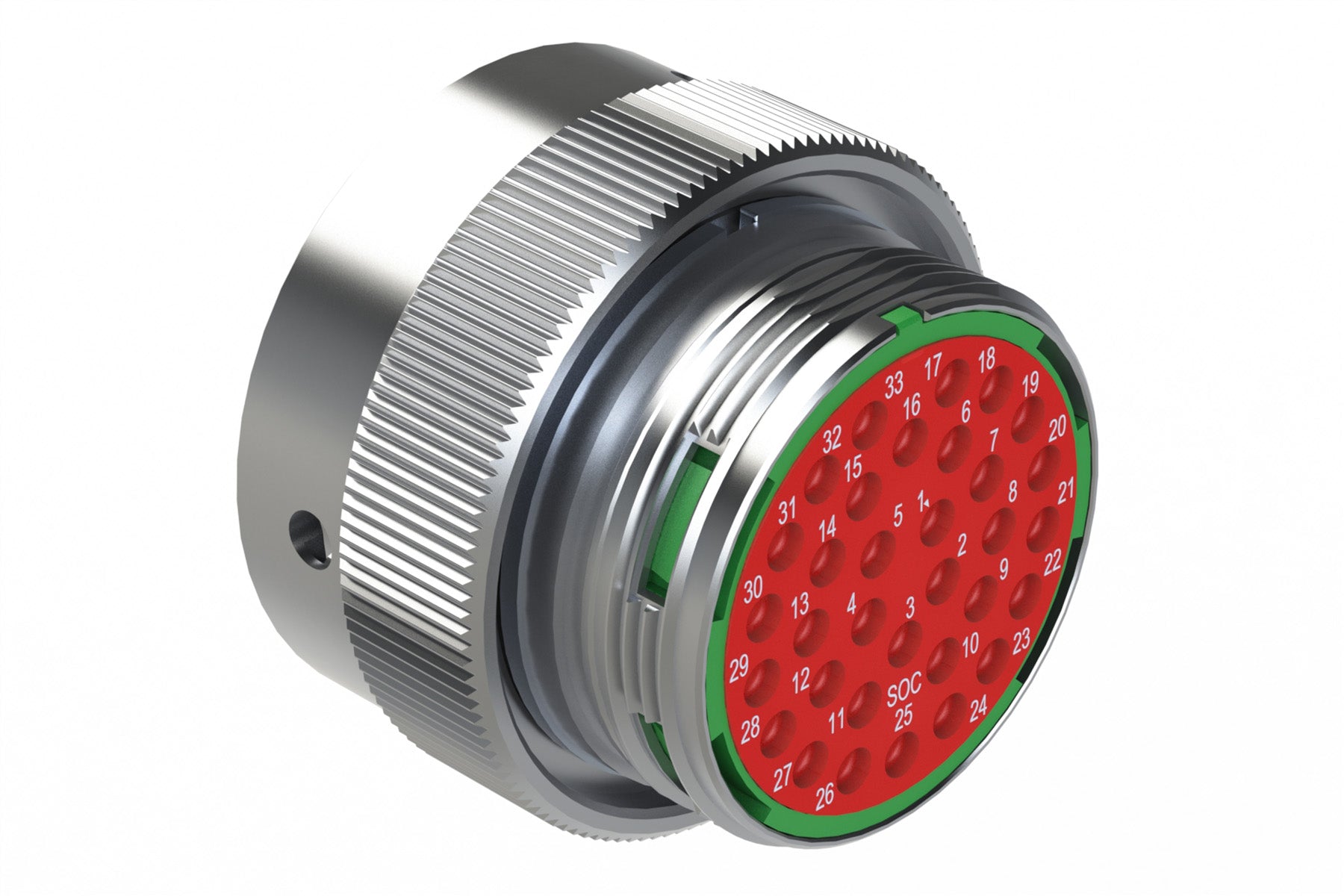

AHDM06-24-33SN 33 Position Plug, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring). HD36-24-33SN
AHDM06-24-33SN 33 Position Plug, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring). HD36-24-33SN
IMAGE MAY DIFFER
SKU:AHDM06-24-33SN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 33Gender: Female
Contact Size: 20
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Zinc Alloy
Seal Material: Silicone Rubber
Mating Part: AHDM04-24-33P*
Seal Diameter: 1.02mm (.040") - 2.41mm (.095")
Wire Range: 16-22 AWG (1.5-0.35mm²)
Shape: Circular
33 Position Plug, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal, Integrated Wide Thread (Green Retaining Ring)
