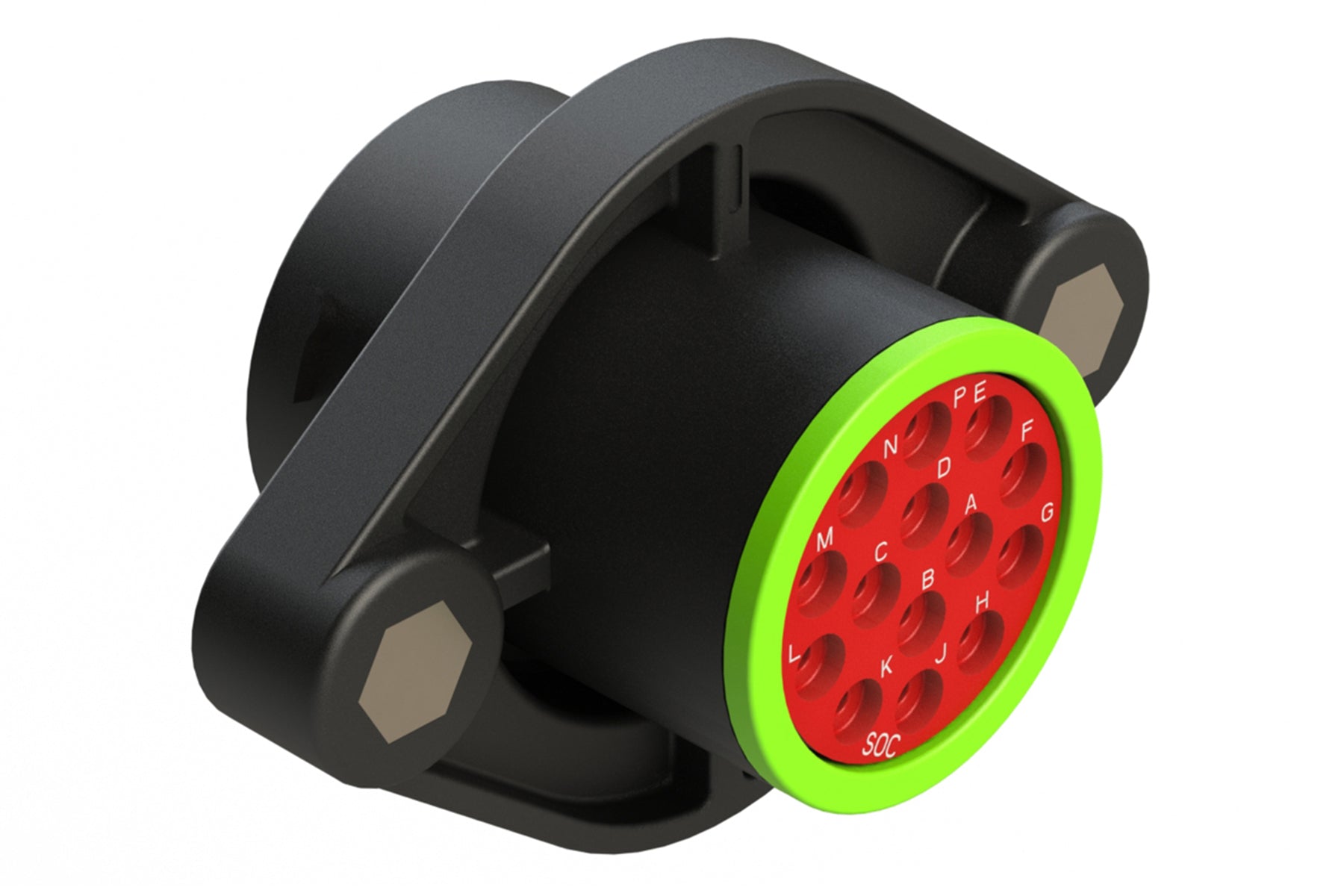

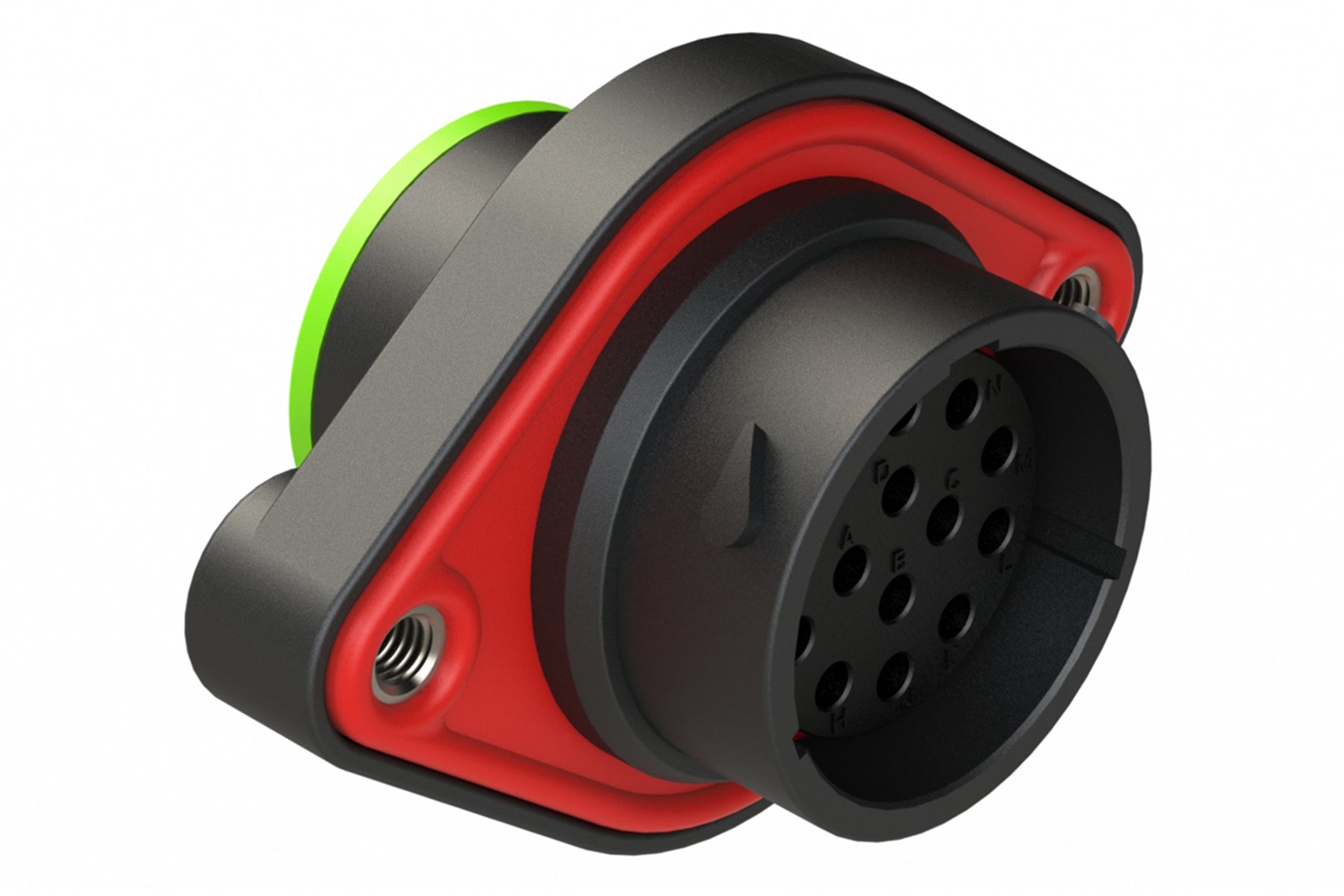

AHDP02-18-14SN-SRA 14 Position Sealed Panel Mount Receptacle, Socket, Shell Size 18, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter
AHDP02-18-14SN-SRA 14 Position Sealed Panel Mount Receptacle, Socket, Shell Size 18, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-18-14SN-SRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 14Gender: Female (Reversed)
Contact Size: 16
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-18-14P*
Seal Diameter: 2.54mm (.100") - 3.40mm (.134")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Circular
14 Position Sealed Panel Mount Receptacle, Socket, Shell Size 18, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter
