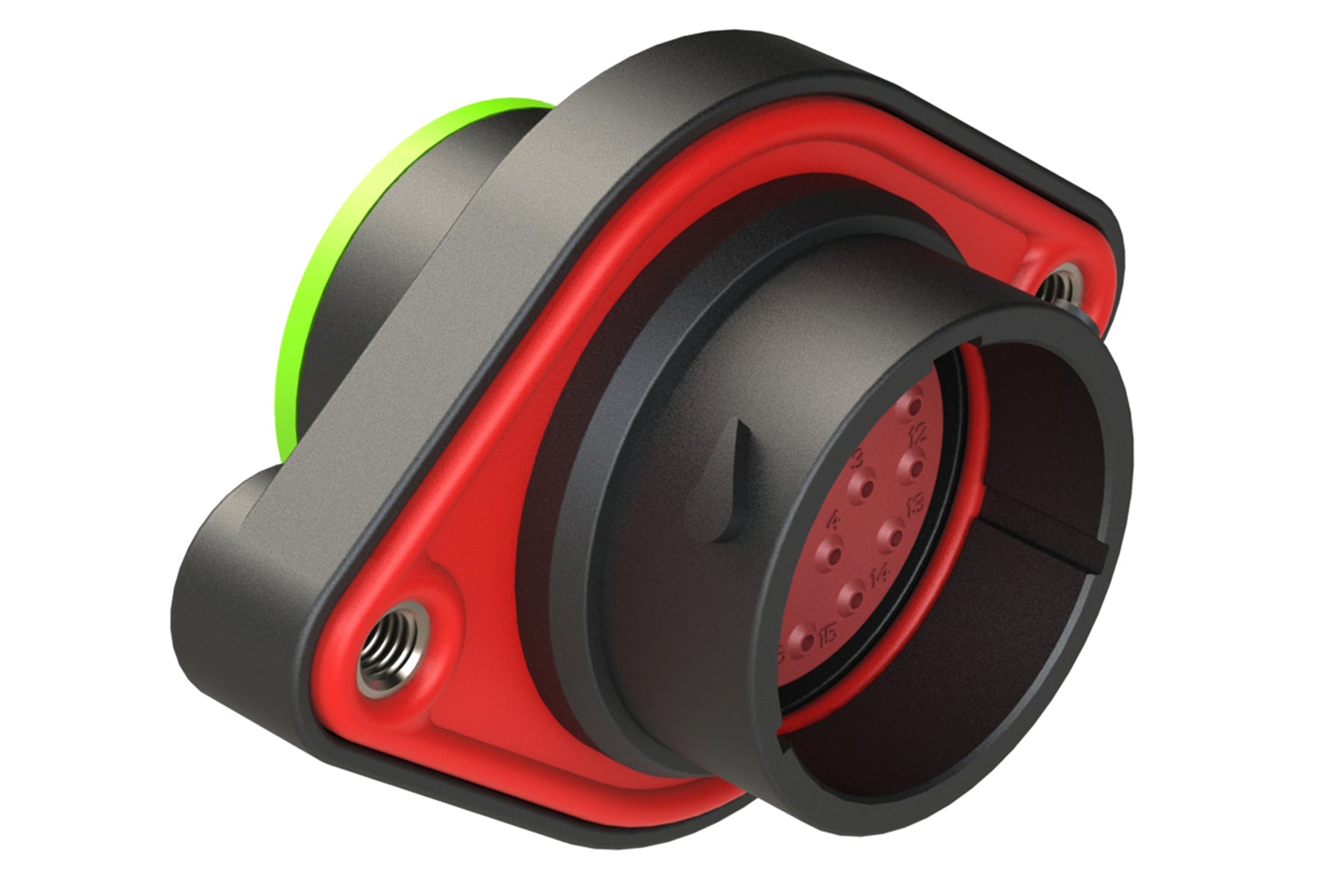

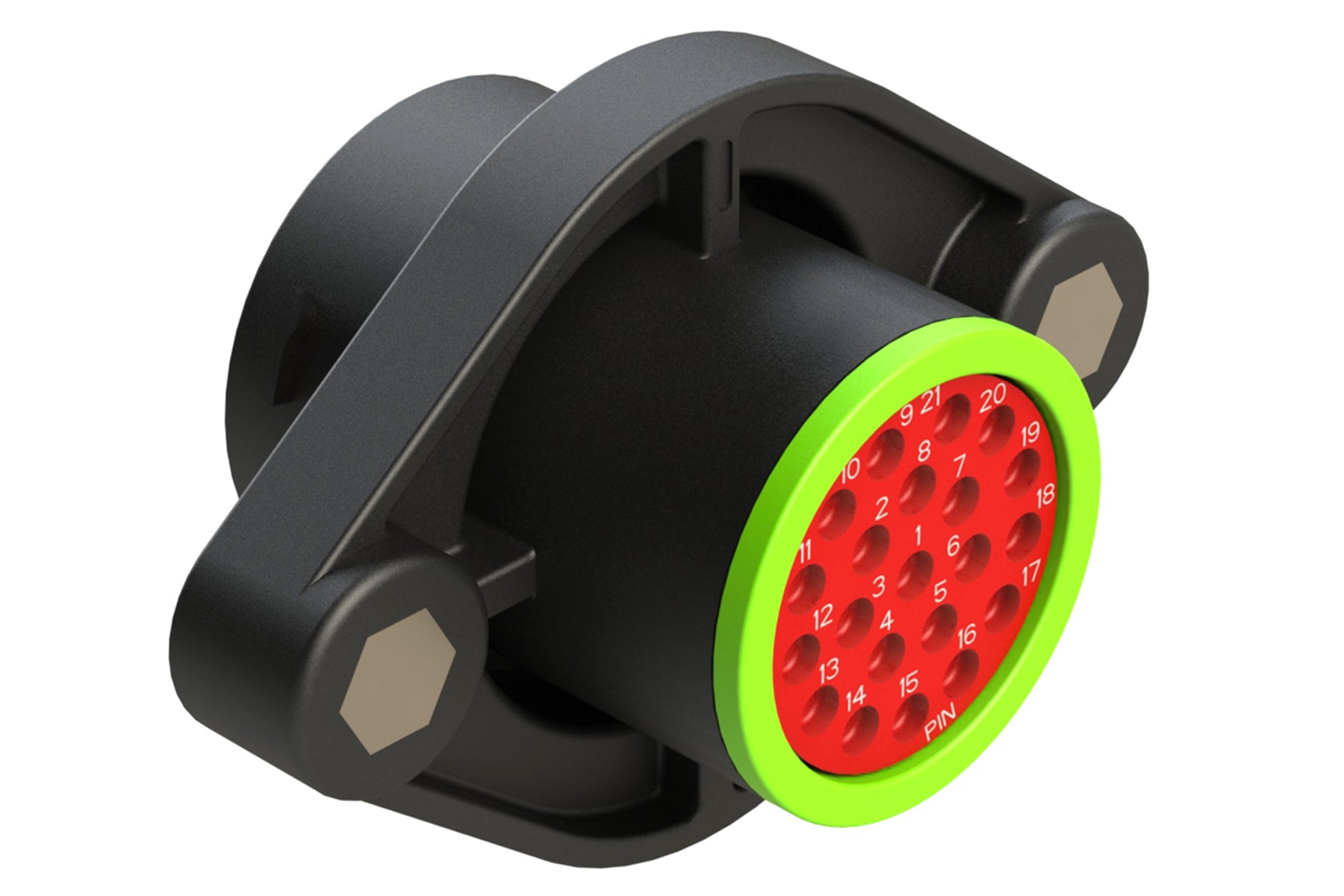

AHDP02-18-21PN-SRA 21 Position Sealed Panel Mount Receptacle, Pin, Shell Size 18, Normal Diameter Sea (Green Adapter)l, Smooth Ring Adapter
AHDP02-18-21PN-SRA 21 Position Sealed Panel Mount Receptacle, Pin, Shell Size 18, Normal Diameter Sea (Green Adapter)l, Smooth Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-18-21PN-SRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 21Gender: Male (Standard)
Contact Size: 20
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-18-21S*
Seal Diameter: 1.02mm (.040") - 2.41mm (.095")
Wire Range: 16-22 AWG (1.5-0.5mm²)
Shape: Circular
21 Position Sealed Panel Mount Receptacle, Pin, Shell Size 18, Normal Diameter Sea (Green Adapter)l, Smooth Ring Adapter
