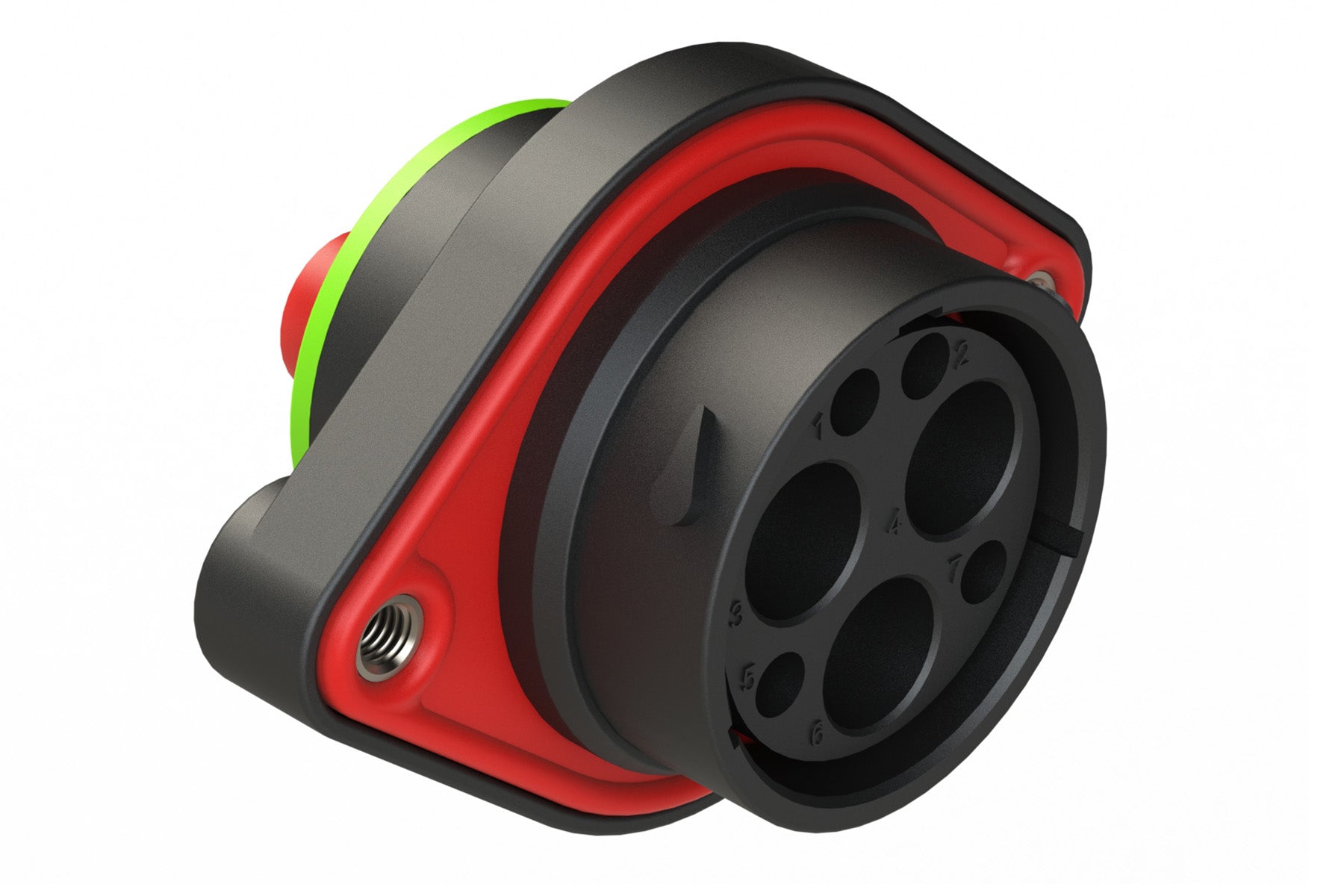

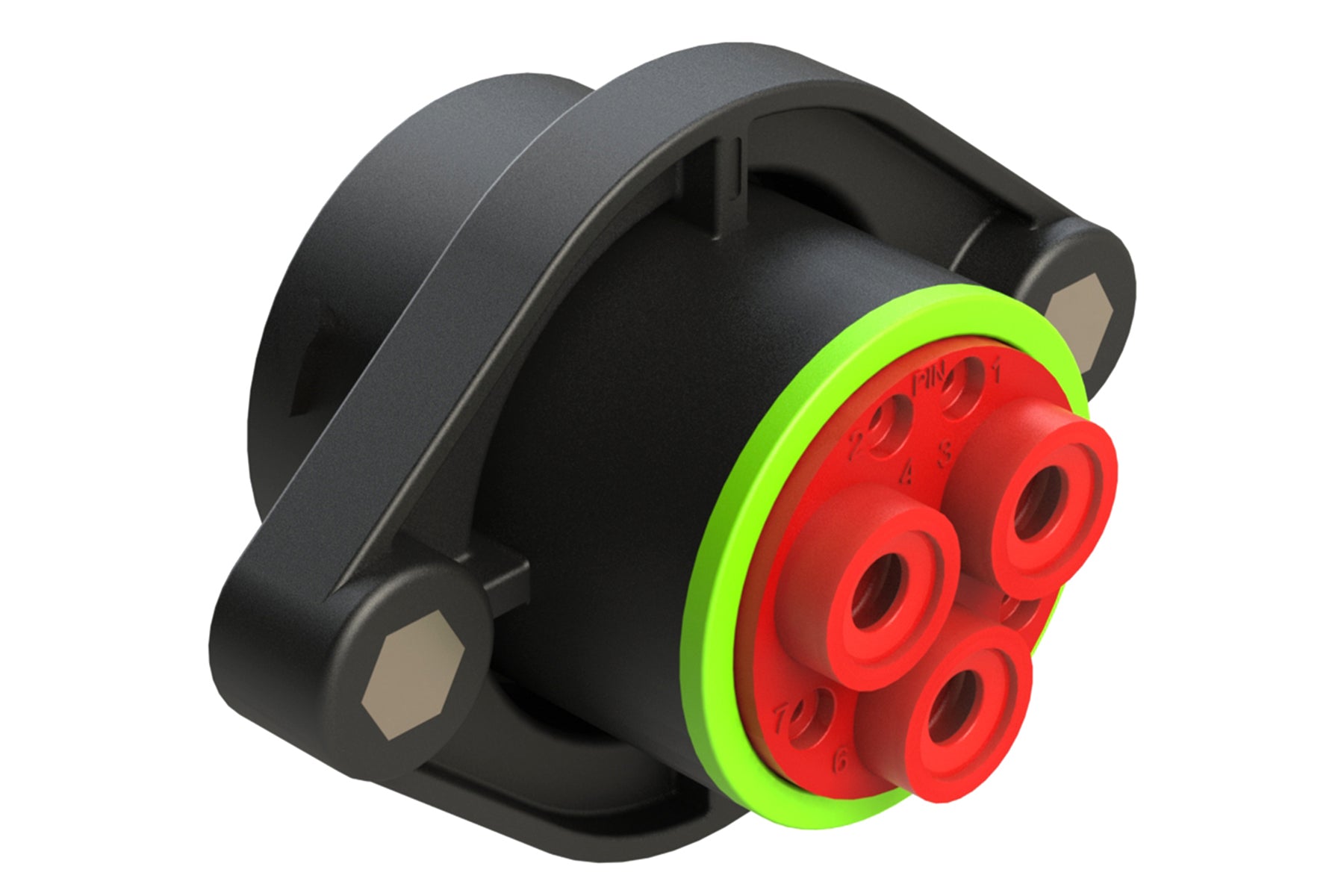

AHDP02-24-07PN-SRACL22 7 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter
AHDP02-24-07PN-SRACL22 7 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-07PN-SRACL22
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 7Gender: Male (Standard)
Contact Size: 4,16
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-07S*CL22
Seal Diameter: 7.90mm (.311") - 10.67mm (.420") / 2.54mm (.100") -3.40mm (.134")
Wire Range: 4 AWG (25.0-21.0 mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
7 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Smooth Ring Adapter
