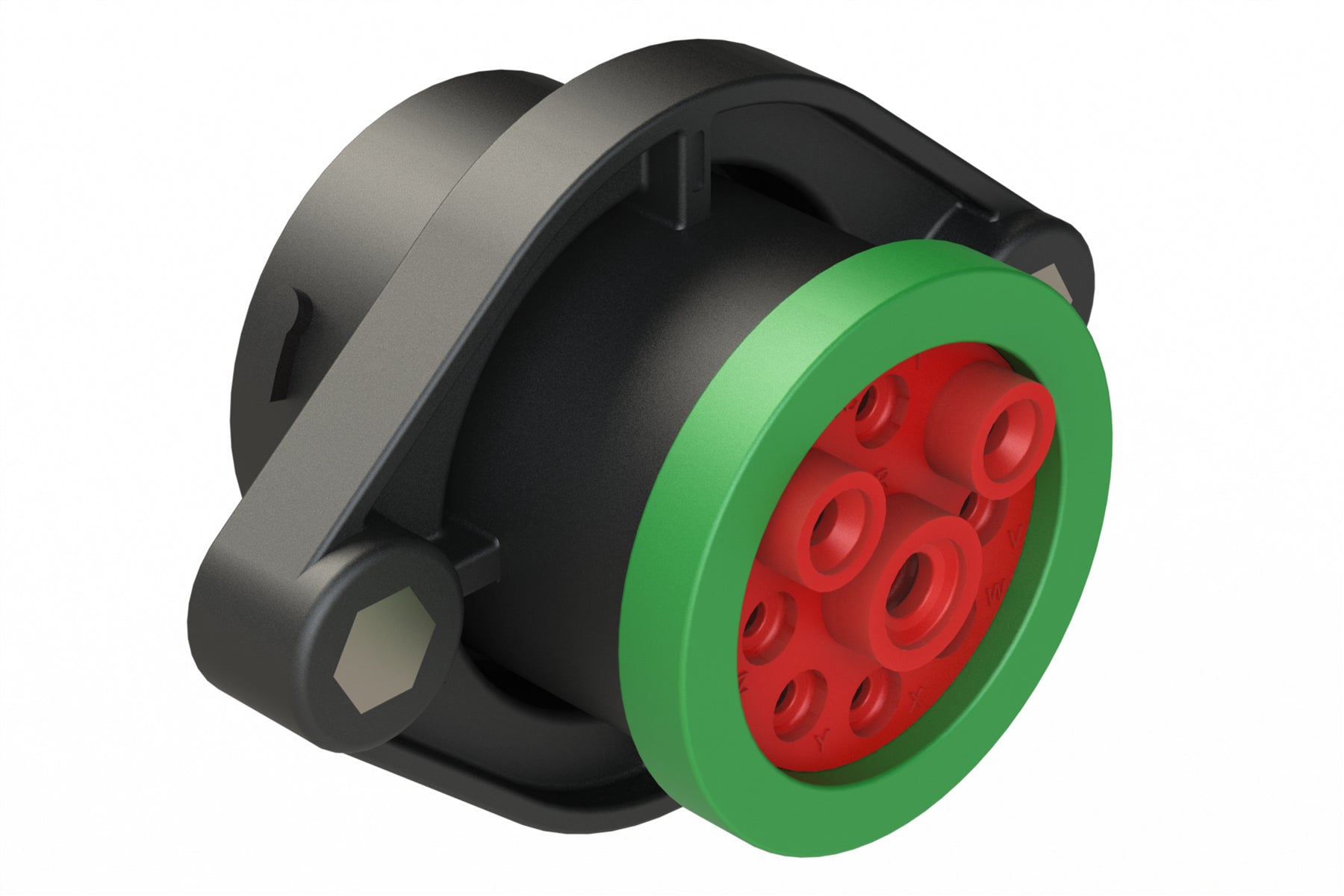

AHDP02-24-09SN-BRA 9 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
AHDP02-24-09SN-BRA 9 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-09SN-BRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 9Gender: Female
Contact Size: 4,8,12
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-09P*
Seal Diameter: 6.63 mm (.261") - 7.42 mm (.292"), 4.83 mm (.190") - 6.10 mm (.240"), 3.43 mm (.135") - 4.32 mm (.170")
Wire Range: 6 AWG (16.0-13.0mm²), 8-10 AWG (10.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
Shape: Circular
9 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
