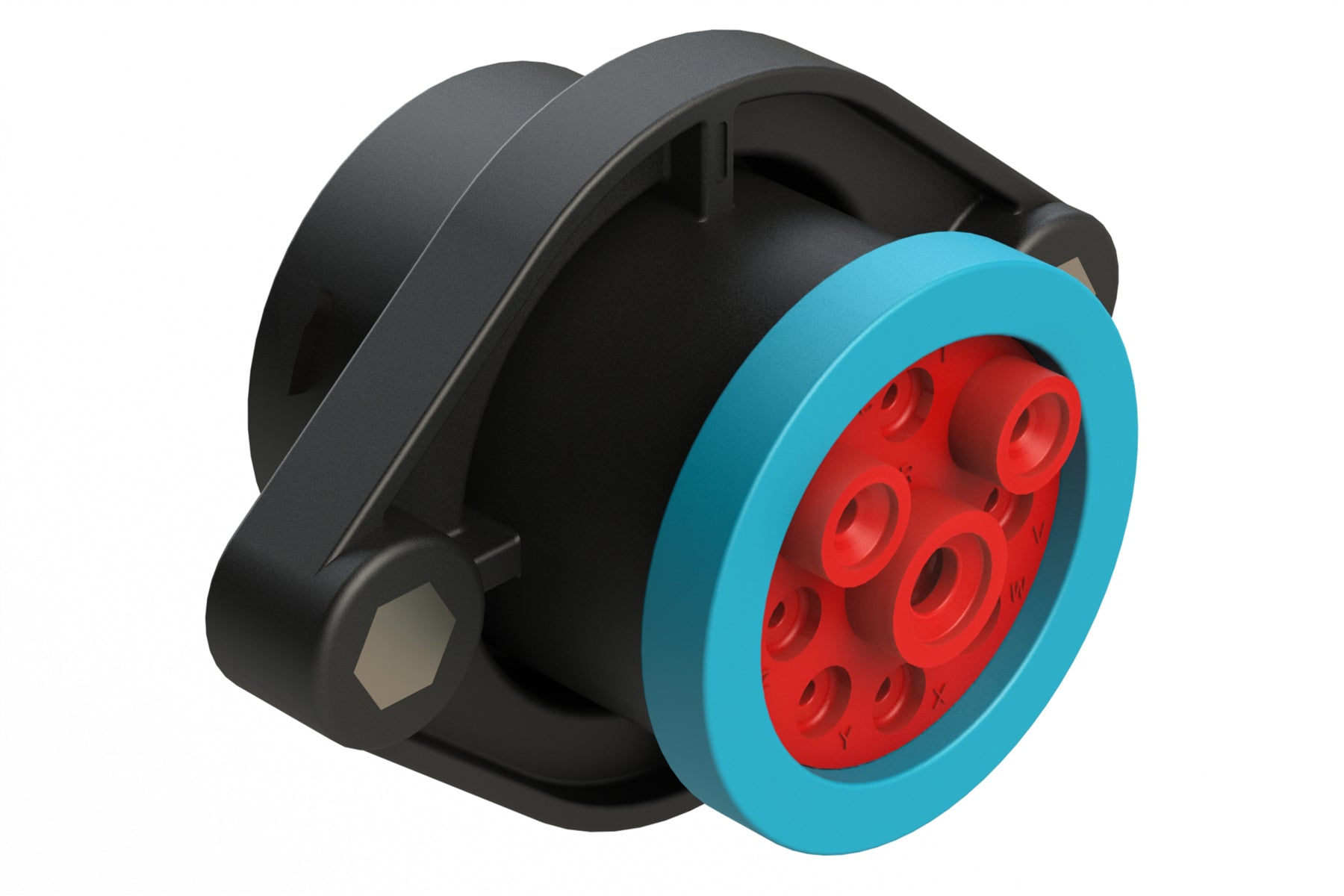

AHDP02-24-09SR-BRA 9 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter Adapter), Backshell Ring Adapter
AHDP02-24-09SR-BRA 9 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter Adapter), Backshell Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-09SR-BRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 9Gender: Female (Reversed)
Contact Size: 4,8,12
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-09P*
Seal Diameter: 6.63mm (.261") -7.42mm (.292") / 3.43mm (.135") - 5.59mm (.220") / 2.46mm (.097") - 4.01mm (.158")
Wire Range: 6 AWG (16.0-13.0mm²), 8-10 AWG (10.0-5.0mm²), 10-14 AWG (6.0-2.0mm²)
Shape: Circular
9 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter Adapter), Backshell Ring Adapter
