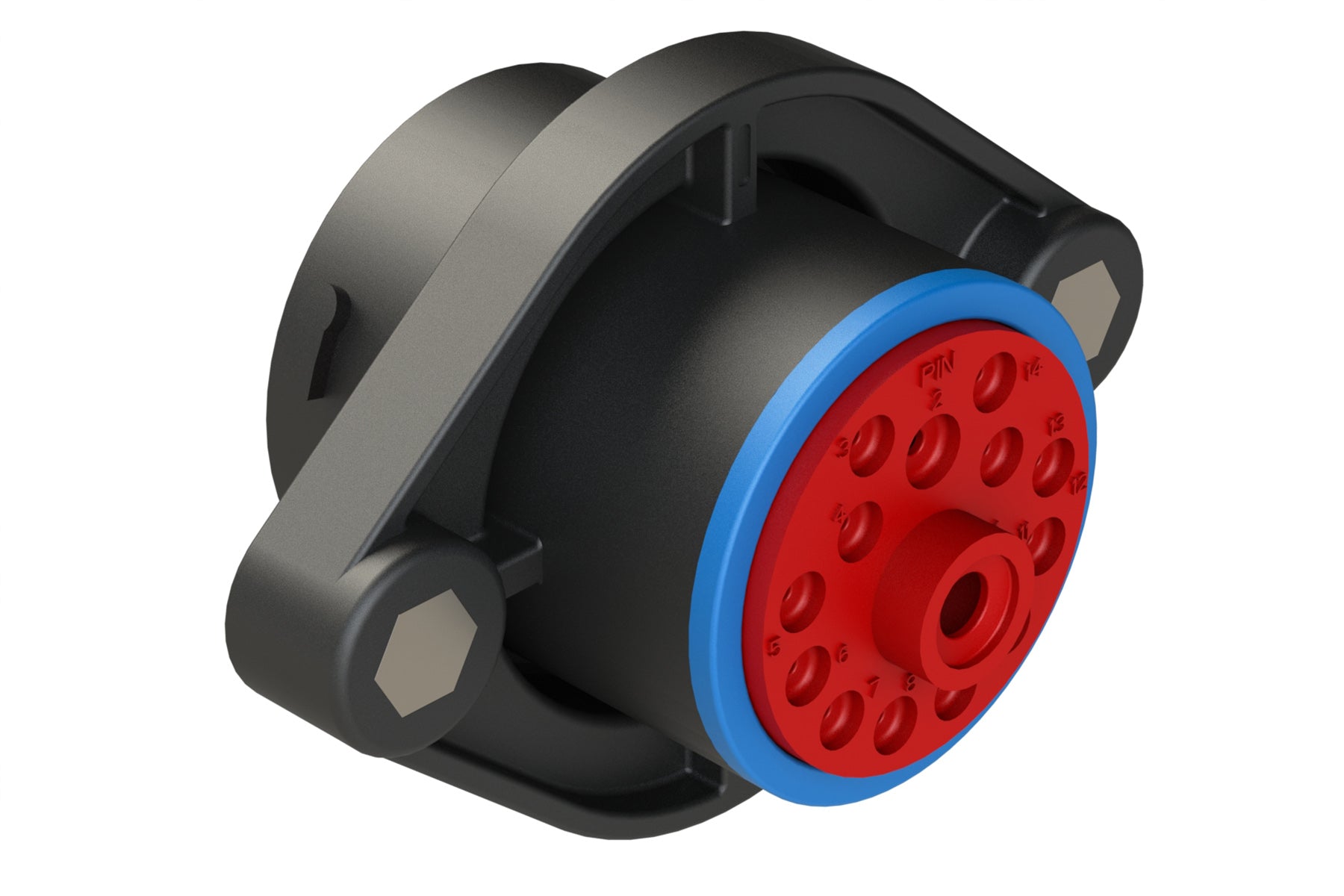

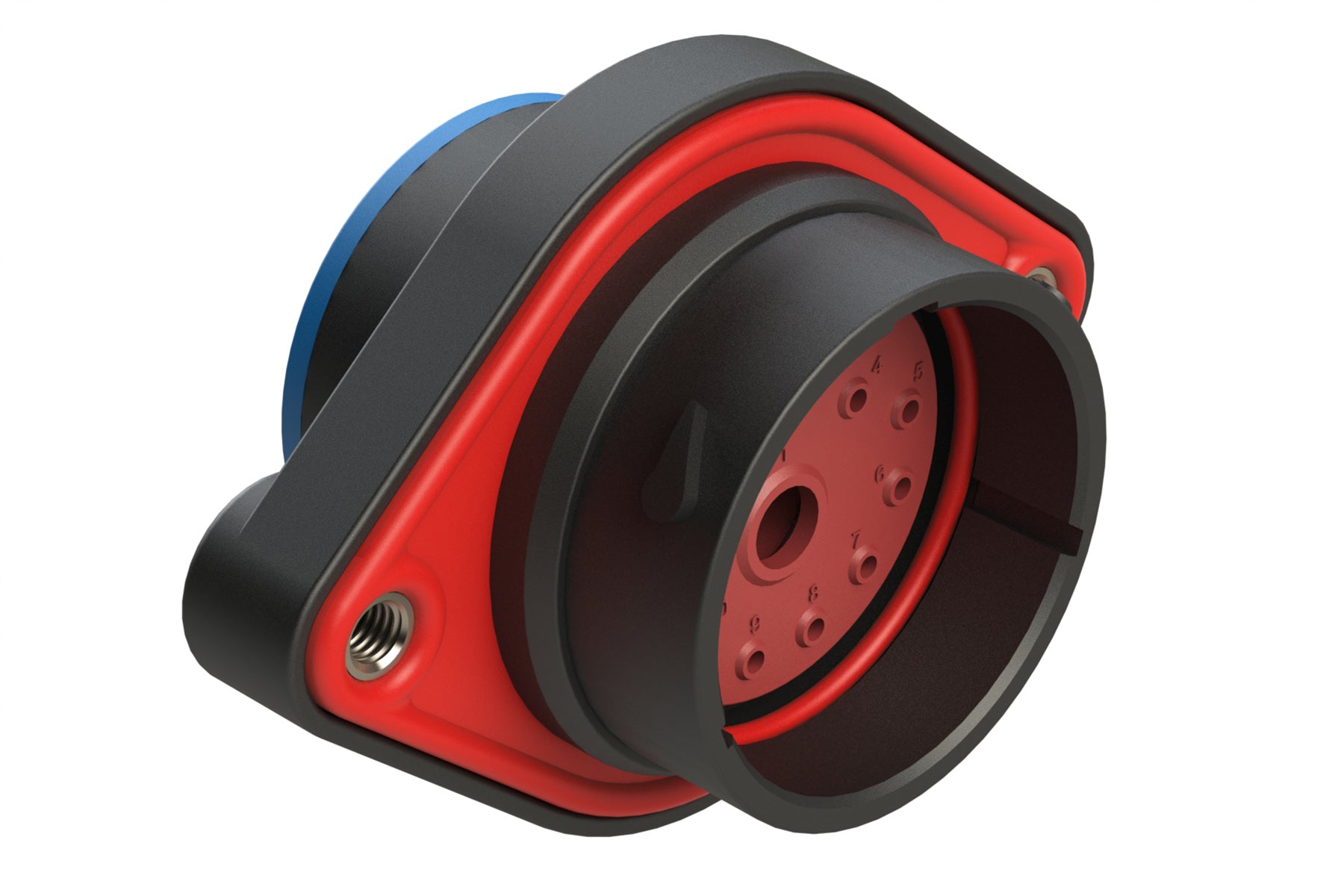

AHDP02-24-14PR-SRA 14 Position Panel Mount Receptacle, Pin, Shell Size 24, Smooth Ring Adapter
AHDP02-24-14PR-SRA 14 Position Panel Mount Receptacle, Pin, Shell Size 24, Smooth Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-14PR-SRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 14Gender: Male
Contact Size: 4,12,16
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-14S*
Seal Diameter: 6.63 mm (.261 in) - 7.41 mm (.292 in), 2.46 mm (.135 in) - 4.01 mm (.158 in), 1.35 mm (.053 in) - 3.05 mm (.120 in)
Wire Range: 6 AWG (16.0-13.0mm²), 10-14 AWG (6.0-2.0mm²),14-20 AWG (2.0-0.5mm²)
Shape: Circular
14 Position Panel Mount Receptacle, Pin, Shell Size 24, Smooth Ring Adapter
