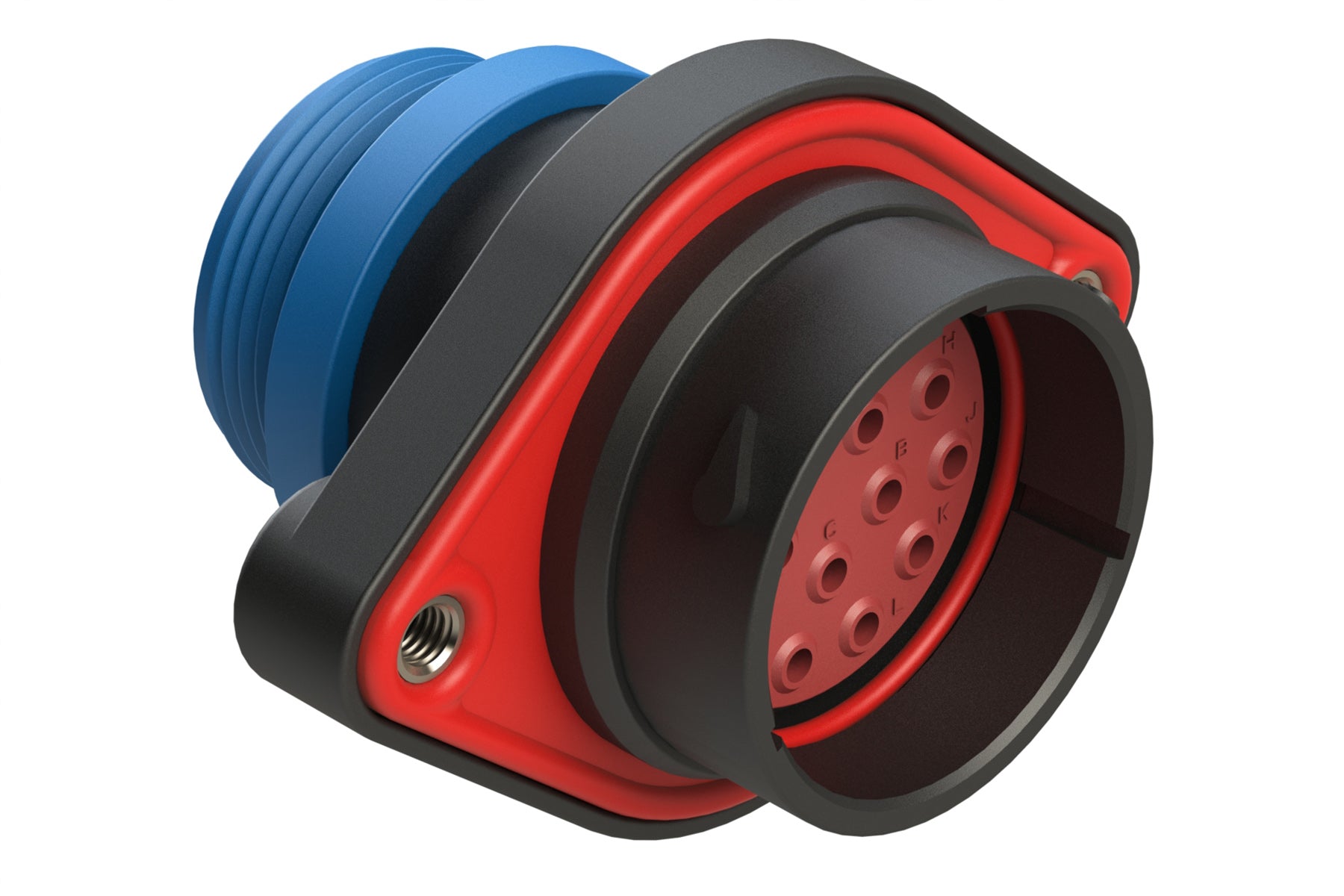

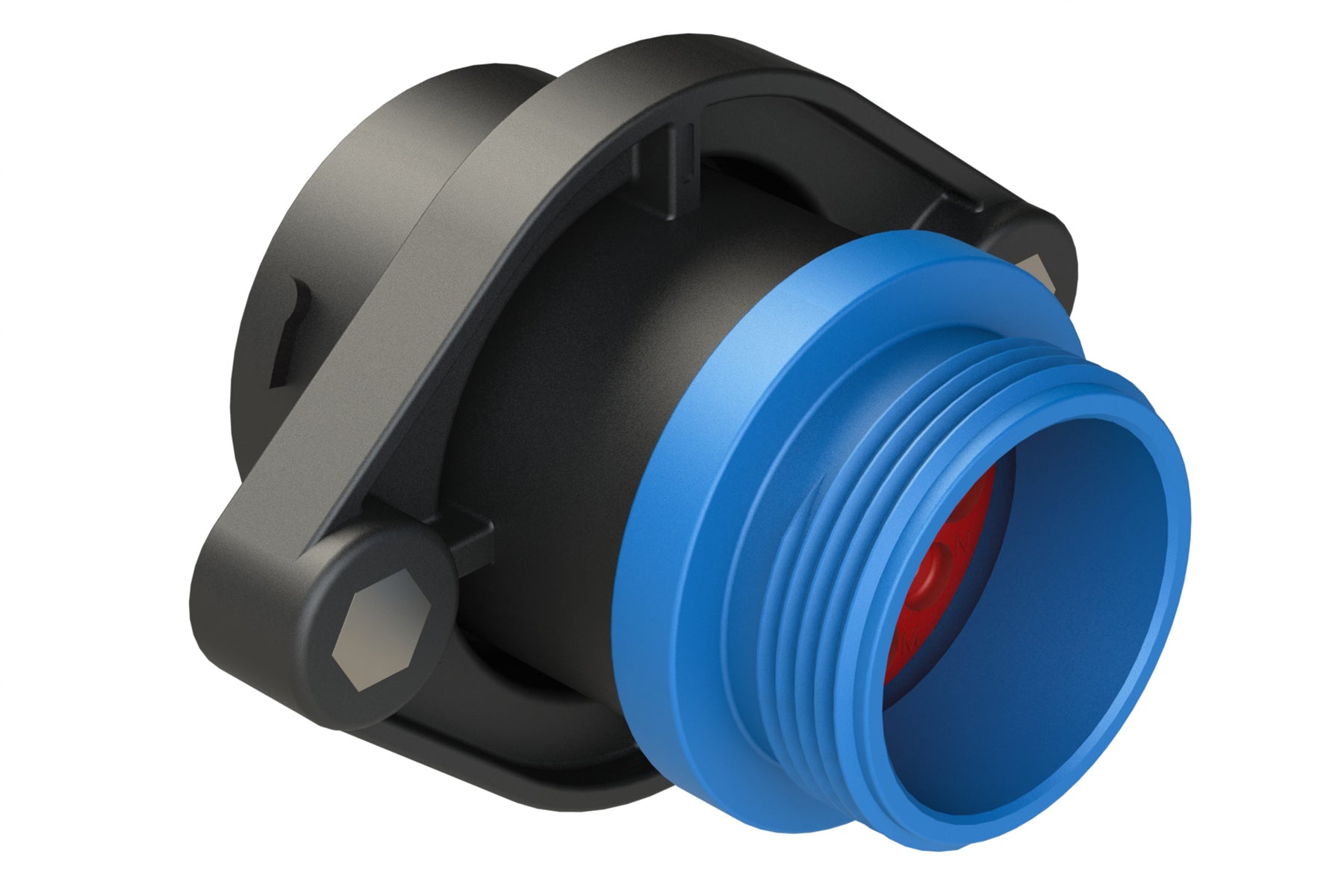

AHDP02-24-16PR-STA 16 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter
AHDP02-24-16PR-STA 16 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-16PR-STA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 16Gender: Male
Contact Size: 12
Colour: Black
IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-16S*
Seal Diameter: 2.46mm (.097") - 4.01mm (.158")
Wire Range: 10-14 AWG (6.0-2.0mm²)
Shape: Circular
16 Position Panel Mount Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Small Thread Adapter
