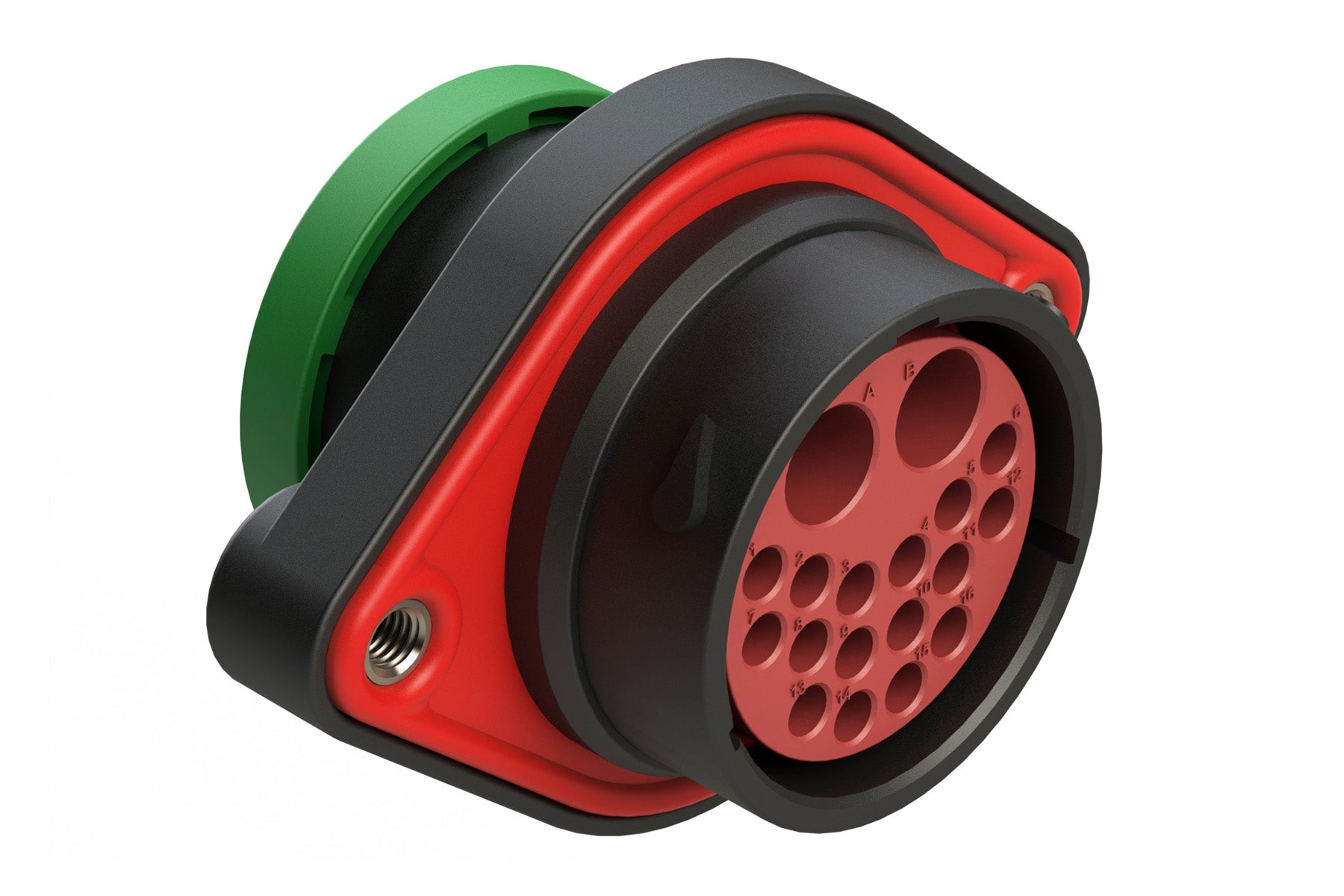

AHDP02-24-18PN-BRACL82 18 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
AHDP02-24-18PN-BRACL82 18 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-18PN-BRACL82
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 18Gender: Male
Contact Size: 20,8
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, mated condition) & IP69k (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-18S*-BRACL82
Seal Diameter: 1.02mm (.040") - 2.41mm (.095") / 3.43mm (.135") - 5.59mm (.220")
Wire Range: 16-22, 8-10 AWG
Shape: Circular
18 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
