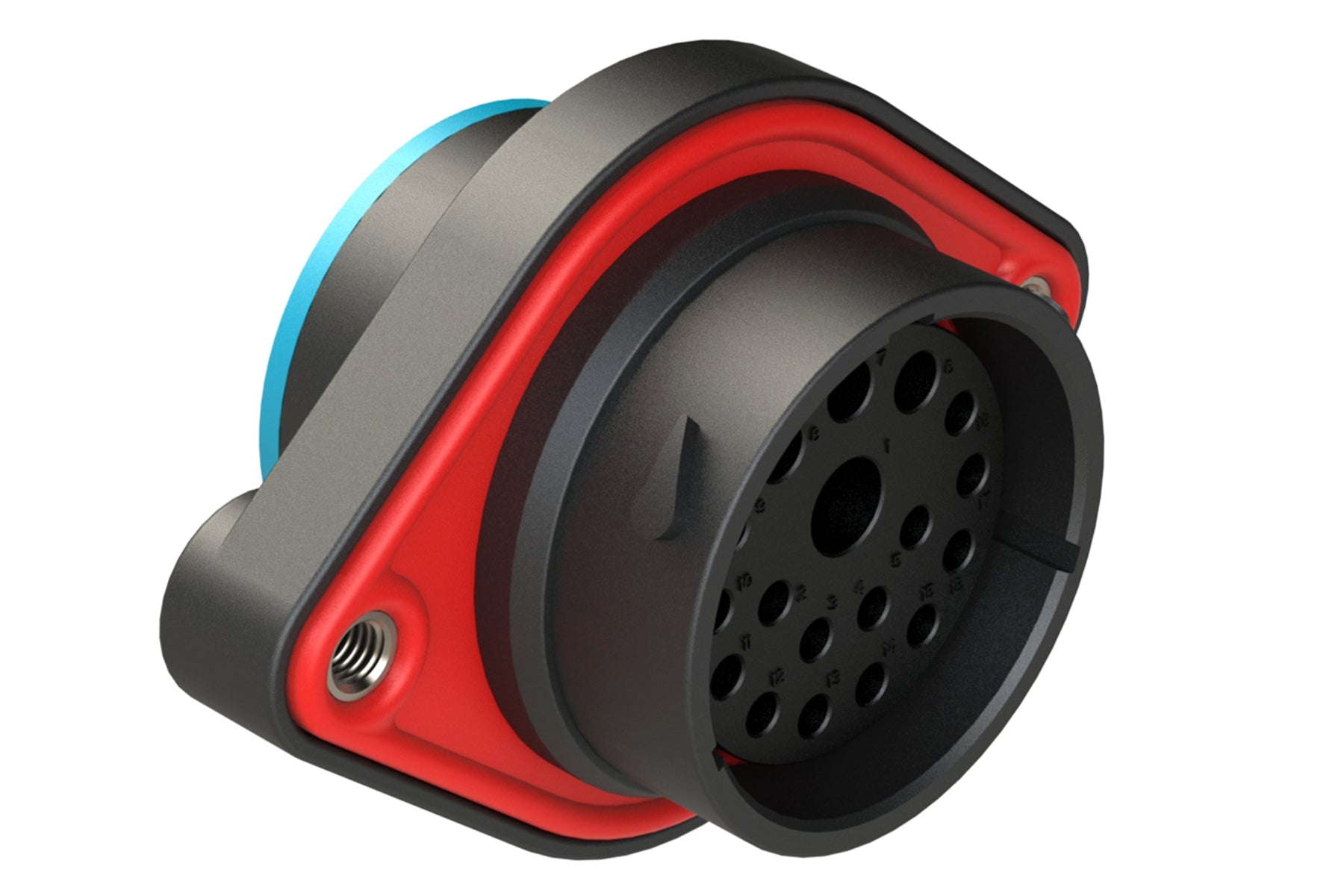

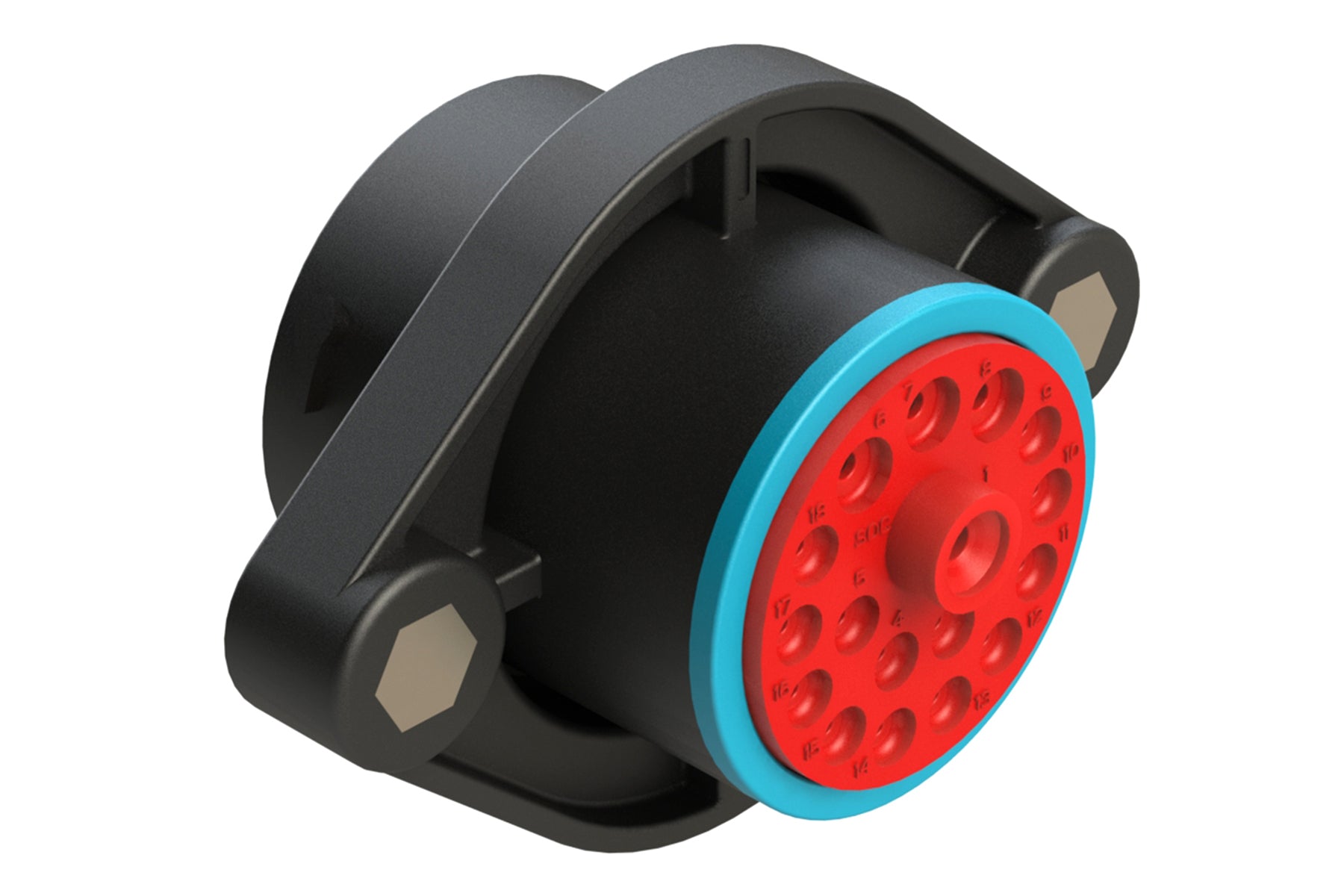

AHDP02-24-18SR-SRA 18 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
AHDP02-24-18SR-SRA 18 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-18SR-SRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 18Gender: Female (Reversed)
Contact Size: 8,12,16
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-18P*
Seal Diameter: 3.43mm (.135") - 5.59mm (.220") / 2.46mm (.097") - 4.01mm (.158") / 1.35mm (3.05mm (.120")
Wire Range: 8-10 AWG (10.0-5.0mm²), 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
18 Position Sealed Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
