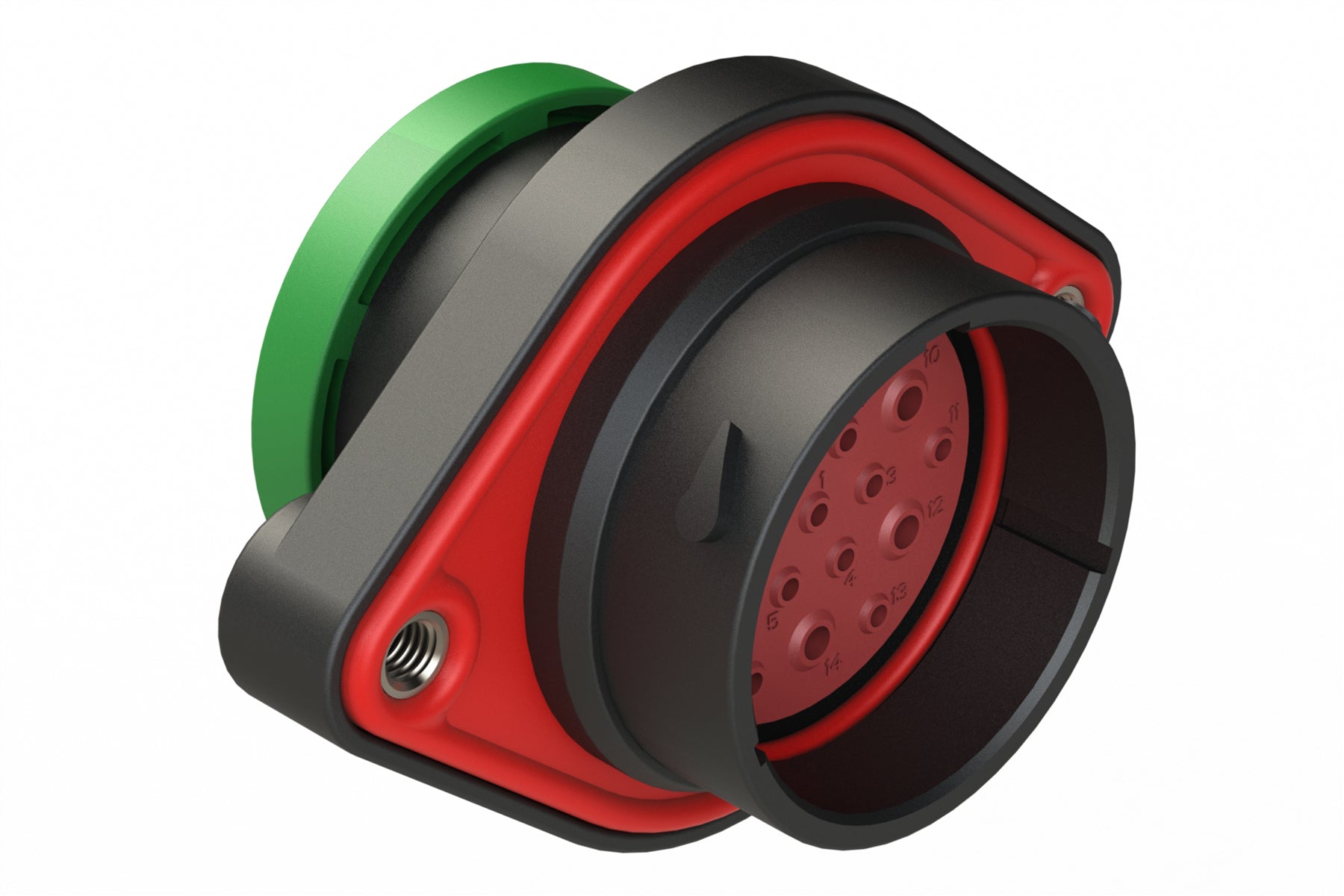

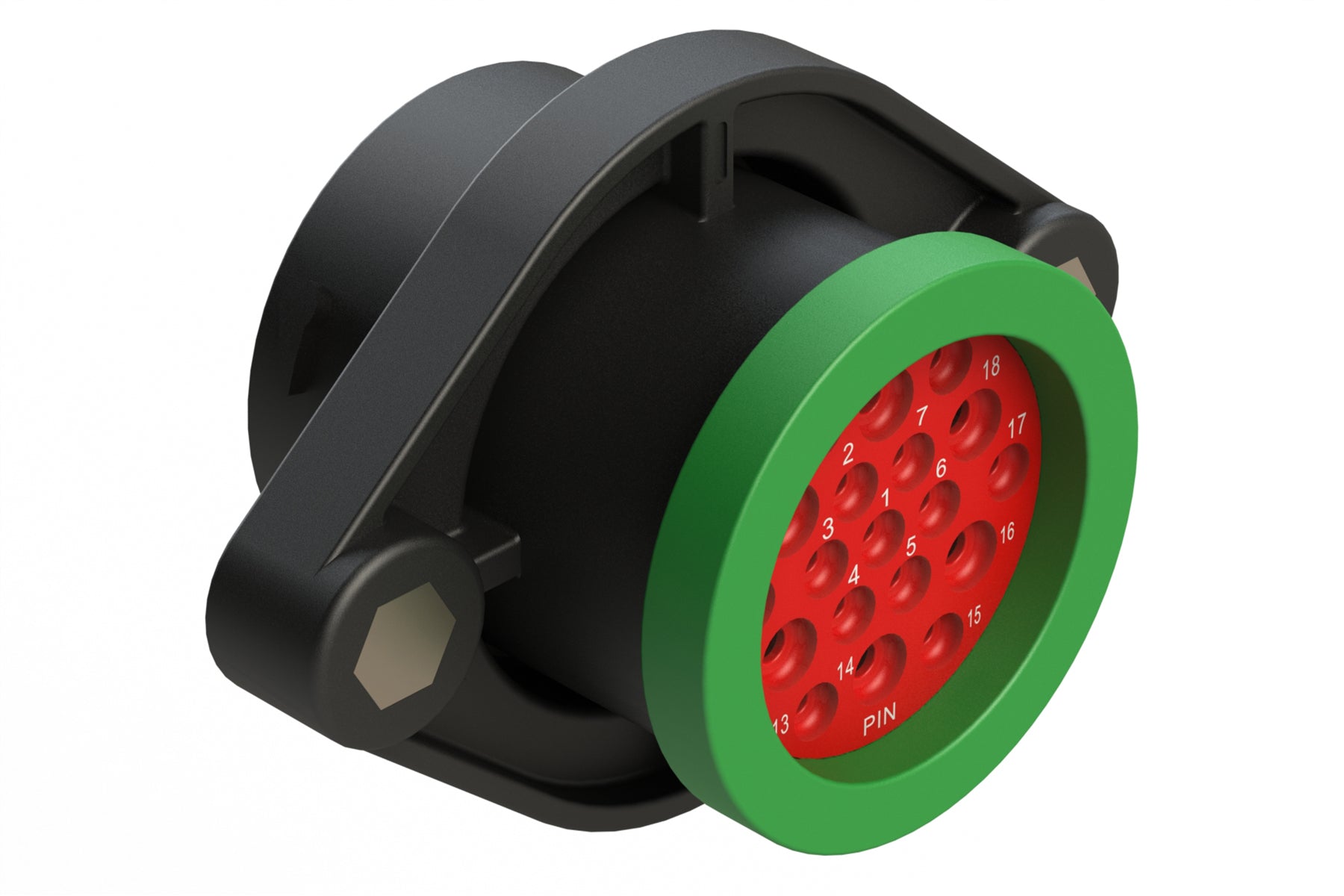

AHDP02-24-19PN-BRA 19 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
AHDP02-24-19PN-BRA 19 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-19PN-BRA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 19Gender: Male (Standard)
Contact Size: 12,16
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-19S*
Seal Diameter: 3.40mm (.134") - 4.32mm (.170") / 2.50mm (.100") - 3.40mm (.134")
Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
19 Position Panel Mount Receptacle, Pin, Shell Size 24, Normal Diameter Seal (Green Adapter), Backshell Ring Adapter
