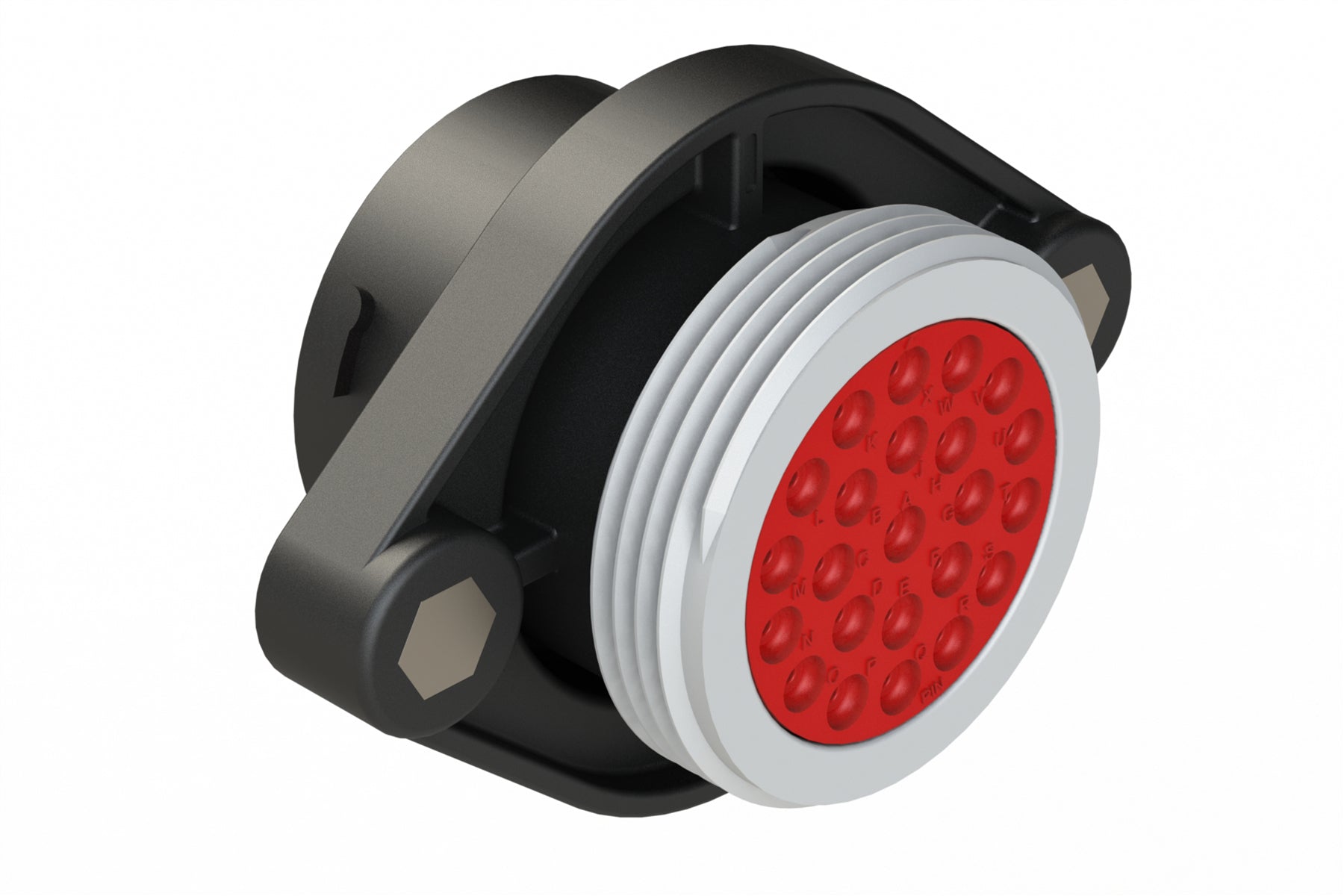

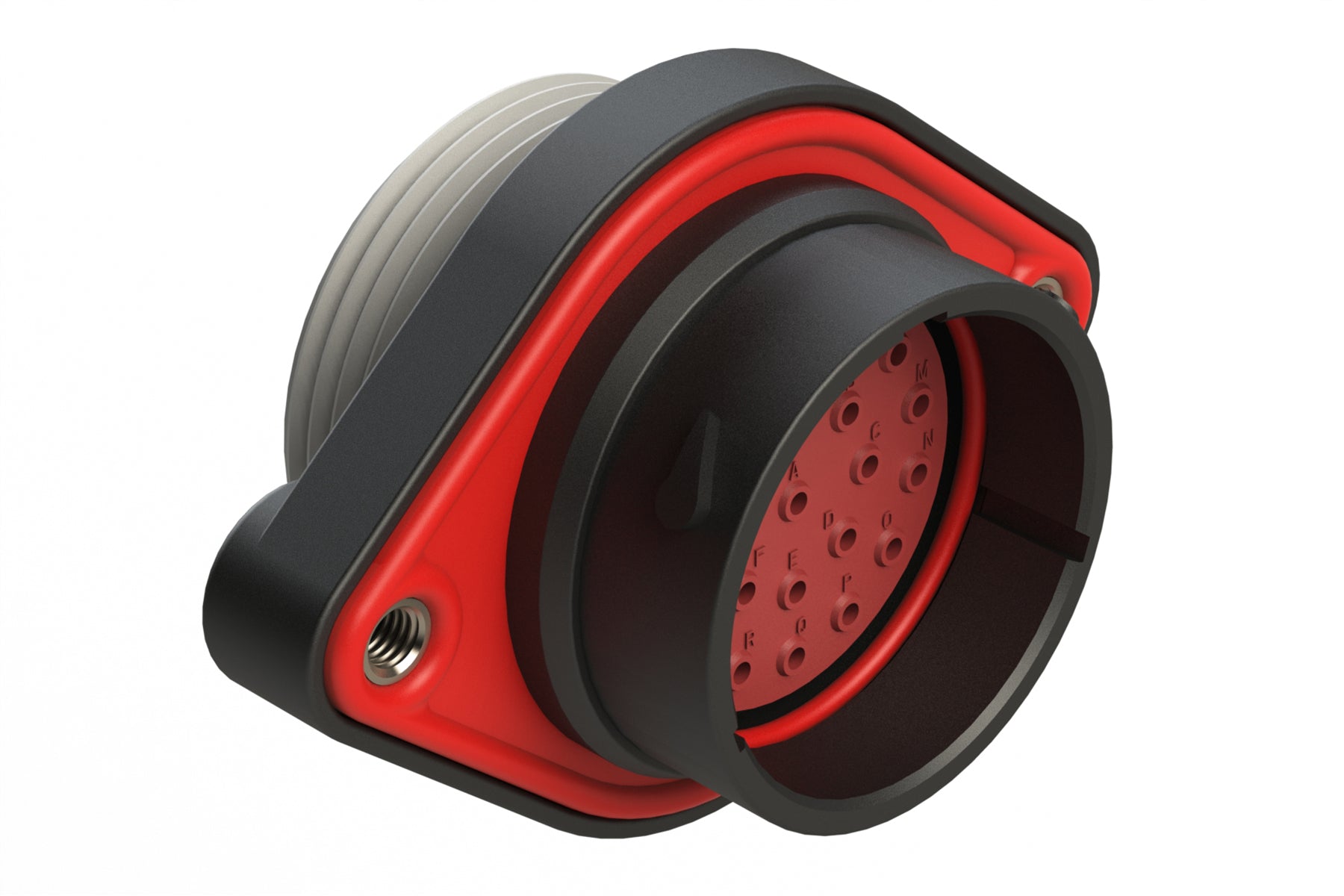

AHDP02-24-23PT-WTA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Thin Diameter Seal (Grey Adapter), Wide Thread Adapter (WTA)
AHDP02-24-23PT-WTA 23 Position Panel Mount Receptacle, Pin, Shell Size 24, Thin Diameter Seal (Grey Adapter), Wide Thread Adapter (WTA)
IMAGE MAY DIFFER
SKU:AHDP02-24-23PT-WTA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 23Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-23S*
Seal Diameter: 2.23mm (.088") - 2.69mm (.106")
Wire Range: 14-20 AWG
Shape: Circular
23 Position Panel Mount Receptacle, Pin, Shell Size 24, Thin Diameter Seal (Grey Adapter), Wide Thread Adapter (WTA)
