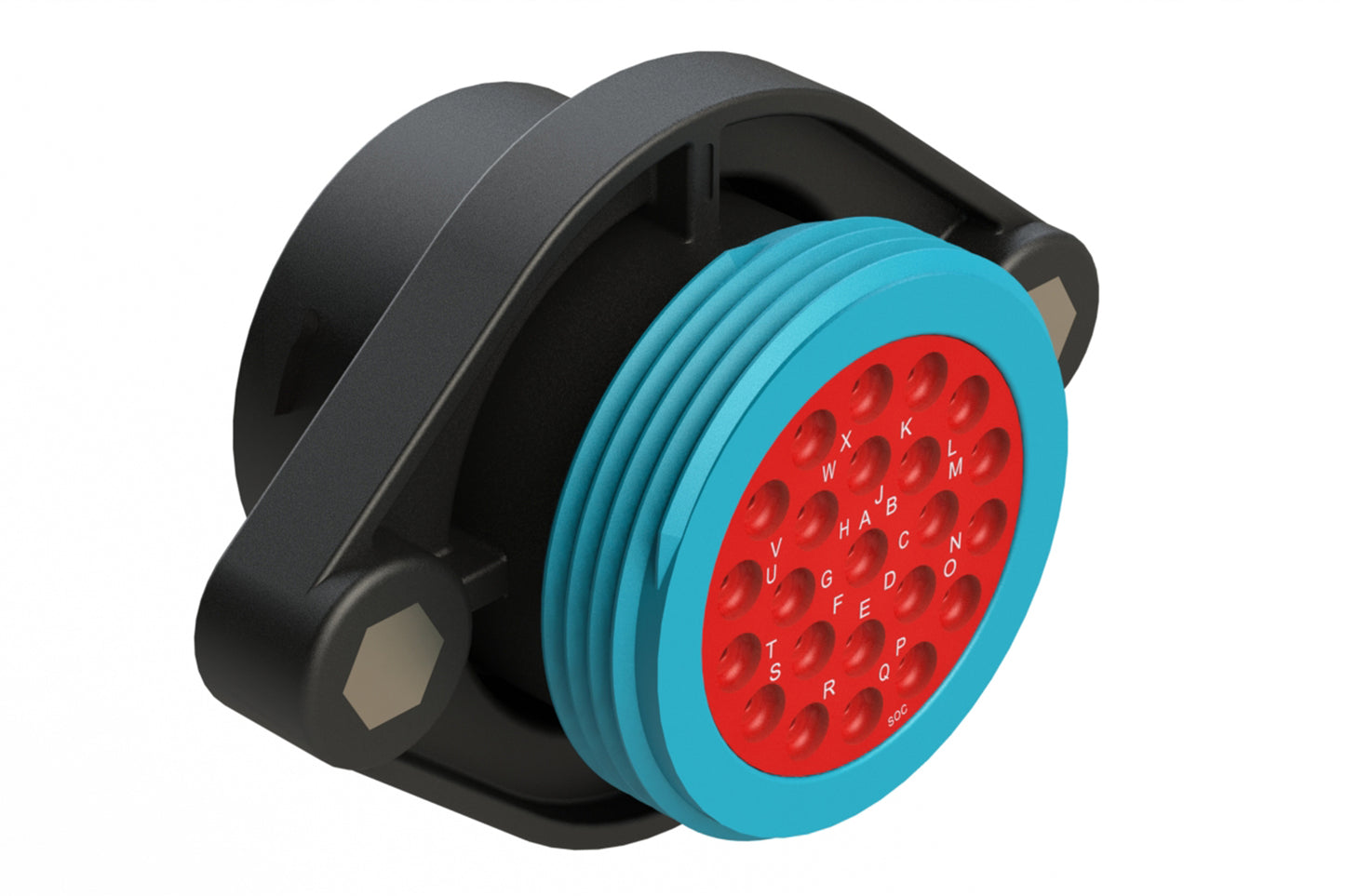

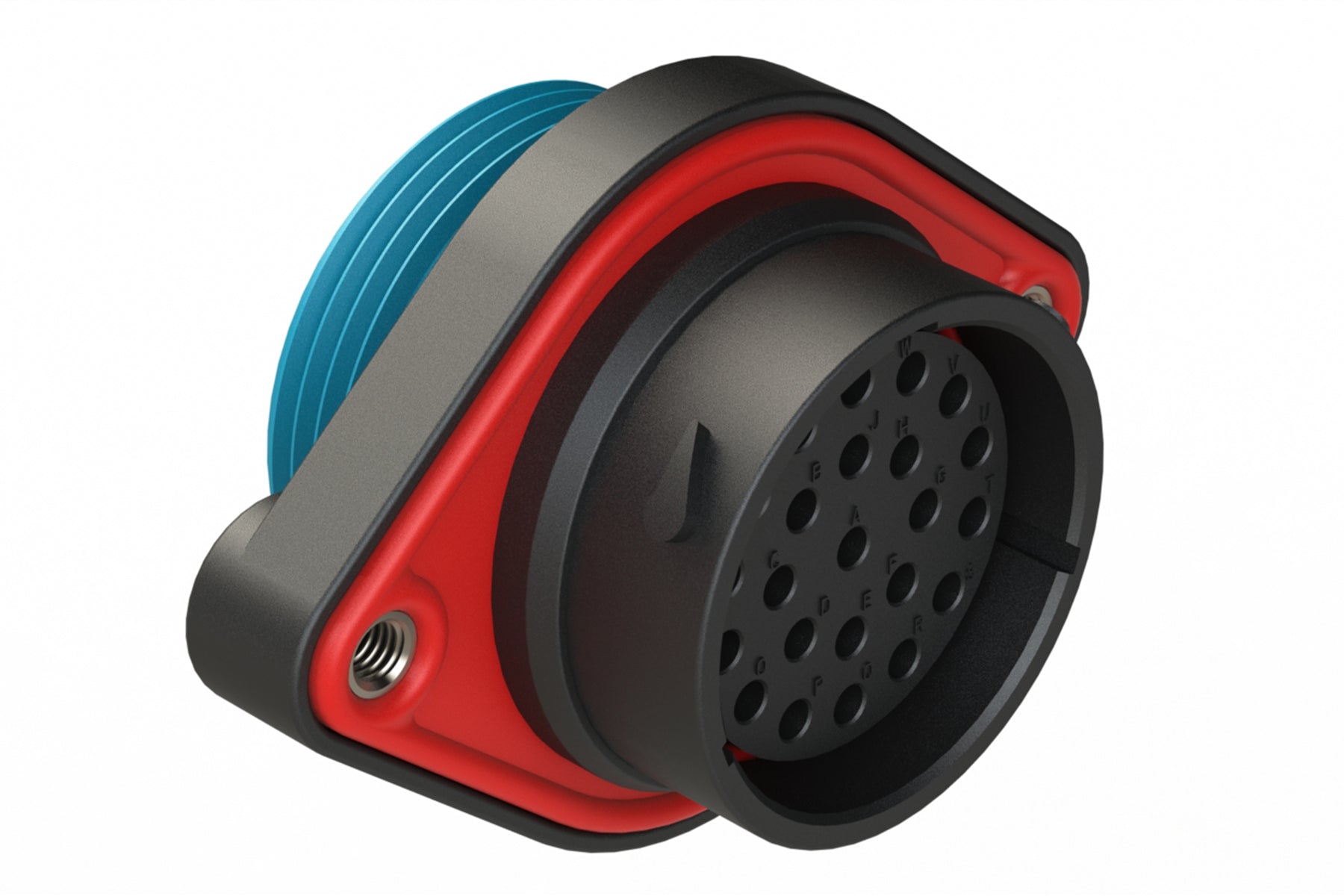

AHDP02-24-23SR-WTA 23 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
AHDP02-24-23SR-WTA 23 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-23SR-WTA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 23Gender: Female (Reversed)
Contact Size: 16
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-23P*
Seal Diameter: 1.35 mm (.053") - 3.05 mm (.120")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Circular
23 Position Panel Mount Receptacle, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
