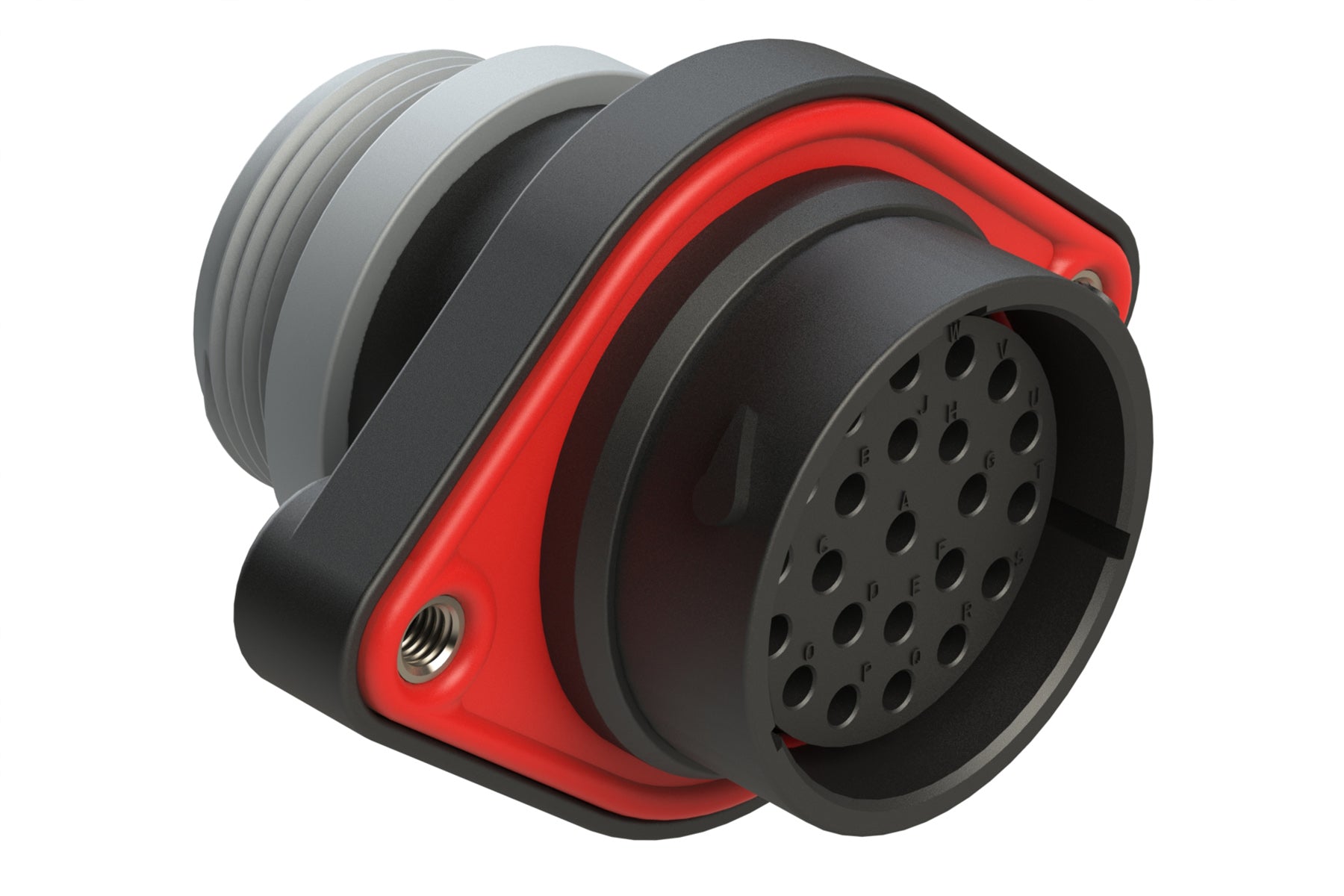

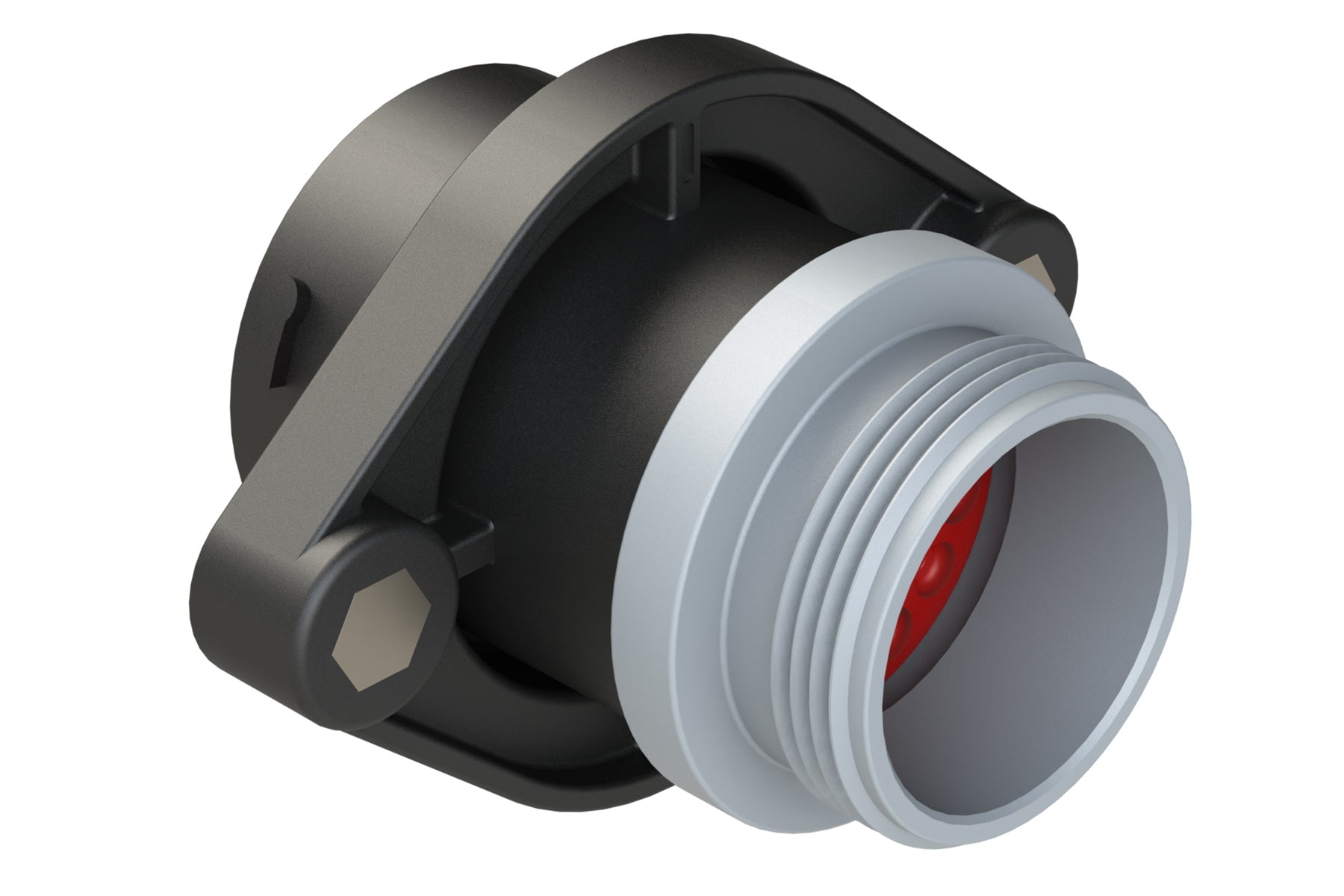

AHDP02-24-23ST-STA 23 Position Panel Mount Receptacle, Socket, Shell Size 24, Thin Diameter Seal (Grey Adapter), Small Thread Adapter
AHDP02-24-23ST-STA 23 Position Panel Mount Receptacle, Socket, Shell Size 24, Thin Diameter Seal (Grey Adapter), Small Thread Adapter
IMAGE MAY DIFFER
SKU:AHDP02-24-23ST-STA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 23Gender: Female
Contact Size: 16
Colour: Black
IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-23P*
Seal Diameter: 2.23mm (.088") - 2.69mm (.106")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Circular
23 Position Panel Mount Receptacle, Socket, Shell Size 24, Thin Diameter Seal (Grey Adapter), Small Thread Adapter
