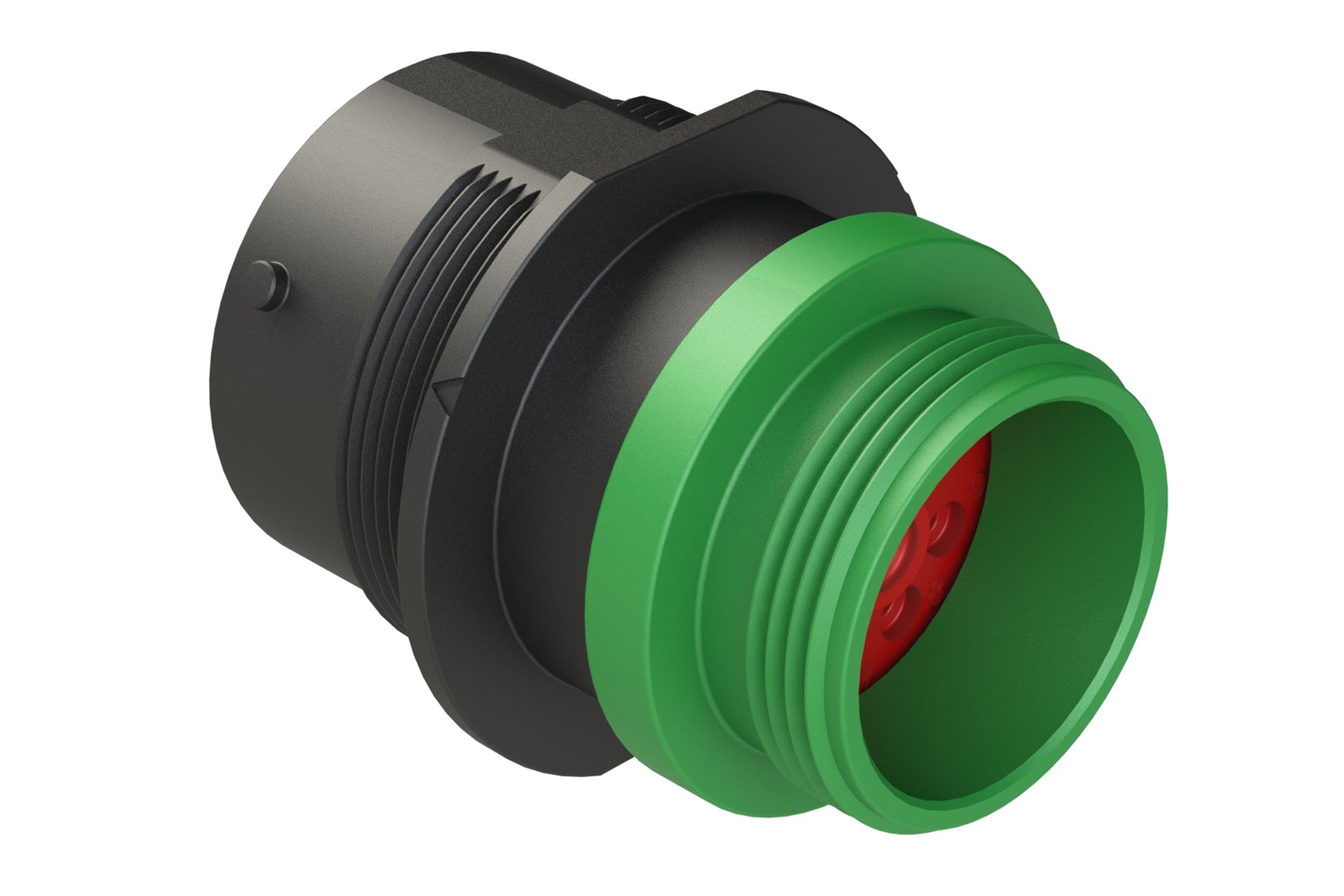

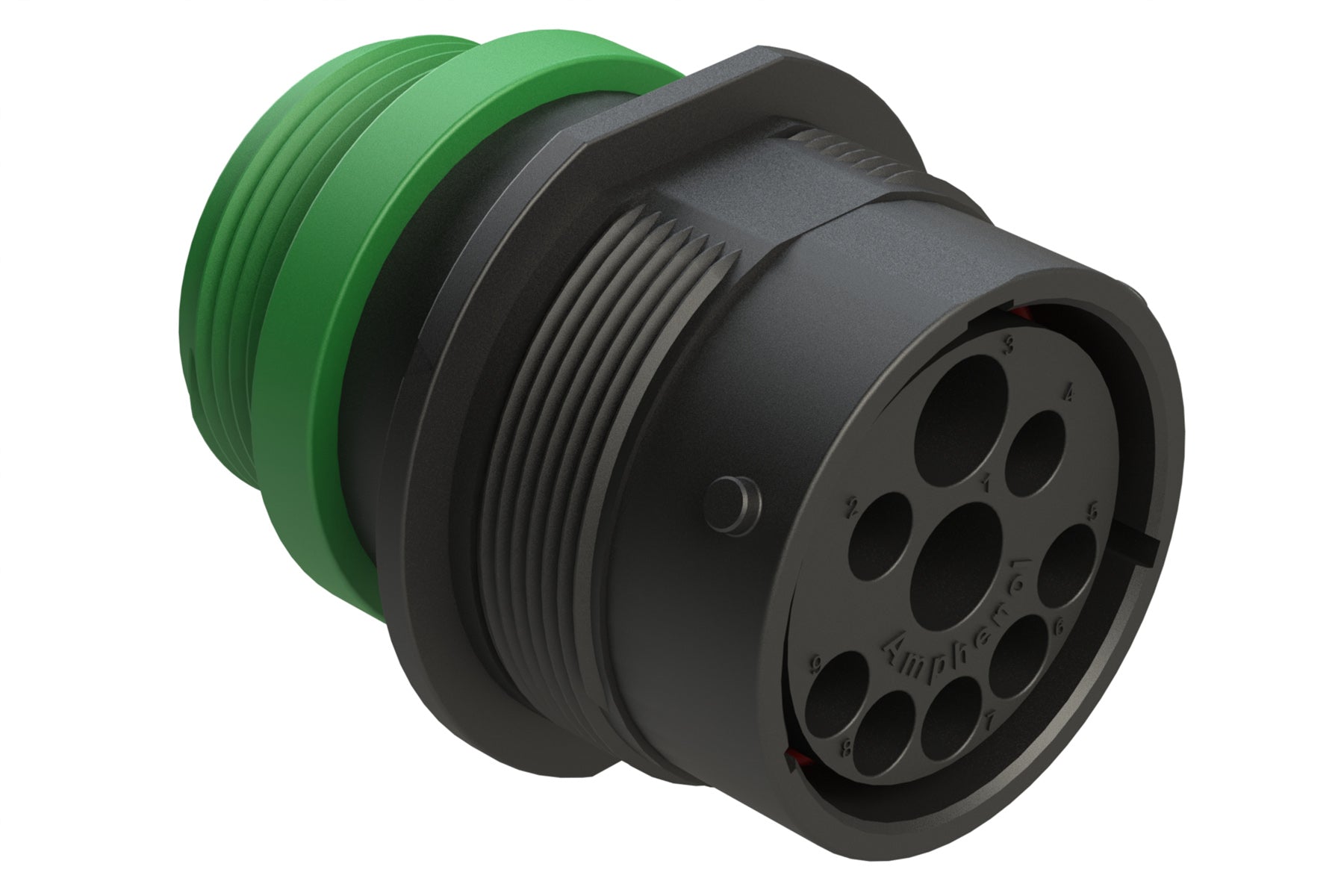

AHDP04-24-91PN-STA 9 Position Receptacle, Pin, ISOBUS, Shell Size 24, Normal Diameter Seal (Green Adapter), Small Thread Adapter. HDP24-24-91PN-L015
AHDP04-24-91PN-STA 9 Position Receptacle, Pin, ISOBUS, Shell Size 24, Normal Diameter Seal (Green Adapter), Small Thread Adapter. HDP24-24-91PN-L015
IMAGE MAY DIFFER
SKU:AHDP04-24-91PN-STA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 9Gender: Male
Contact Size: 8,12,16
Colour: Black
IP Rating: IP68 (1M of water for 24 hrs, mated condition), IP69K (mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-91S*
Seal Diameter: 4.83mm (.190") - 6.10mm (.240"),3.40mm (.134") - 4.32mm (.170"), 2.54mm (.100") - 3.40mm (.134")
Wire Range: 8-10 AWG (10.0-5.0mm²), 10-14 AWG(6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Circular
9 Position Receptacle, Pin, ISOBUS, Shell Size 24, Normal Diameter Seal (Green Adapter), Small Thread Adapter
