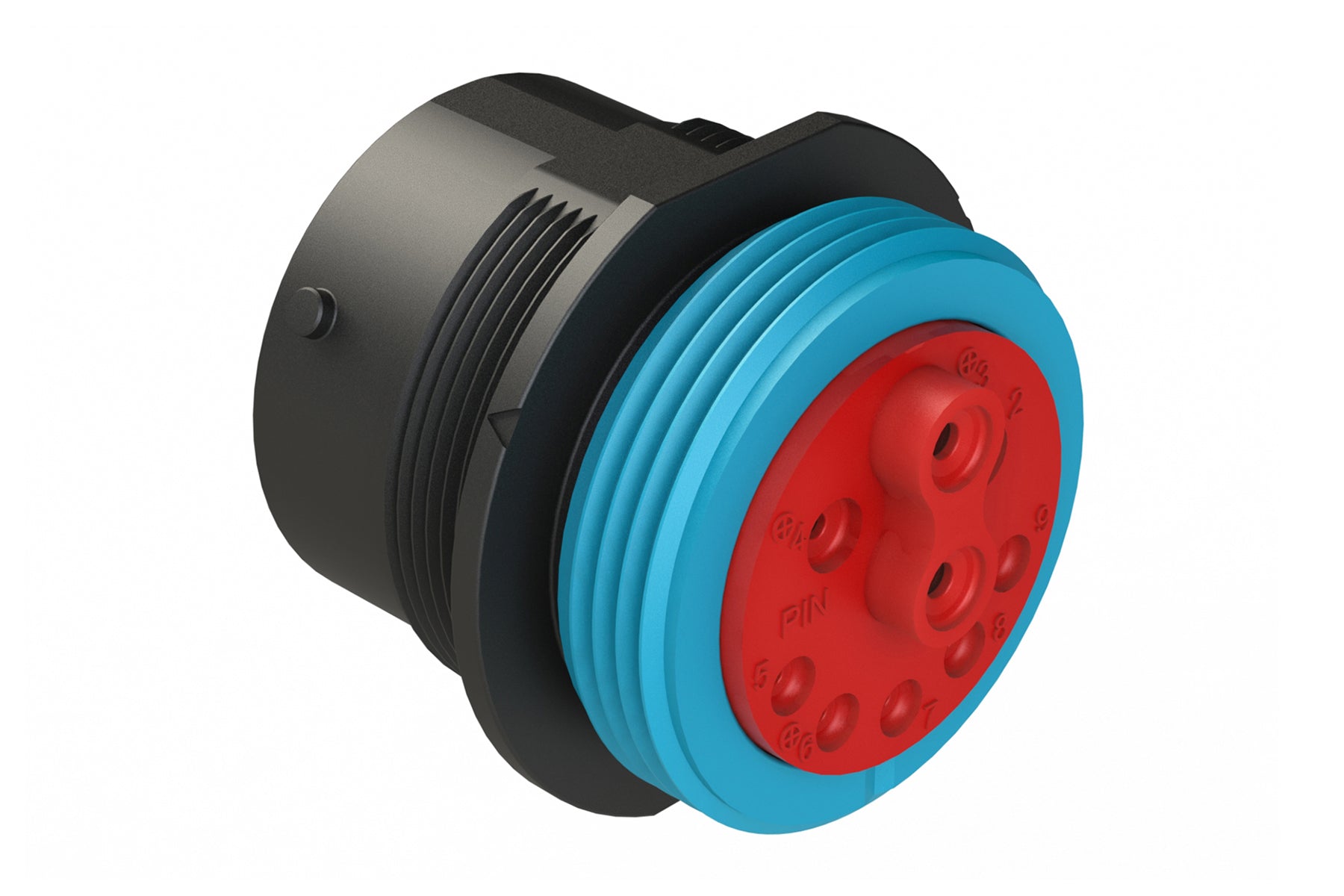

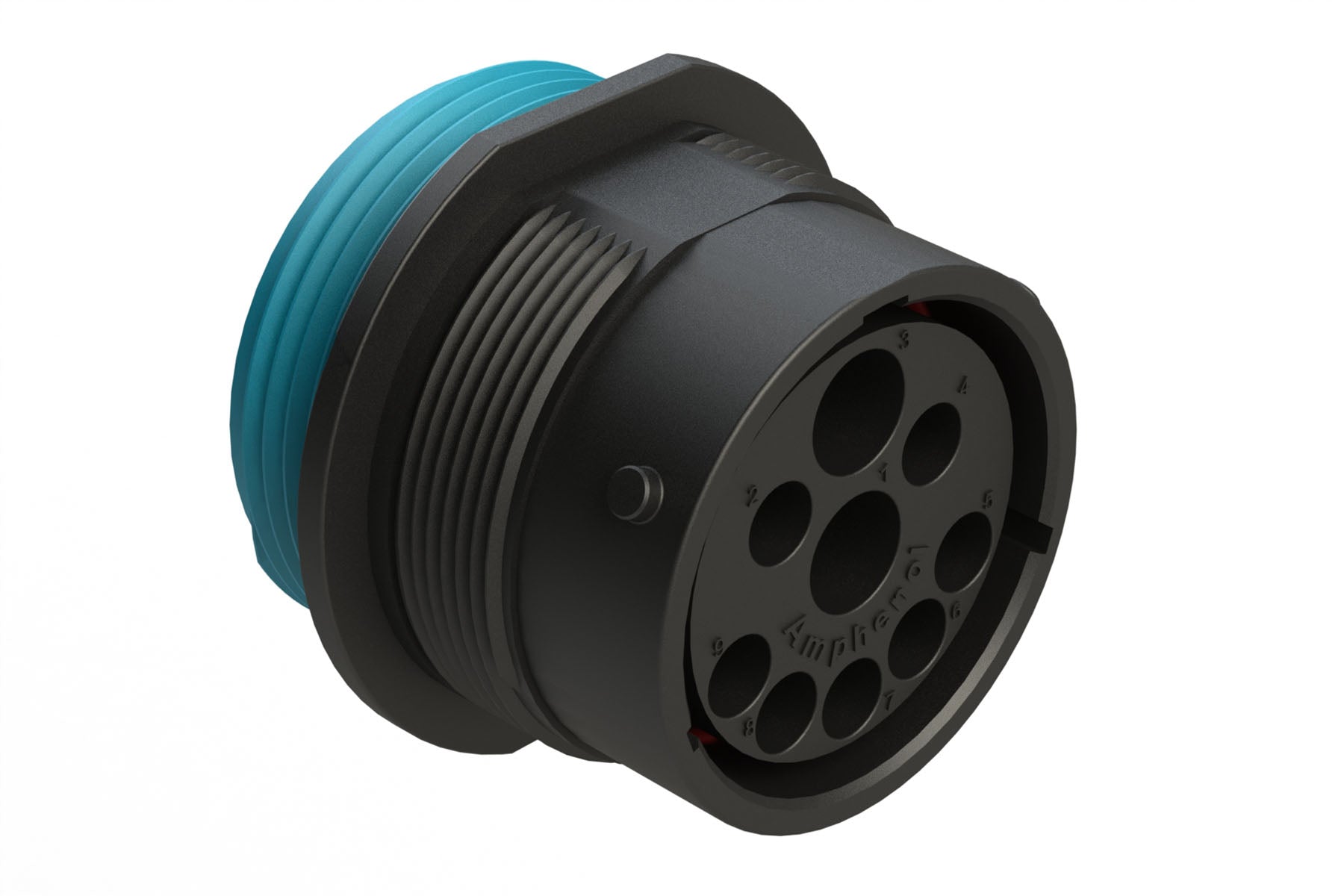

AHDP04-24-91PR-WTA 9 Position ISOBUS Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter. HDP24-24-91PE-L024
AHDP04-24-91PR-WTA 9 Position ISOBUS Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter. HDP24-24-91PE-L024
IMAGE MAY DIFFER
SKU:AHDP04-24-91PR-WTA
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 9Gender: Male (Standard)
Contact Size: 8,12,16
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDM06-24-91S* & AHDM08-24-91S* PLUGS
Seal Diameter: 3.43mm (.135") - 5.59mm (.220"),2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Wire Range: 8-10AWG,10-14AWG,14-20AWG
Shape: Circular
9 Position ISOBUS Receptacle, Pin, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Wide Thread Adapter
