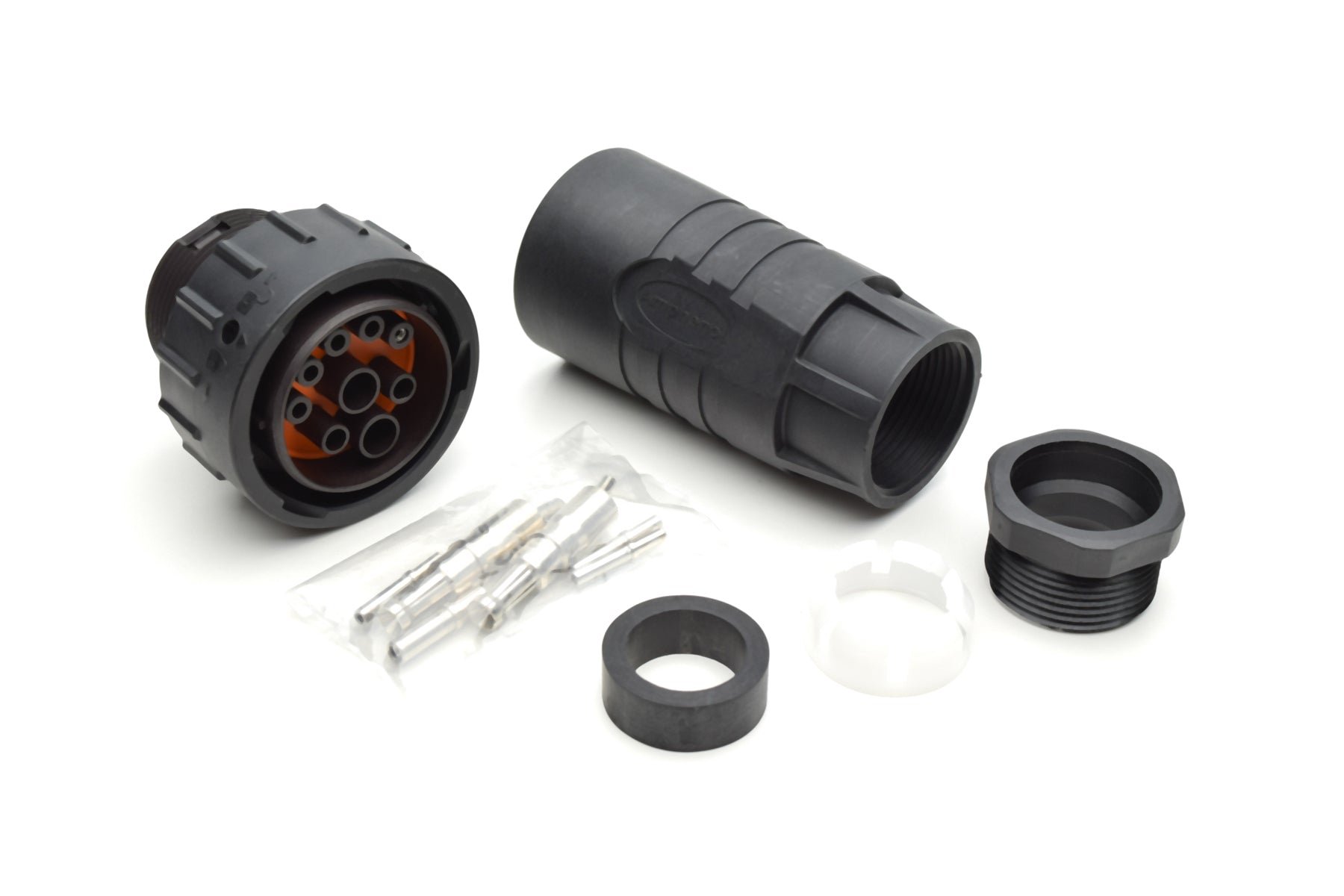

AHDP06-24-91S-BS1-K16X Isobus connector for 14-18mm cable diameter, Kit incl. Contacts (2x VN 02 036 0028 6 ; 2x AT62-12-0166; 4x AT62-16-0622)

Name: AHDP06-24-91S-BS1-K16X Isobus connector for 14-18mm cable diameter, Kit incl. Contacts (2x VN 02 036 0028 6 ; 2x AT62-12-0166; 4x AT62-16-0622)
Brand: Amphenol Tuchel
SKU: AHDP06-24-91S-BS1-K16X
Availability: InStock

IMAGE MAY DIFFER

SKU:AHDP06-24-91S-BS1-K16X

$0.00 AUD

Sale Sold out

Quantity

Stock Level

Stock levels vary — Contact us for details

Downloads

Datasheet
Assembly Instructions
Assembly Instructions

Specifications

No. of Positions: 9
Gender: Female
Contact Size: 2x #8 + 2x #12 + 5x #16 (1x bridged)
Colour: Black
IP Rating: IP67 & IP69k (in mated condition)
Operating Temperature: - 40°C to +125°C
Mating Cycle Durability: >100
Housing Material: Polyamide black, UL94 V - 0
Seal Material: NBR, Silicone
Shape: Circular

Isobus connector for 14-18mm cable diameter, Kit incl. Contacts (2x VN 02 036 0028 6 ; 2x AT62-12-0166; 4x AT62-16-0622)
