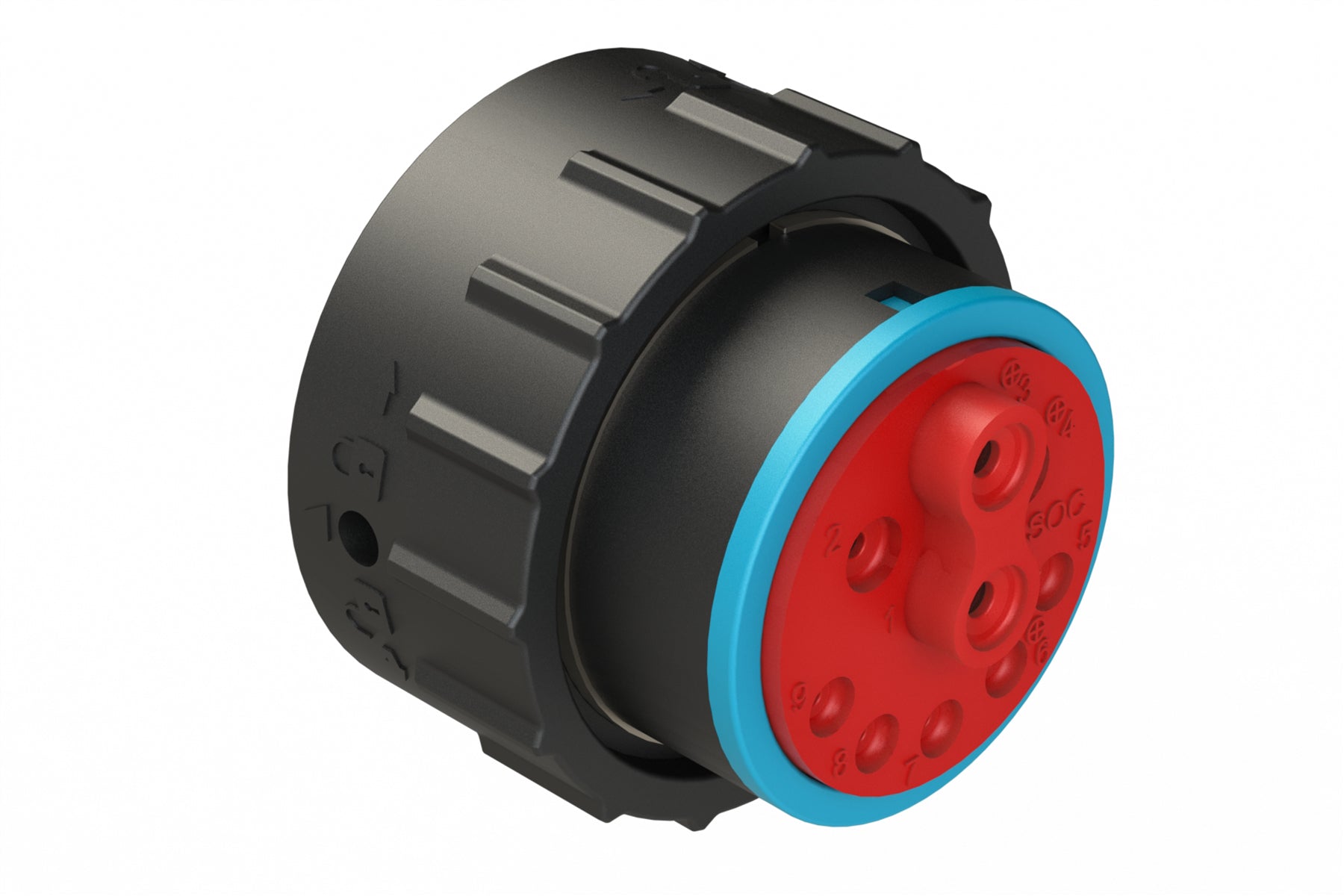

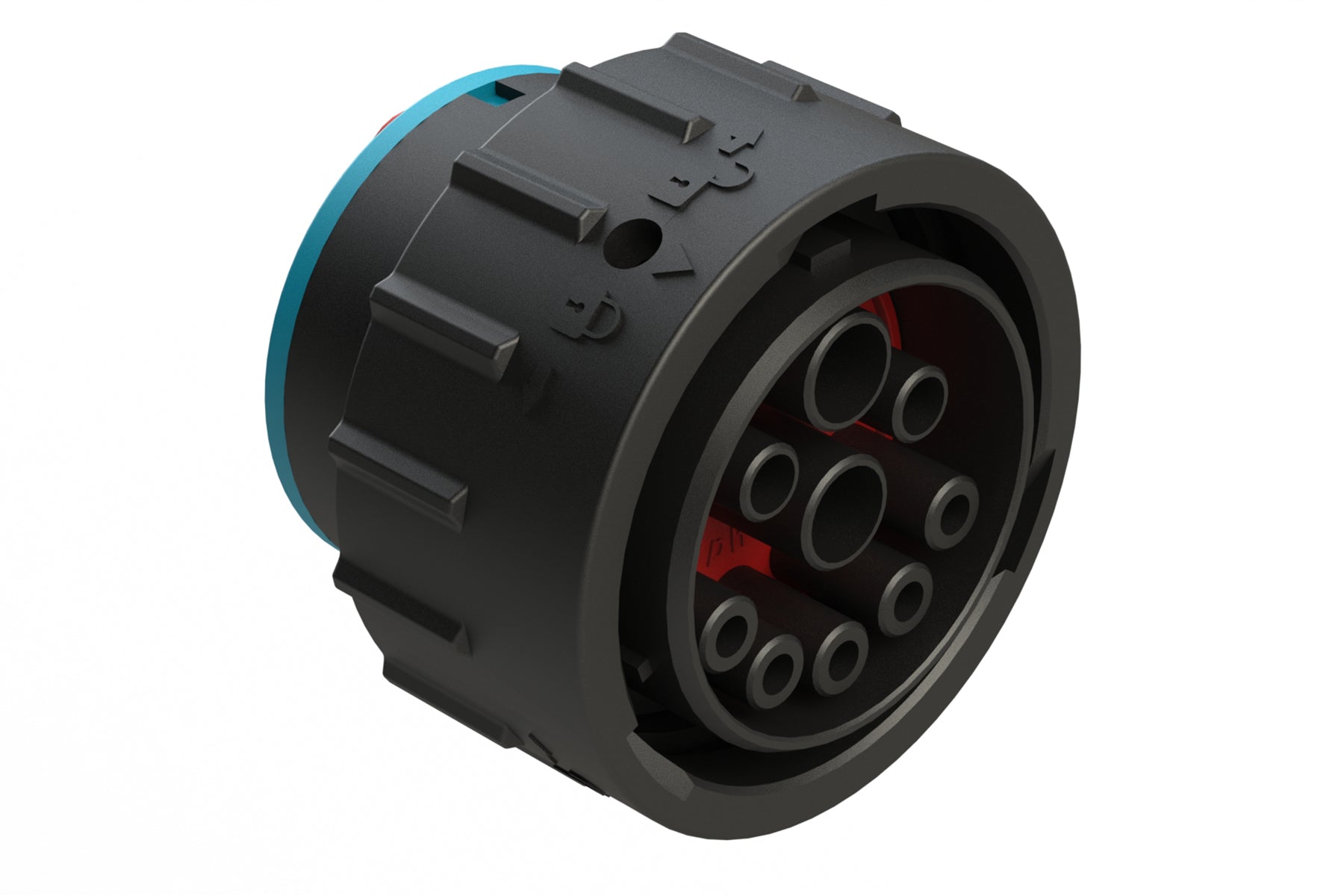

AHDP06-24-91SR-P064 9 Position ISOBUS Plug, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter (SRA), No Jumper
AHDP06-24-91SR-P064 9 Position ISOBUS Plug, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter (SRA), No Jumper
IMAGE MAY DIFFER
SKU:AHDP06-24-91SR-P064
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 9Gender: Female (Standard)
Contact Size: 8,12,16
Colour: Black
IP Rating: IP68 (1M of Water for 24 Hours), IP69K. Both in mated condition
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP04-24-91P*
Seal Diameter: 4.83mm (.190") - 6.10mm (.240"),3.40mm (.134") - 4.32mm (.170"), 2.54mm (.100") - 3.40mm (.134")
Wire Range: 8-10AWG,10-14AWG,14-20AWG
Shape: Circular
9 Position ISOBUS Plug, Socket, Shell Size 24, Reduced Diameter Seal (Blue Adapter), Smooth Ring Adapter (SRA), No Jumper
