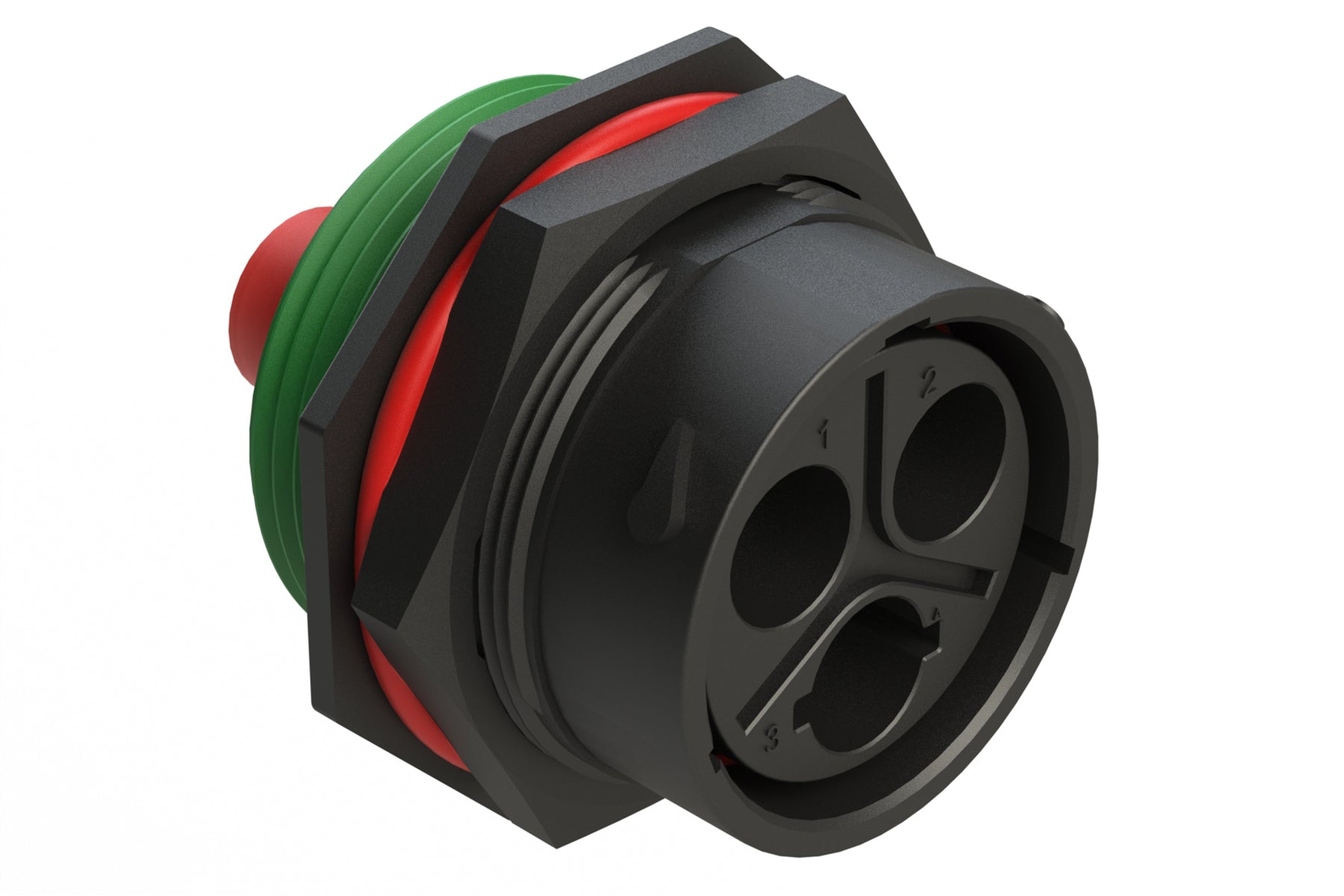

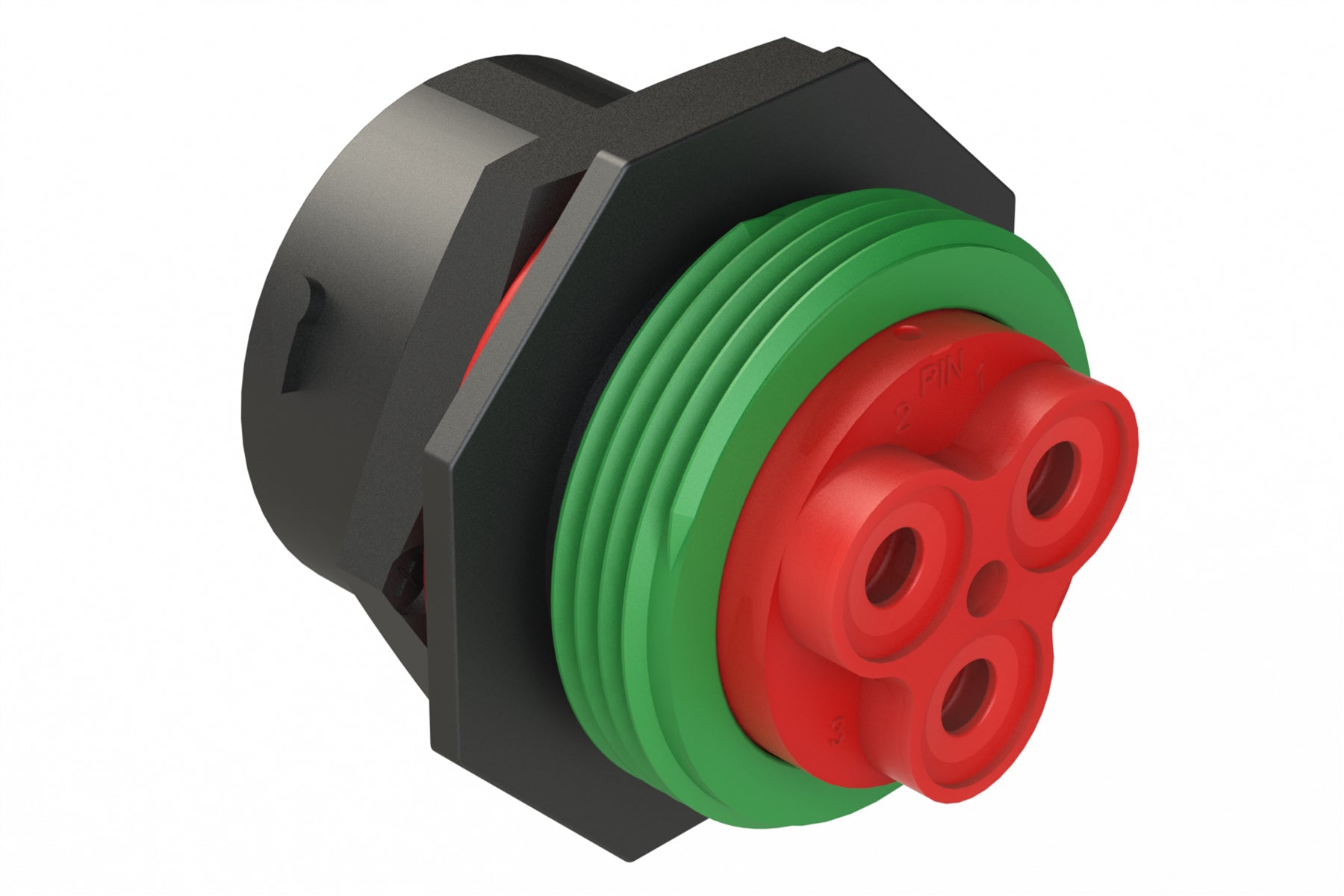

AHDP07-24-03PNA-WTAC031 3 Position Receptacle, Pin, Shell Size 24, Keyed A, 100A, 1000V, Sealed Panel Mount, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
AHDP07-24-03PNA-WTAC031 3 Position Receptacle, Pin, Shell Size 24, Keyed A, 100A, 1000V, Sealed Panel Mount, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
IMAGE MAY DIFFER
SKU:AHDP07-24-03PNA-WTAC031
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Assembly InstructionsSpecifications
No. of Positions: 3Gender: Male
Shell Size: 24
Contact Size: 4
AWG: 4AWG
Amperage: 100A
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AHDP06-24-03SNA-WTAC031 PLUG
Seal Diameter: 7.90 mm (.0.311") - 10.67 mm (. 420")
Wire Range: 4AWG (25.0mm² - 21.0mm²)
Shape: Circular
3 Position Receptacle, Pin, Shell Size 24, Keyed A, 100A, 1000V, Sealed Panel Mount, Normal Diameter Seal (Green Adapter), Wide Thread Adapter
