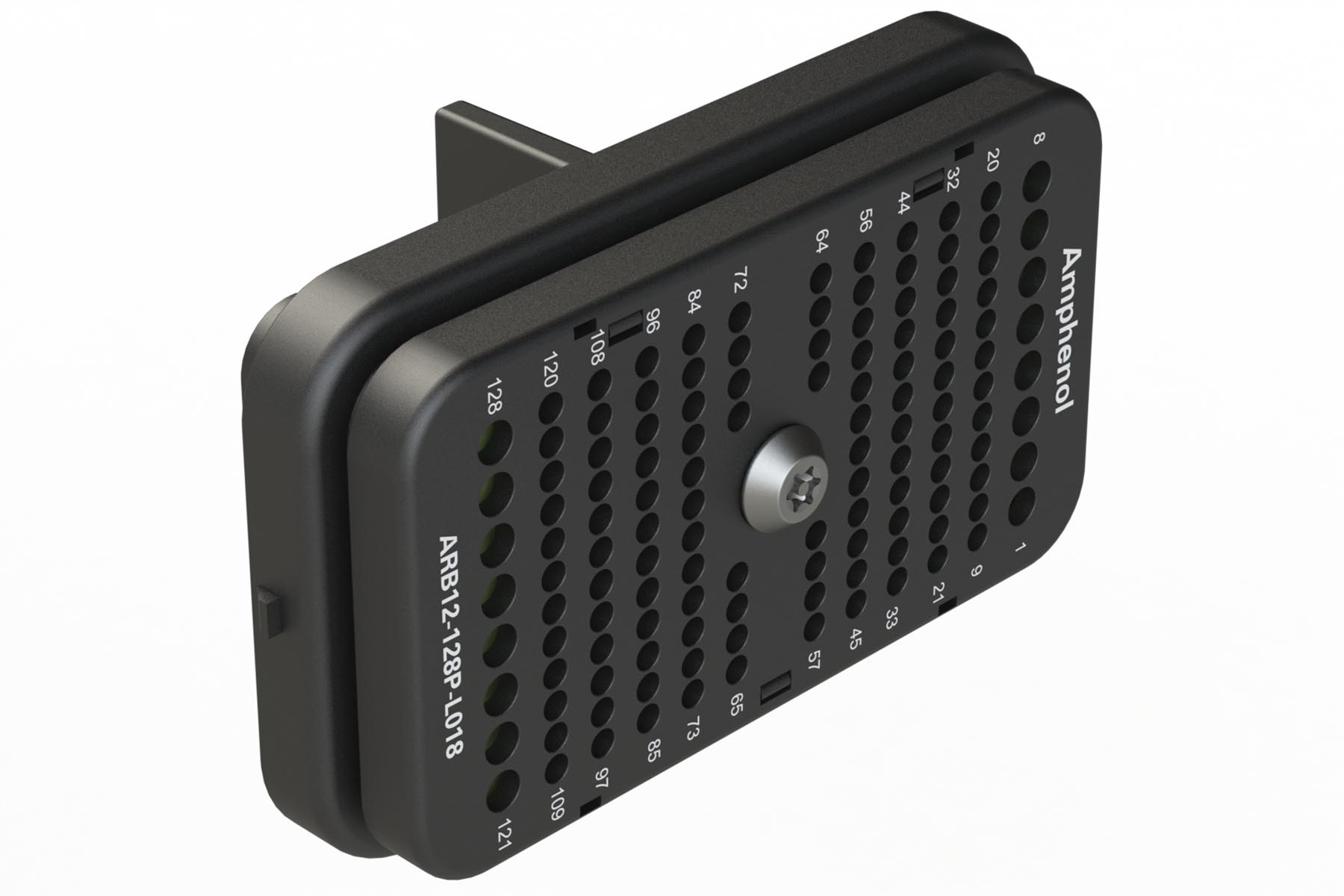

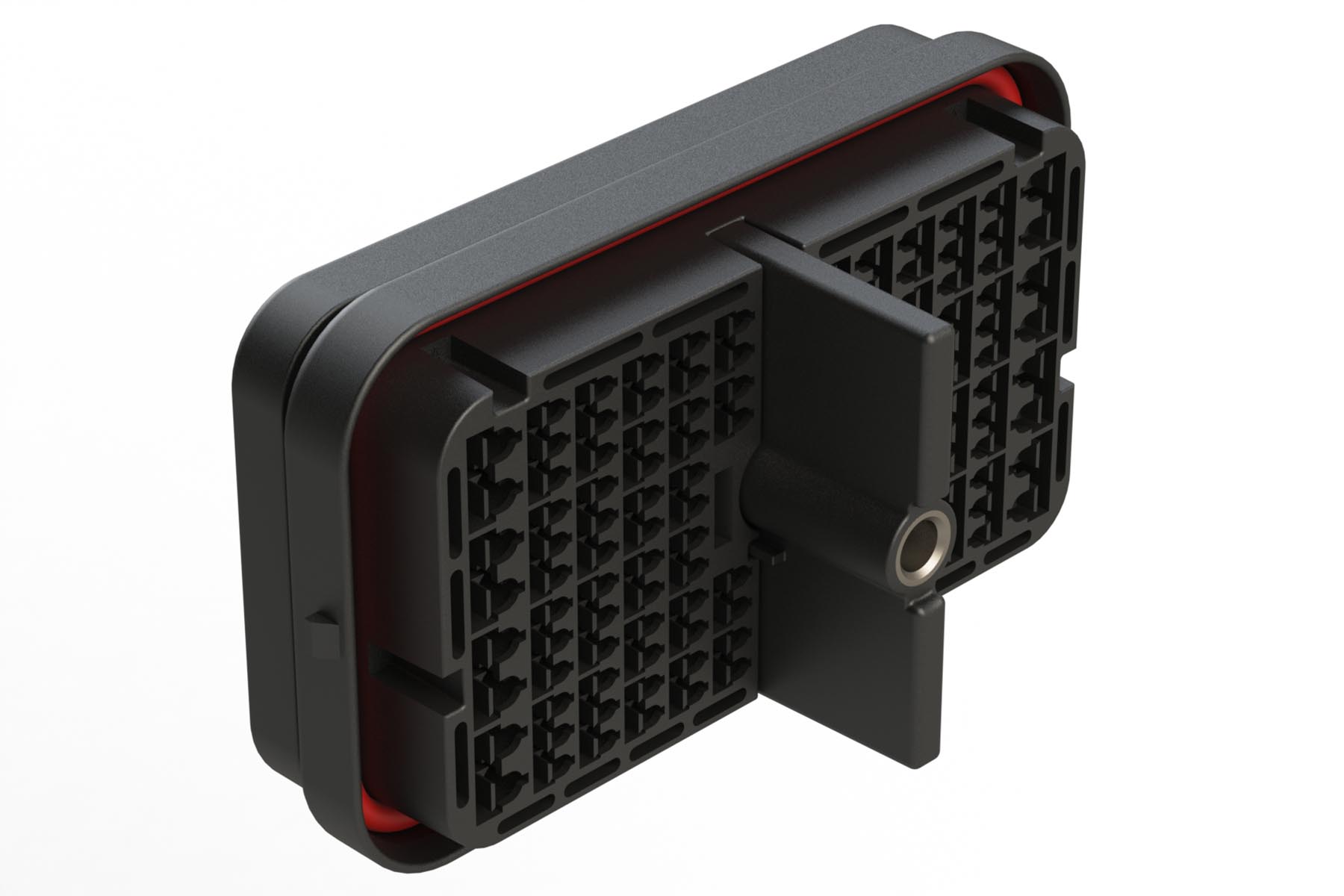

ARB12-128PAR-L018 128 Position Receptacle, Pin, Threaded Insert, Reduced Diameter Seal, Keyed A, Black
ARB12-128PAR-L018 128 Position Receptacle, Pin, Threaded Insert, Reduced Diameter Seal, Keyed A, Black
IMAGE MAY DIFFER
SKU:ARB12-128PAR-L018
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 128Gender: Male
Contact Size: 12,16
Amperage: 25,13
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARB16-128SAE-L018
Wedge Part: AWB-64PA
Seal Diameter: 2.46mm (.097") - 4.01mm (.158"), 1.35mm (.053") - 3.05mm (.120")
Wire Range: 10-14 AWG (6.0-2.0mm²), 14-20 AWG (2.0-0.5mm²)
Shape: Rectangular
128 Position Receptacle, Pin, Threaded Insert, Reduced Diameter Seal, Keyed A, Black
