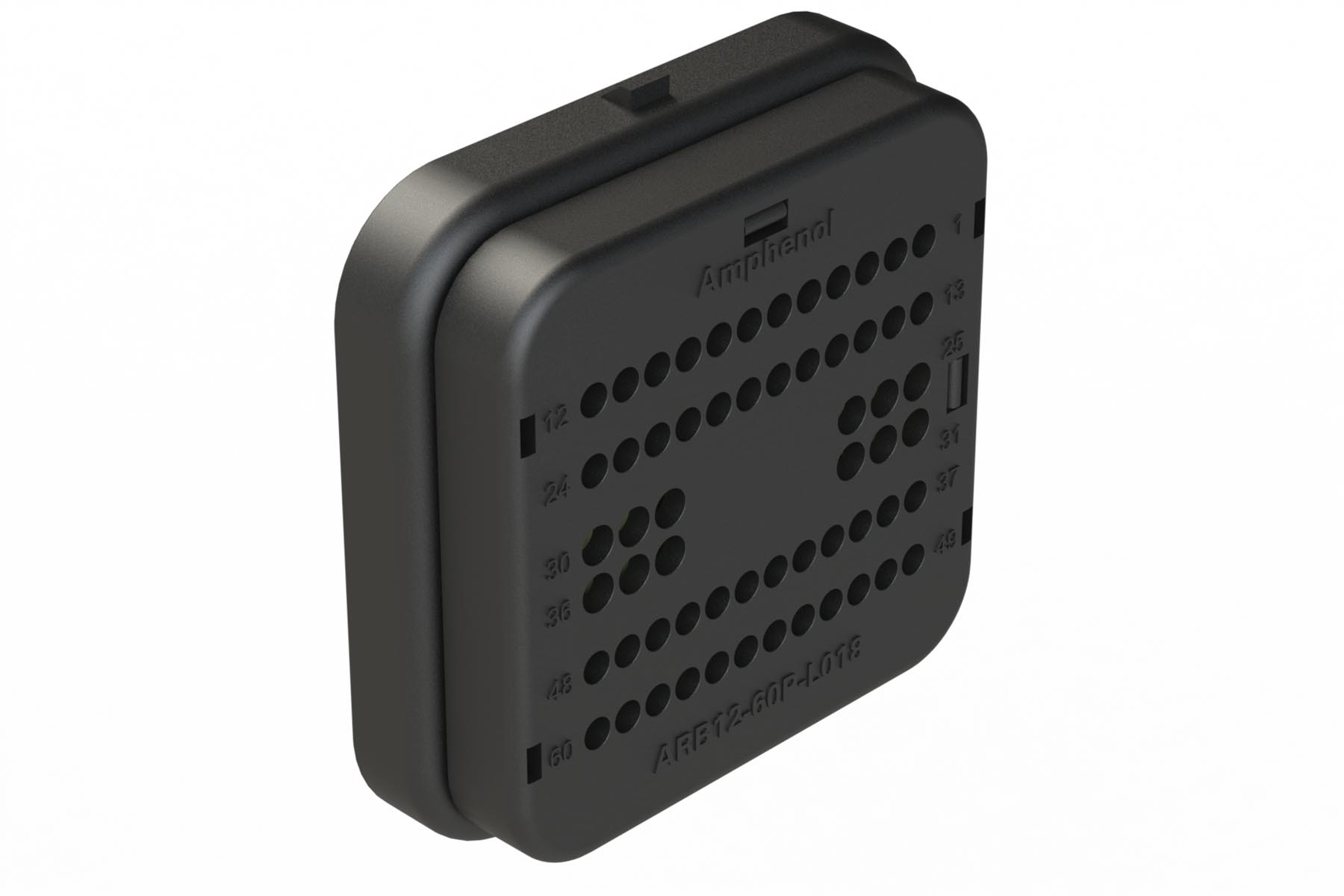

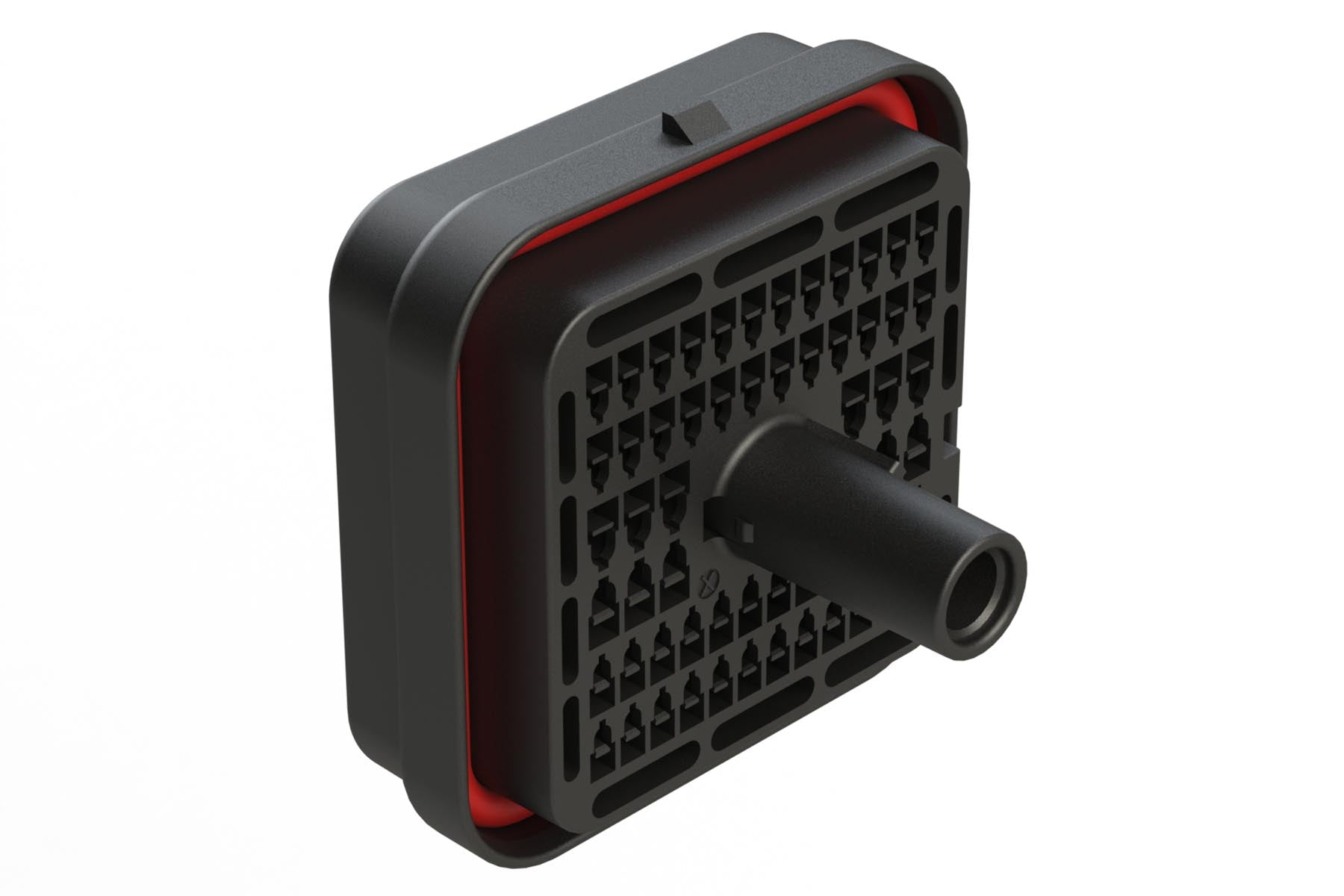

ARB12-60PCR-L018 60 Position Receptacle, Pin, Reduced Diameter Seal, Keyed C, Black
ARB12-60PCR-L018 60 Position Receptacle, Pin, Reduced Diameter Seal, Keyed C, Black
IMAGE MAY DIFFER
SKU:ARB12-60PCR-L018
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 60Gender: Male
Contact Size: 16,20
Amperage: 13,7.5
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARB16-60SCE-L018
Wedge Part: AWB-60PC
Seal Diameter: 1.35mm (.053") - 1.02mm (.040") , 3.048mm (.120") - 2.413mm (.095")
Wire Range: 14-20 AWG (2.0-0.5mm²), 16-22 AWG (1.5-0.35mm²)
Shape: Rectangular
60 Position Receptacle, Pin, Reduced Diameter Seal, Keyed C, Black
