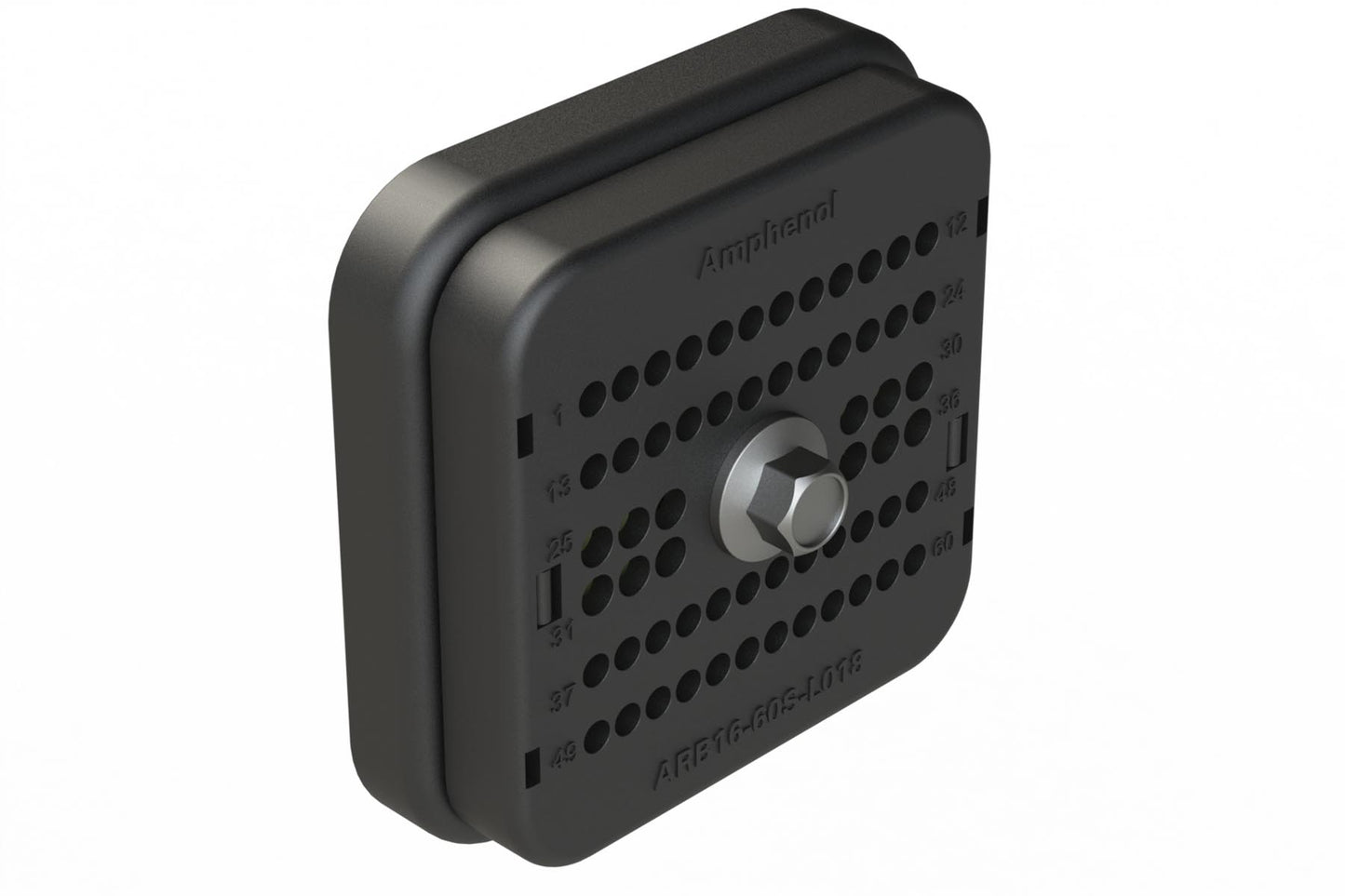

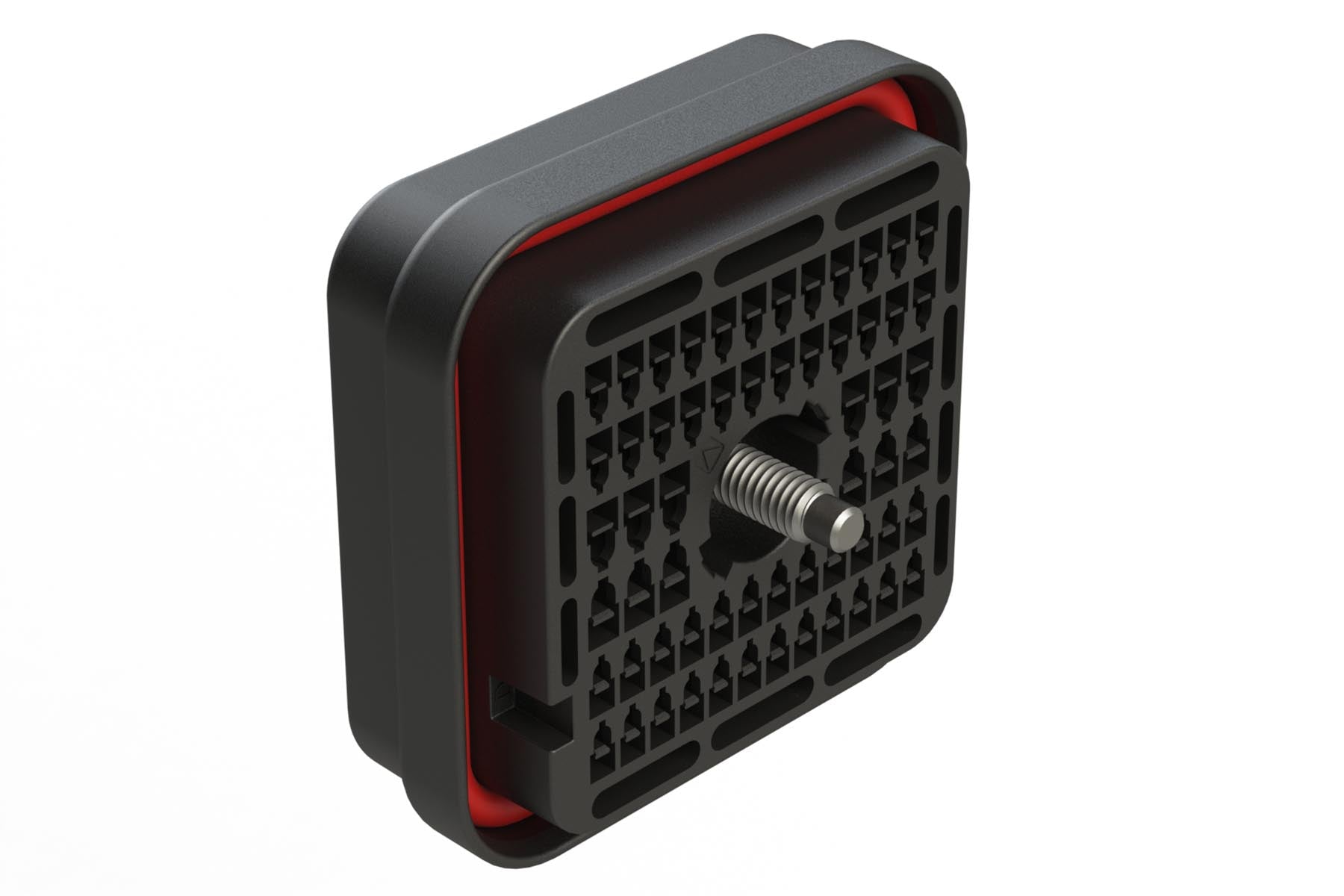

ARB16-60SDR-L018 60 Position Plug, Socket, Jackscrew, Reduced Diameter Sea, Keyed D, Black
ARB16-60SDR-L018 60 Position Plug, Socket, Jackscrew, Reduced Diameter Sea, Keyed D, Black
IMAGE MAY DIFFER
SKU:ARB16-60SDR-L018
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 60Gender: Female
Contact Size: 16,20
Amperage: 13,7.5
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours, in mated condition) IP69K (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARB12-60PDE-L018
Wedge Part: AWB-60SD
Seal Diameter: 1.35mm (.053") - 1.02mm (.040") , 3.048mm (.120") - 2.413mm (.095")
Shape: Rectangular
60 Position Plug, Socket, Jackscrew, Reduced Diameter Sea, Keyed D, Black
