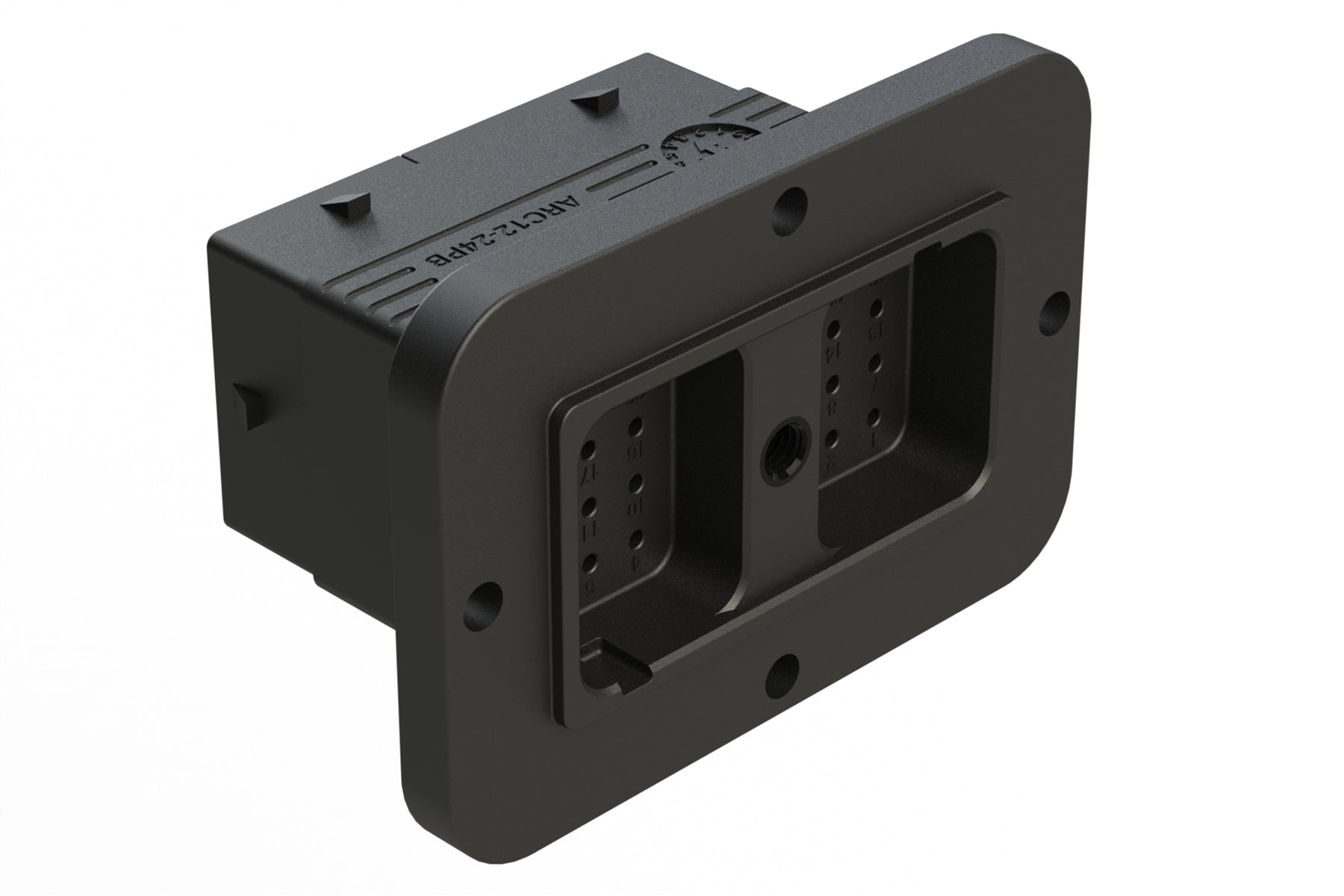

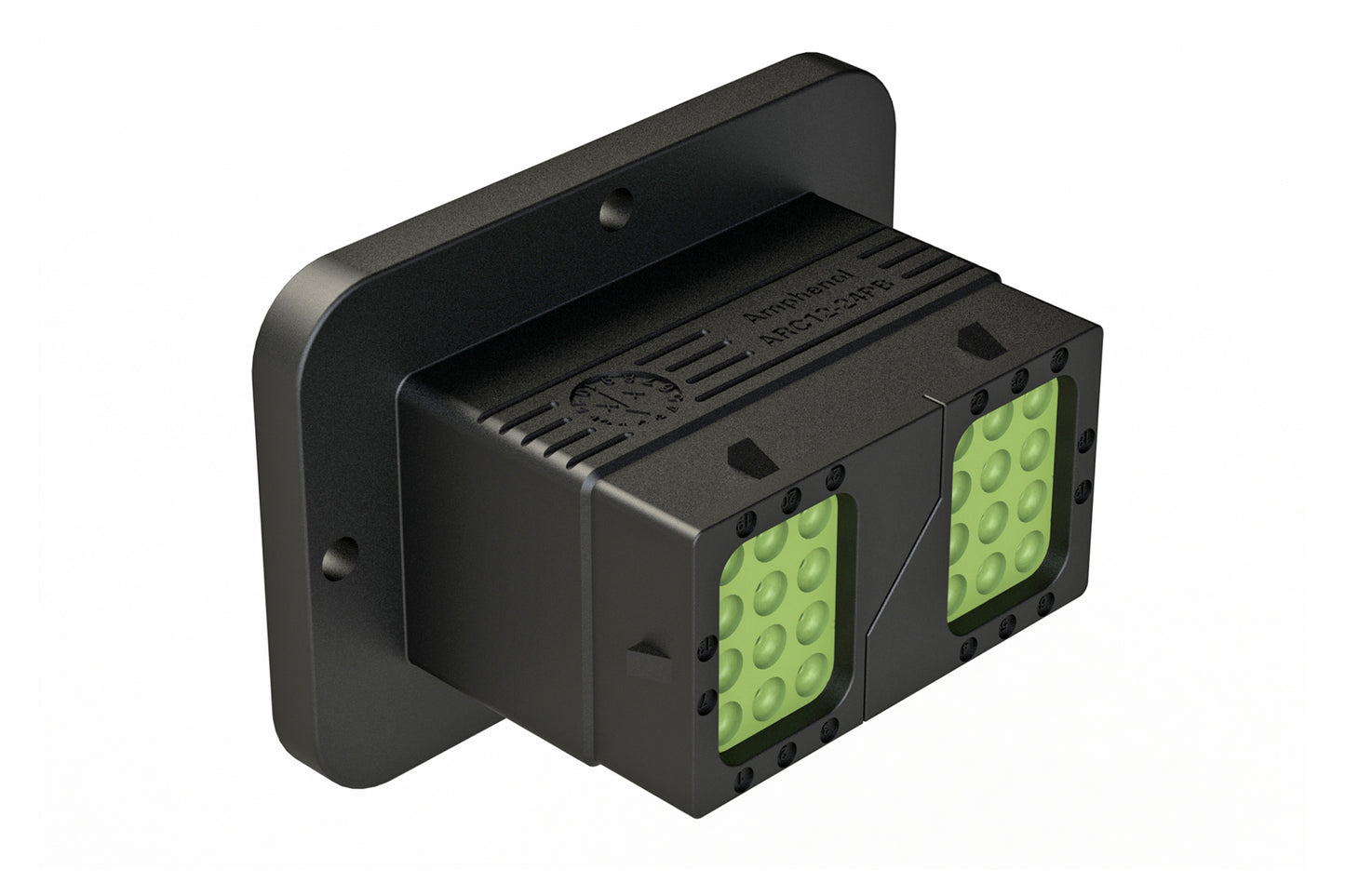

ARC12-24PBR 24 Position Receptacle, Pin Contact, Size 16, Threaded Insert for Jackscrew, Keyed B, Flanged, Reduced Diameter Rear Seal, Dustcap included. DRC12-24PBE
ARC12-24PBR 24 Position Receptacle, Pin Contact, Size 16, Threaded Insert for Jackscrew, Keyed B, Flanged, Reduced Diameter Rear Seal, Dustcap included. DRC12-24PBE
IMAGE MAY DIFFER
SKU:ARC12-24PBR
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 24Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP68 (1M of Water for 24 Hours), IP69K. Both in mated condition
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARC16-24SB*
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Rectangular
24 Position Receptacle, Pin Contact, Size 16, Threaded Insert for Jackscrew, Keyed B, Flanged, Reduced Diameter Rear Seal, Dustcap included
