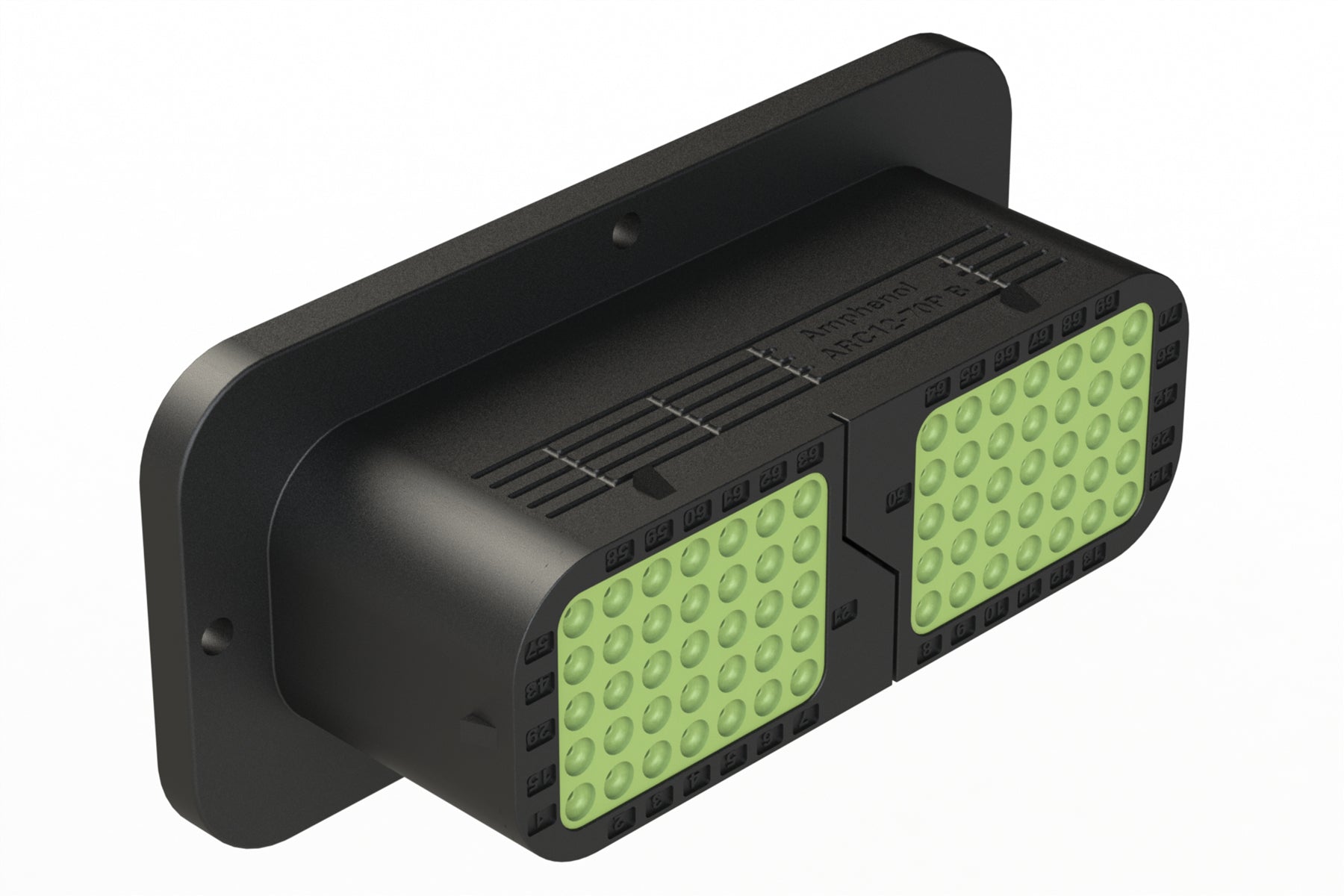

ARC12-70PBR 70 Position Receptacle, Pin, Contact Size Size 16, Threaded Insert for Jackscrew, Keyed B, Flanged, Reduced Diameter Rear Seal (Green), Black Body, Dustcap Included. DRC12-70PBE
ARC12-70PBR 70 Position Receptacle, Pin, Contact Size Size 16, Threaded Insert for Jackscrew, Keyed B, Flanged, Reduced Diameter Rear Seal (Green), Black Body, Dustcap Included. DRC12-70PBE
IMAGE MAY DIFFER
SKU:ARC12-70PBR
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 70Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP68 (1M of Water for 24 Hours), IP69K. Both in mated condition
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARC18-70SB
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Rectangular
70 Position Receptacle, Pin, Contact Size Size 16, Threaded Insert for Jackscrew, Keyed B, Flanged, Reduced Diameter Rear Seal (Green), Black Body, Dustcap Included
