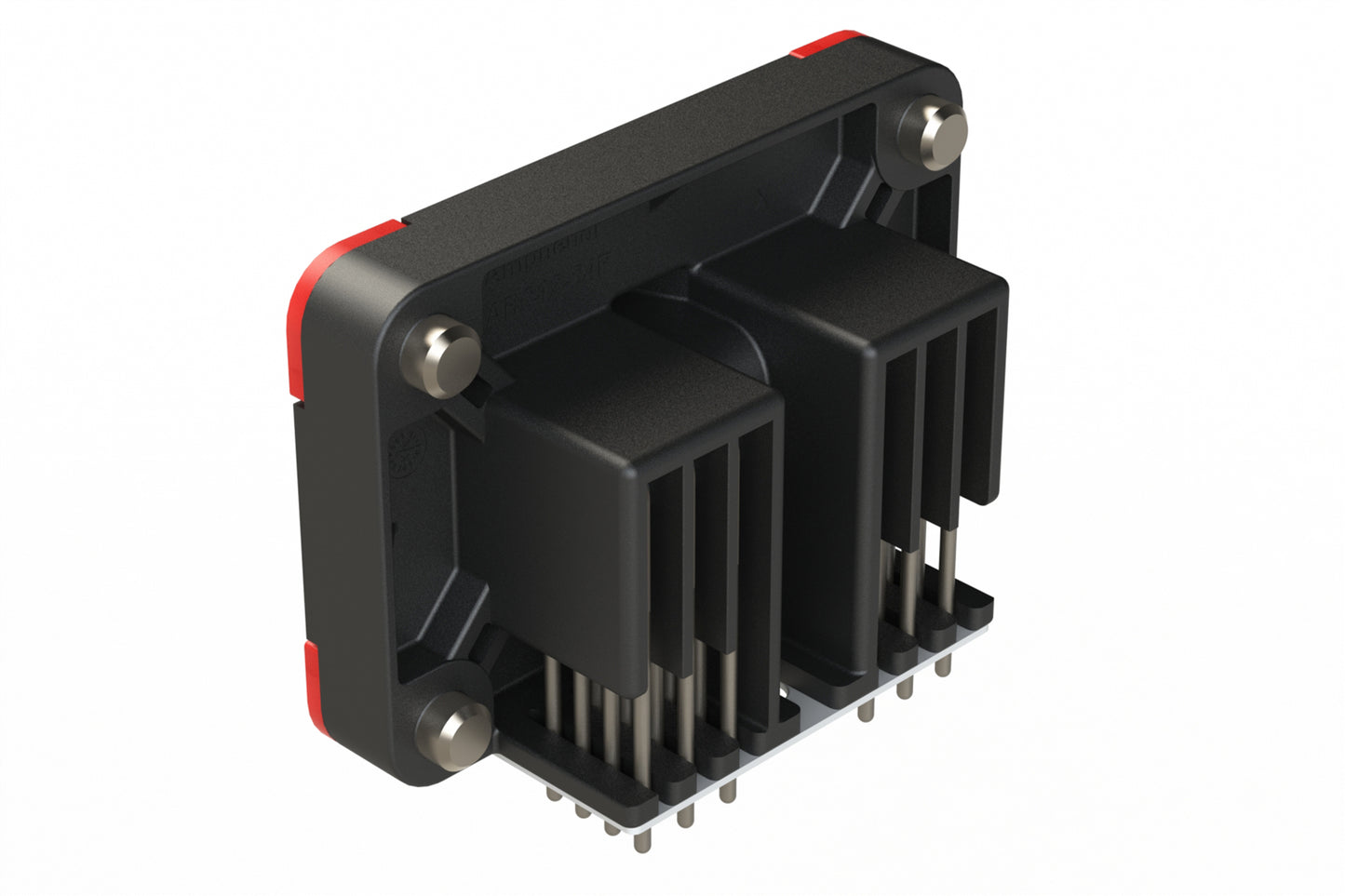

ARC13-24PD-BM03SP1 24 Position PCB Receptacle with Flange, 90°, Nickel Plating, Threaded Insert for Jackscrew, Gasket, Keyed D, Black. DRC13-24PD
ARC13-24PD-BM03SP1 24 Position PCB Receptacle with Flange, 90°, Nickel Plating, Threaded Insert for Jackscrew, Gasket, Keyed D, Black. DRC13-24PD
IMAGE MAY DIFFER
SKU:ARC13-24PD-BM03SP1
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 24Gender: Male
Contact Size: 16
Contact Material: Copper Alloy
Colour: Black
IP Rating: IP68 and IP69K (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C TO +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARC16-24SD*
Shape: Rectangular
24 Position PCB Receptacle with Flange, 90°, Nickel Plating, Threaded Insert for Jackscrew, Gasket, Keyed D, Black
