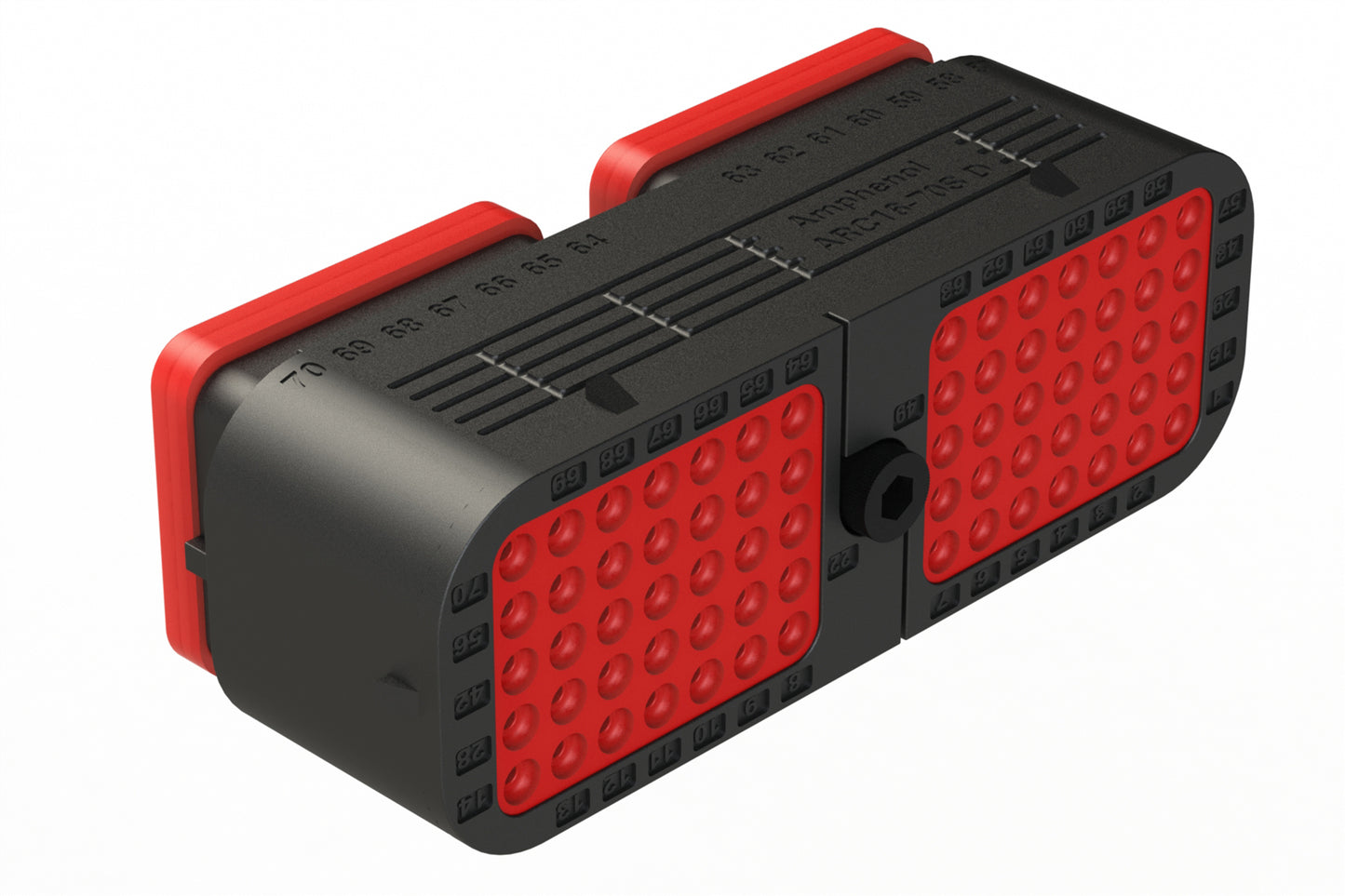

ARC16-70SD-P013 70 Position Plug, Socket, Contact Size Size 16, Jackscrew, Bonded Front Seal, Keyed D, Standard Diameter Rear Seal (Red), Black Body, Dustcap Included. DRC16-70SD-P013
ARC16-70SD-P013 70 Position Plug, Socket, Contact Size Size 16, Jackscrew, Bonded Front Seal, Keyed D, Standard Diameter Rear Seal (Red), Black Body, Dustcap Included. DRC16-70SD-P013
IMAGE MAY DIFFER
SKU:ARC16-70SD-P013
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Specifications
No. of Positions: 70Gender: Female
Contact Size: 16
Colour: Black
IP Rating: IP68 (1M of Water for 24 Hours), IP69K. Both in mated condition
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARC12-70PD*
Seal Diameter: 2.54mm (.100") - 3.40mm (.134")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Rectangular
70 Position Plug, Socket, Contact Size Size 16, Jackscrew, Bonded Front Seal, Keyed D, Standard Diameter Rear Seal (Red), Black Body, Dustcap Included
