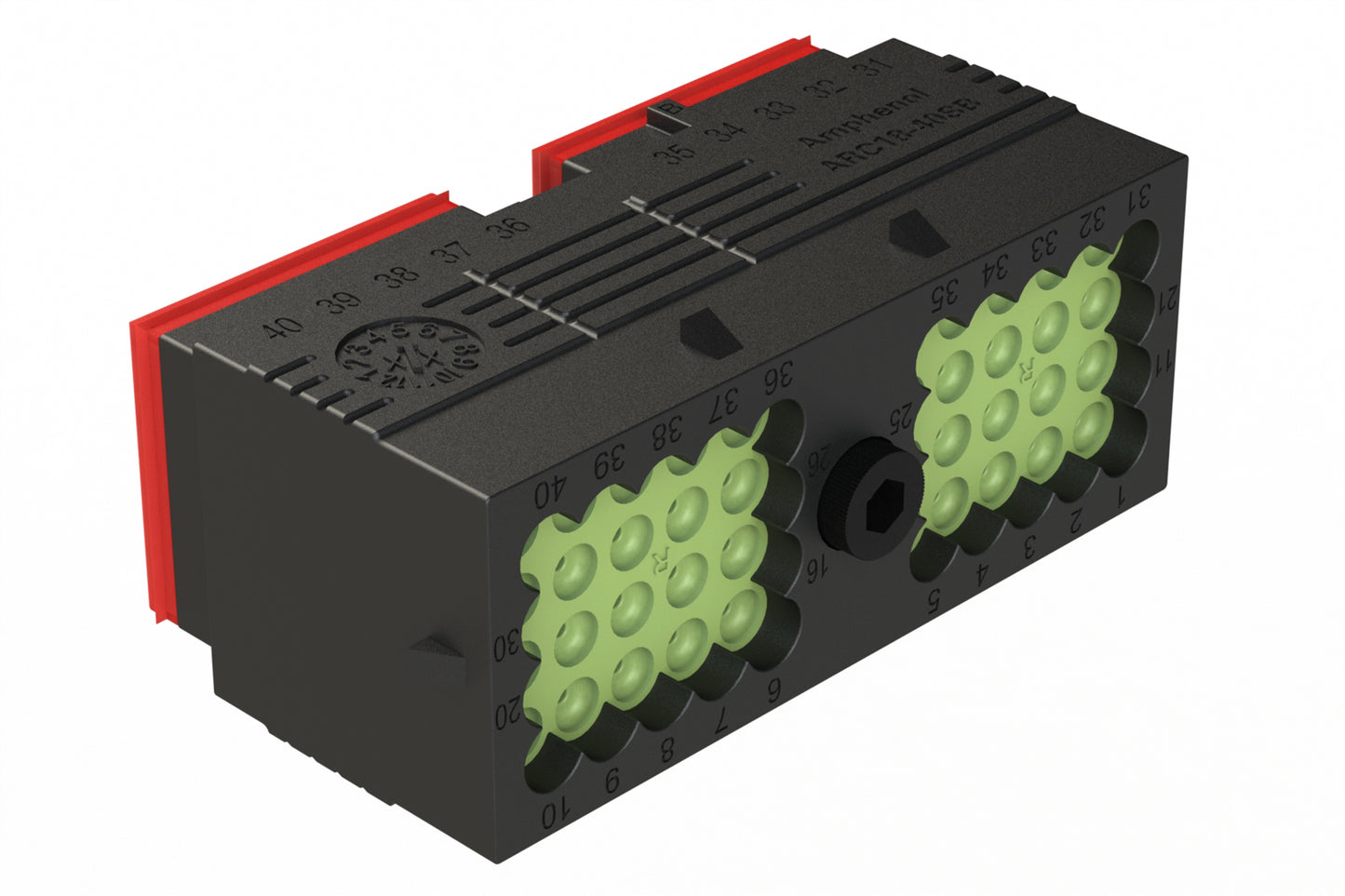

ARC18-40SBR-P013 40 Position Plug, Socket Contact, Size 16, Jackscrew, Bonded Front Seal, Keyed B, Reduced Diameter Rear Seal. DRC18-40SBE-P013
ARC18-40SBR-P013 40 Position Plug, Socket Contact, Size 16, Jackscrew, Bonded Front Seal, Keyed B, Reduced Diameter Rear Seal. DRC18-40SBE-P013
IMAGE MAY DIFFER
SKU:ARC18-40SBR-P013
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 40Gender: Female
Contact Size: 16
Colour: Black
IP Rating: IP68 (1M of Water for 24 Hours), IP69K. Both in mated condition
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARC12-40PB*
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG (2.0-0.5mm²)
Shape: Rectangular
40 Position Plug, Socket Contact, Size 16, Jackscrew, Bonded Front Seal, Keyed B, Reduced Diameter Rear Seal
