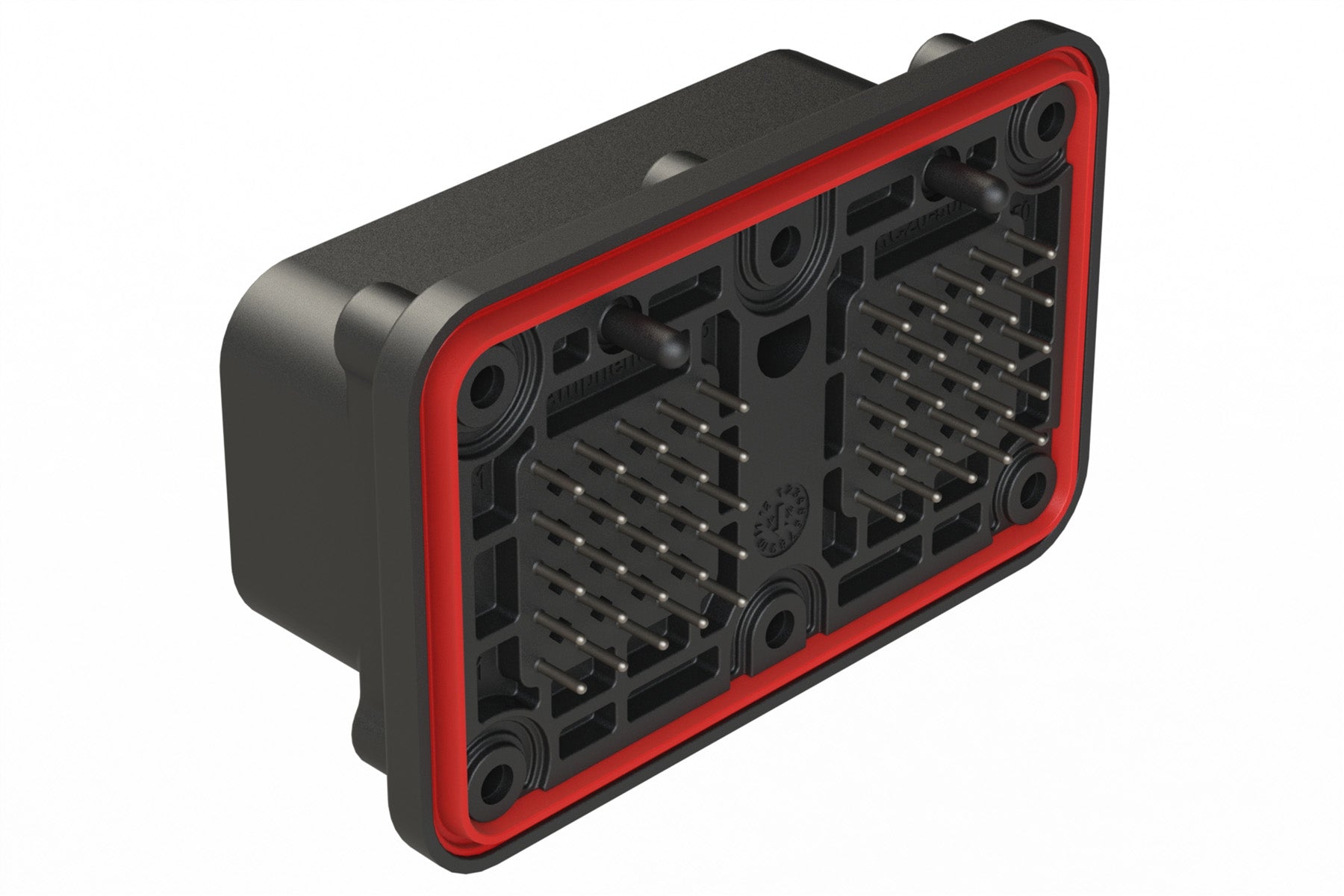

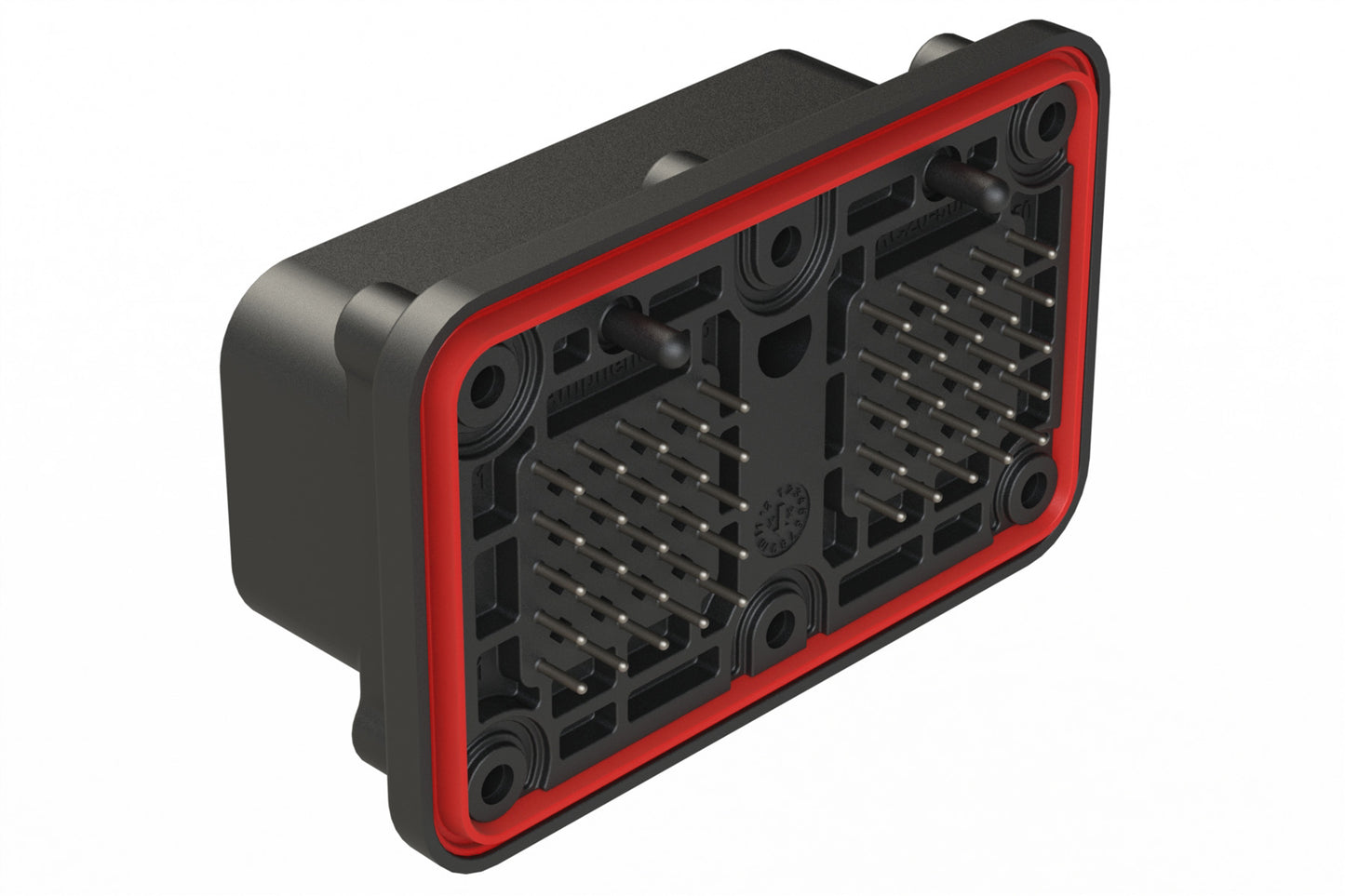

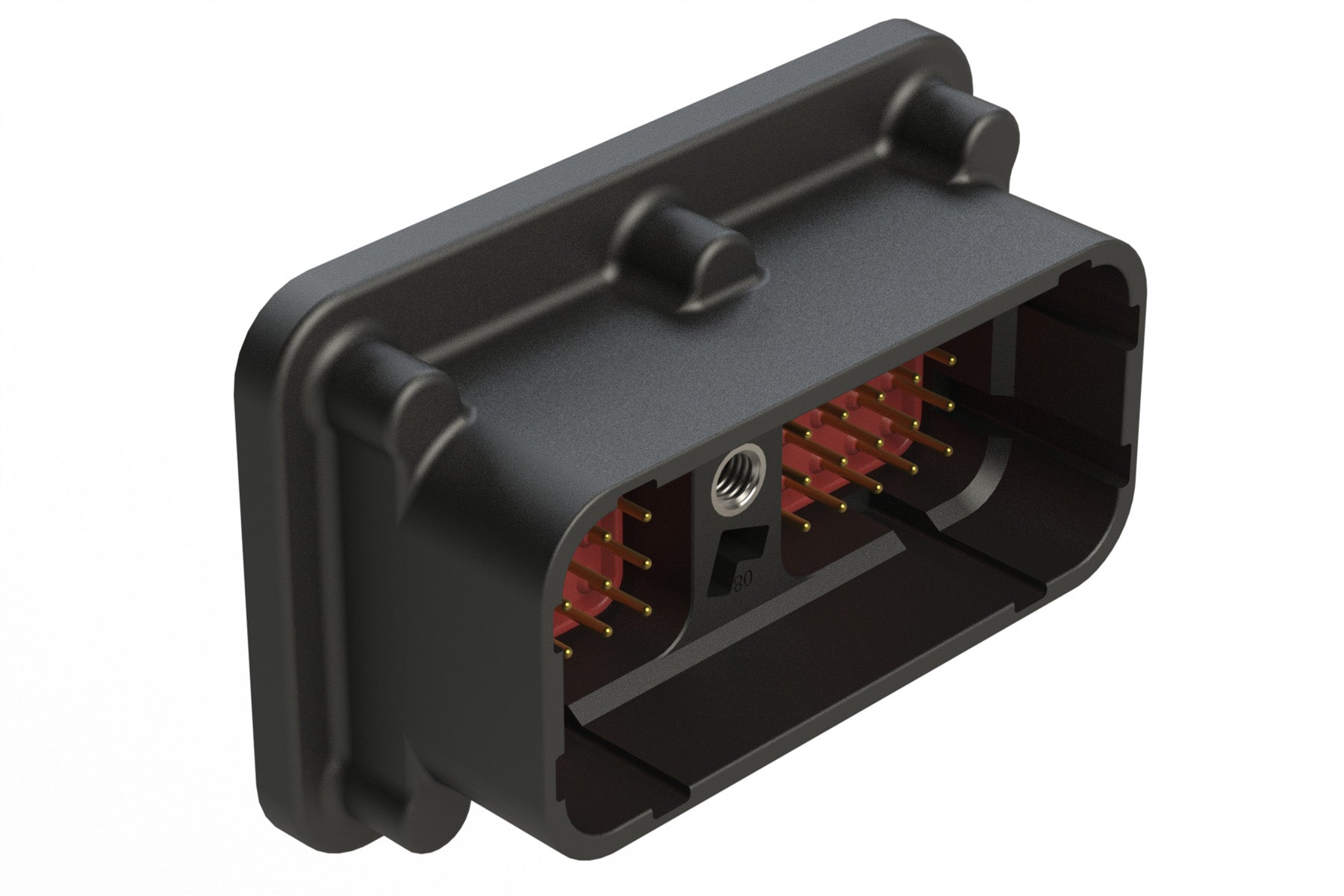

ARC20-50P08-BM01SP1 50 Position PCB Receptacle with Flange, Size 20 Pin Contacts, 7.5A, Selective Gold Plating, Self-Threading, Threaded Insert for Jackscrew, Gasket, Keyed 08, Black
ARC20-50P08-BM01SP1 50 Position PCB Receptacle with Flange, Size 20 Pin Contacts, 7.5A, Selective Gold Plating, Self-Threading, Threaded Insert for Jackscrew, Gasket, Keyed 08, Black
IMAGE MAY DIFFER
SKU:ARC20-50P08-BM01SP1
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 50Gender: Male
Contact Size: 20
Contact Material: Copper Alloy
Amperage: 7.5A
Colour: Black
IP Rating: IP68 (1M of water for a period of 24 hours,in mated condition) IP69K (in mated condition)
Insulation Resistance: 1007 megohms at 25°C
Operating Temperature: -55°C TO +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARC26-50S08* PLUG
Shape: Rectangular
Mounting Type: PCB Board Mount
50 Position PCB Receptacle with Flange, Size 20 Pin Contacts, 7.5A, Selective Gold Plating, Self-Threading, Threaded Insert for Jackscrew, Gasket, Keyed 08, Black
