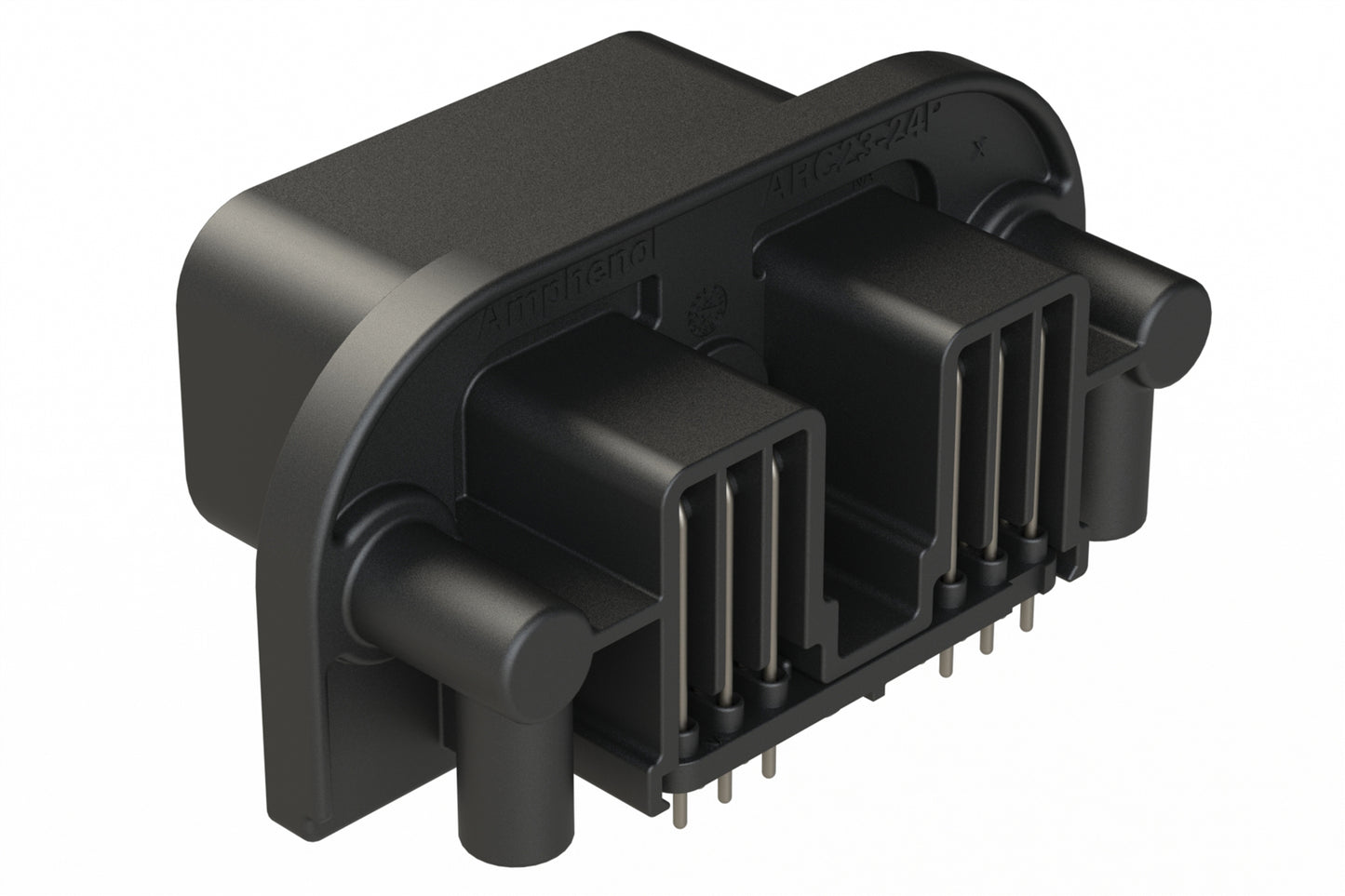

ARC23-24PD-BM01SP1 24 Position PCB Receptacle, Pin, Flange Mount, Right Angle, Size 20 Contacts, Selective Plating, Threaded Insert for Jackscrew, Keyed D, Black. DRC23-24PD
ARC23-24PD-BM01SP1 24 Position PCB Receptacle, Pin, Flange Mount, Right Angle, Size 20 Contacts, Selective Plating, Threaded Insert for Jackscrew, Keyed D, Black. DRC23-24PD
IMAGE MAY DIFFER
SKU:ARC23-24PD-BM01SP1
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Downloads
DatasheetAssembly Instructions
Assembly Instructions
Specifications
No. of Positions: 24Gender: Male
Contact Size: 20
Contact Material: Copper Alloy
Colour: Black
IP Rating: IP68 (1M of Water for 24 hours, in mated condition), IP69K (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: ARC16-24SD*
Shape: Rectangular
24 Position PCB Receptacle, Pin, Flange Mount, Right Angle, Size 20 Contacts, Selective Plating, Threaded Insert for Jackscrew, Keyed D, Black
