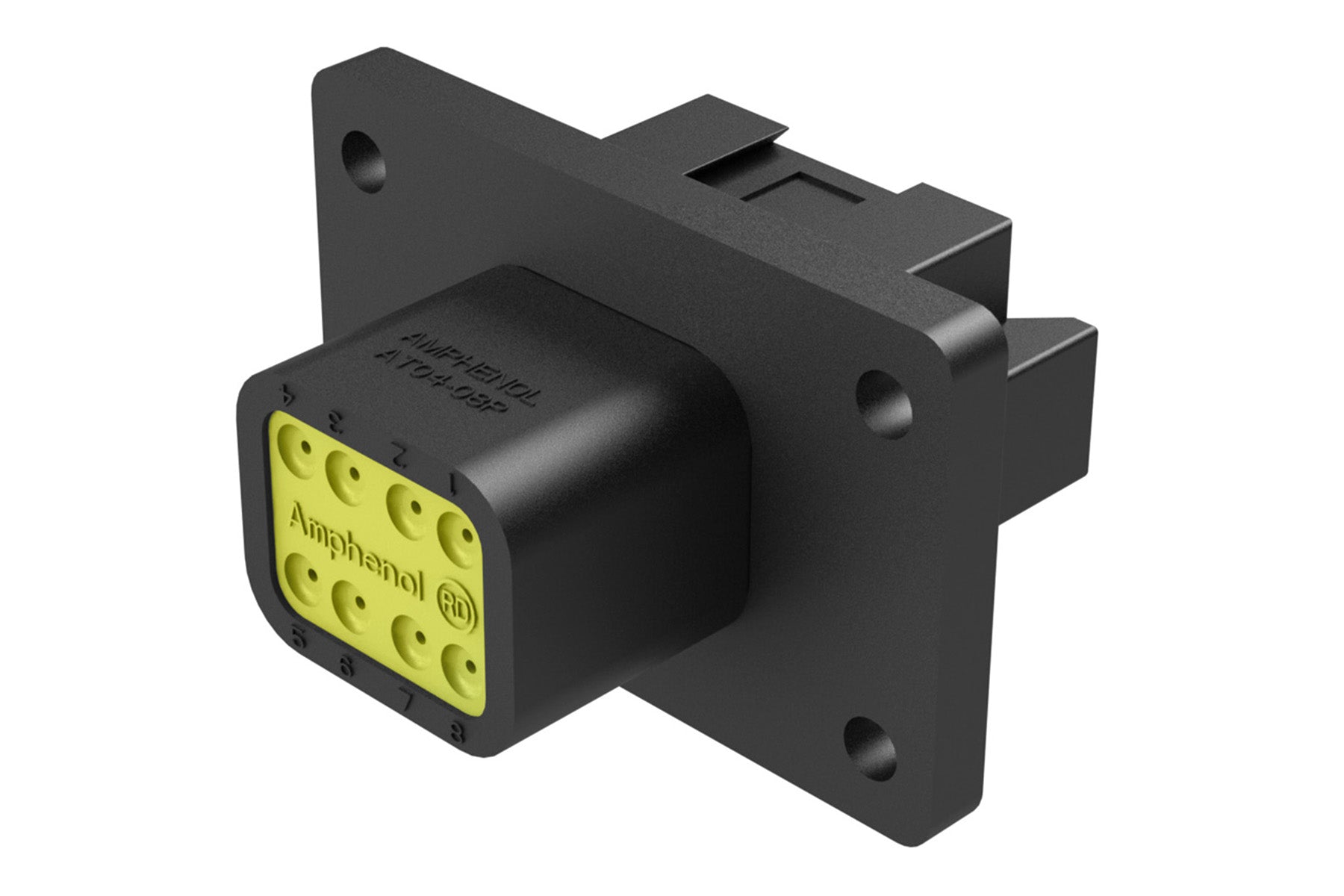

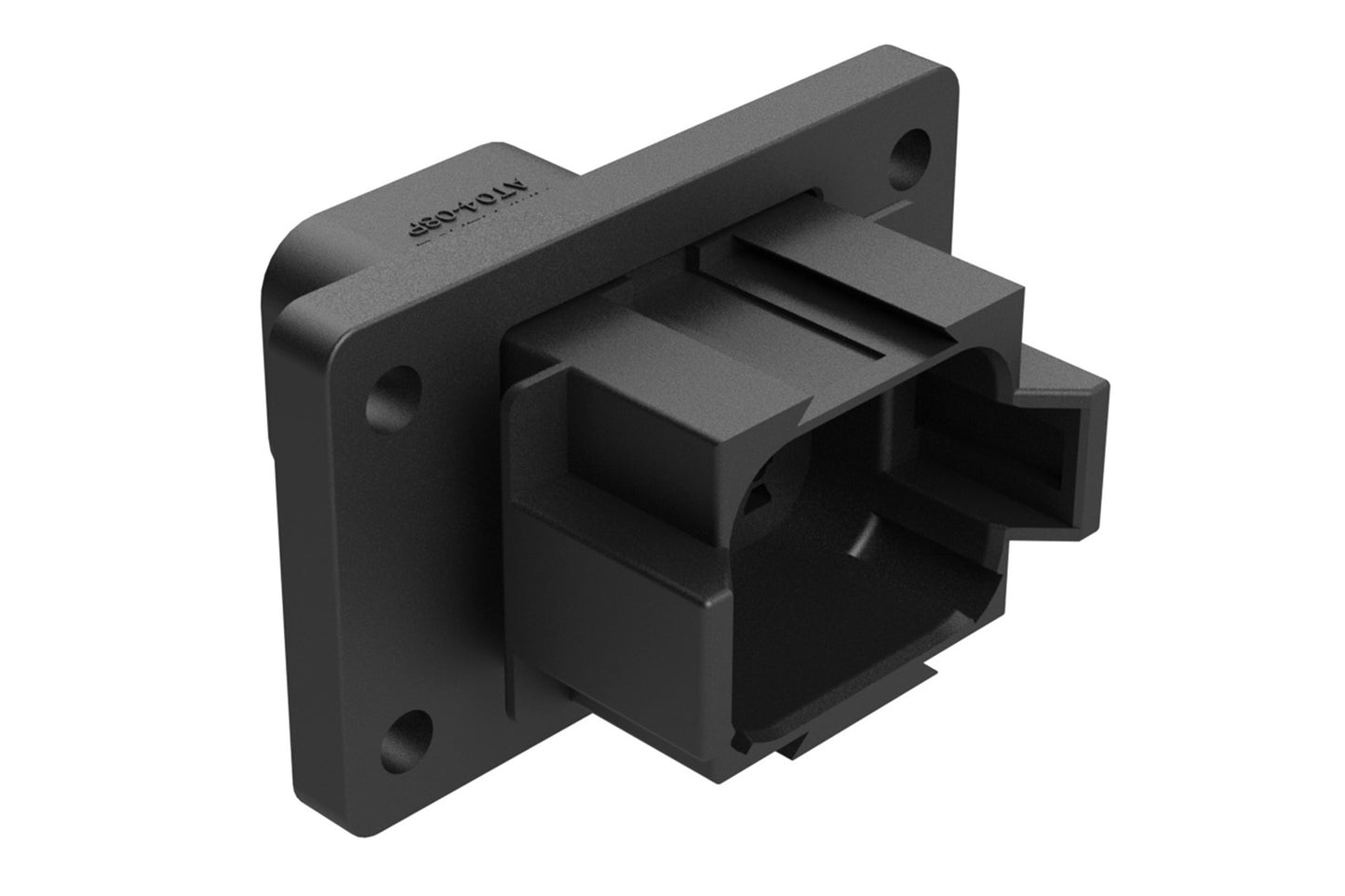

AT04-08PA-CL06 8 Position Receptacle Flange Mount Connector, Pin, Black, Reduced Diamer Seal, Keyed A. DT04-08PA-CL06
AT04-08PA-CL06 8 Position Receptacle Flange Mount Connector, Pin, Black, Reduced Diamer Seal, Keyed A. DT04-08PA-CL06
IMAGE MAY DIFFER
SKU:AT04-08PA-CL06
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8Gender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone rubber
Mating Part: AT06-08SA* PLUG
Wedge Part: AW8P
Seal Diameter: 1.35mm (.053") - 3.05 mm (.120")
Shape: Rectangular
8 Position Receptacle Flange Mount Connector, Pin, Black, Reduced Diamer Seal, Keyed A
