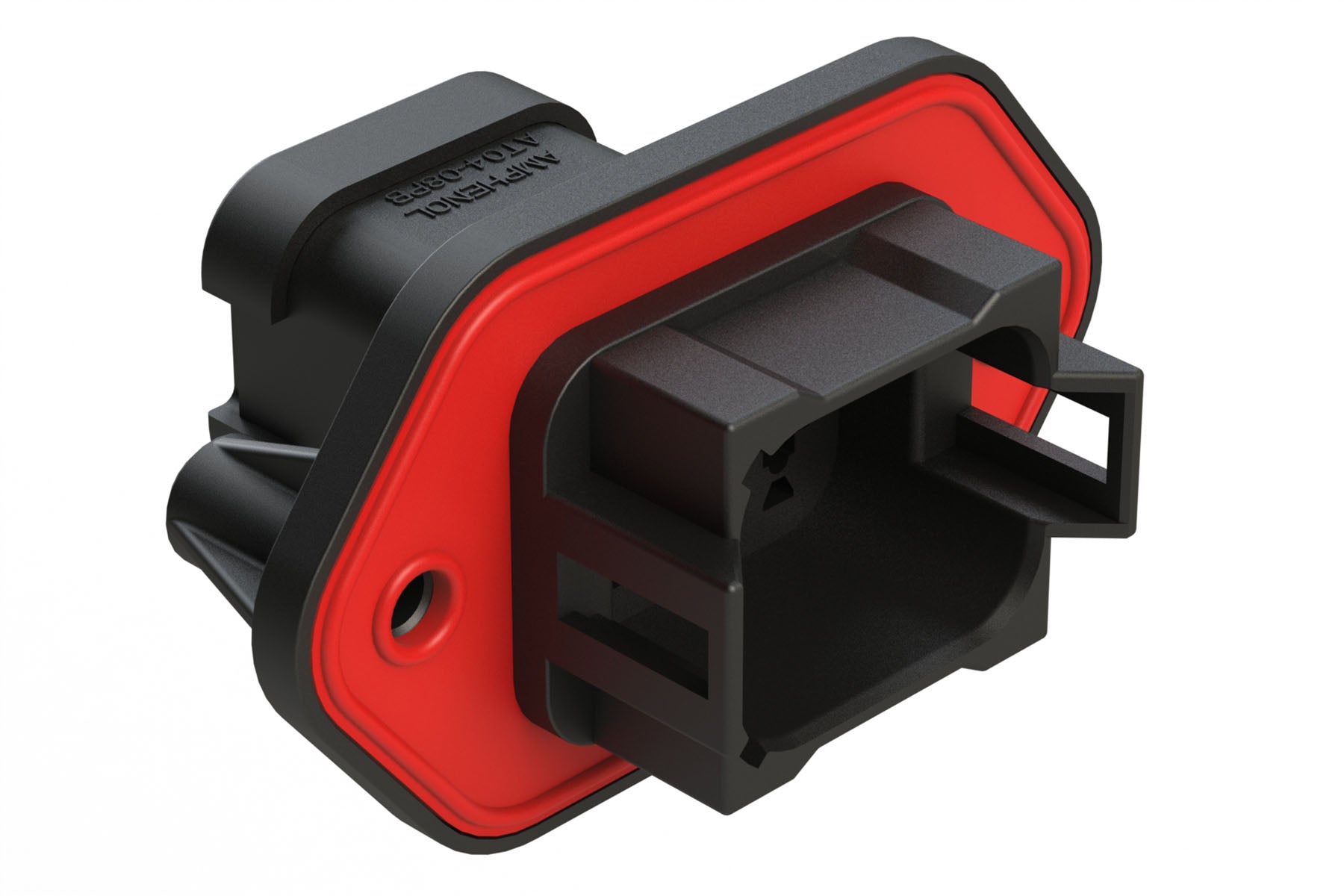

AT04-08PB-PMR7G 8-Way Flange Mount Receptacle, Gasket, Reduced Seal
AT04-08PB-PMR7G 8-Way Flange Mount Receptacle, Gasket, Reduced Seal
IMAGE MAY DIFFER
SKU:AT04-08PB-PMR7G
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8 B Position KeyGender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT06-08SB* Plug
Wedge Part: AW8P
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG
Shape: Rectangular
8-Way Flange Mount Receptacle, Gasket, Reduced Seal
