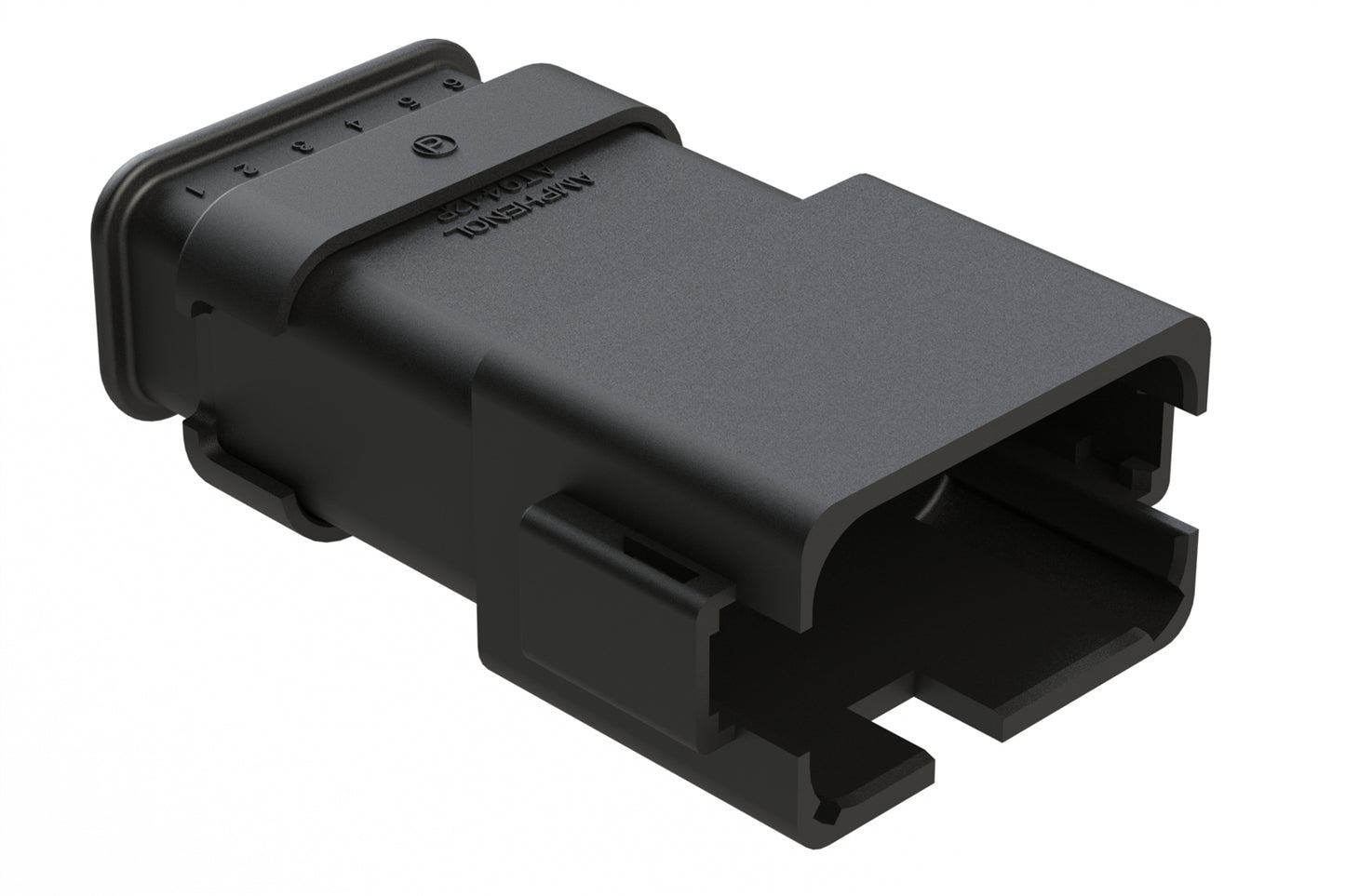

AT04-12PA-SRBK 12-Way Receptacle Male Connector with Strain Relief Endcap, Standard Seal, A Position Key, Black
AT04-12PA-SRBK 12-Way Receptacle Male Connector with Strain Relief Endcap, Standard Seal, A Position Key, Black
IMAGE MAY DIFFER
SKU:AT04-12PA-SRBK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 12 A Position KeyGender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT06-12SA* Plug
Wedge Part: AW12P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular
12-Way Receptacle Male Connector with Strain Relief Endcap, Standard Seal, A Position Key, Black
