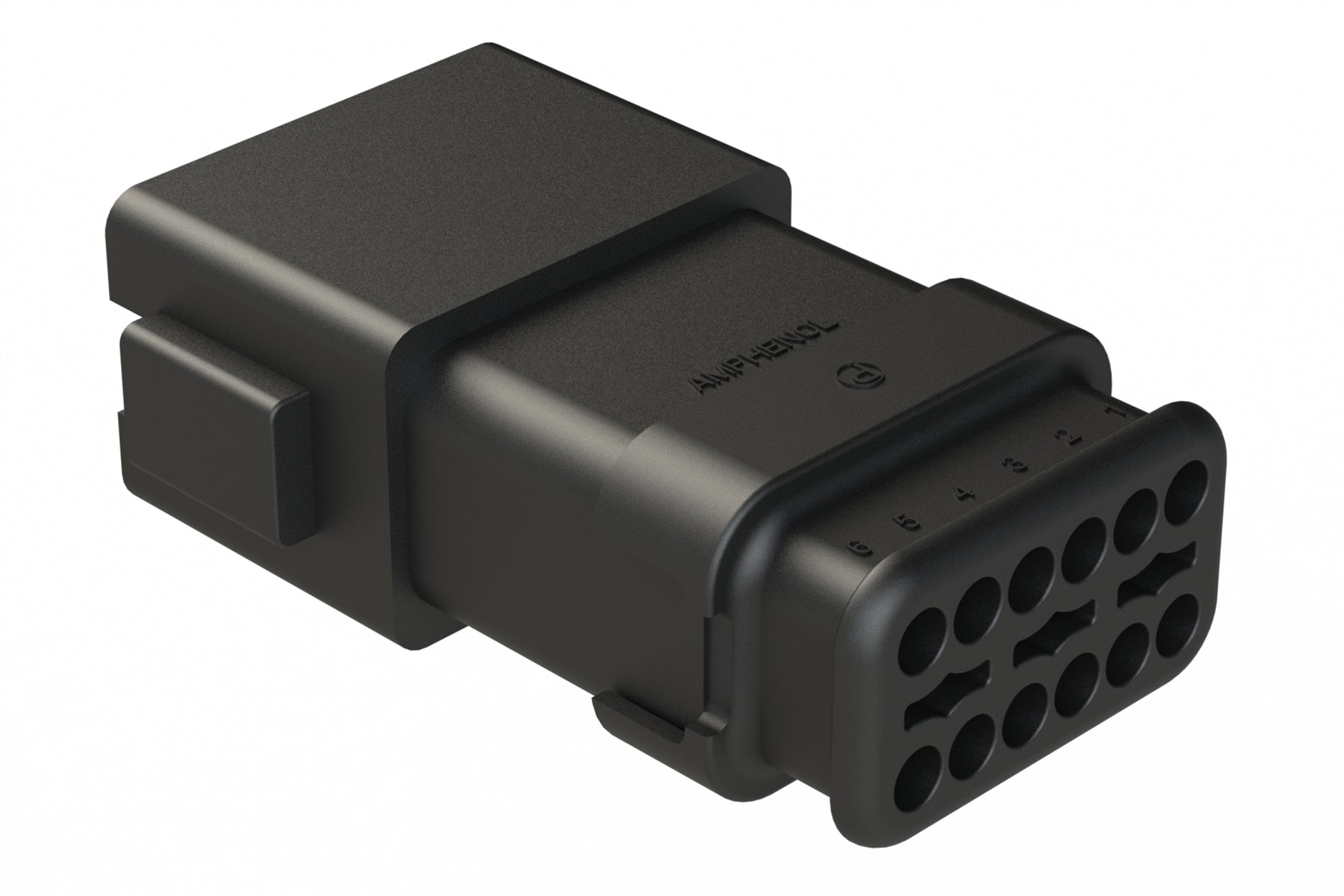

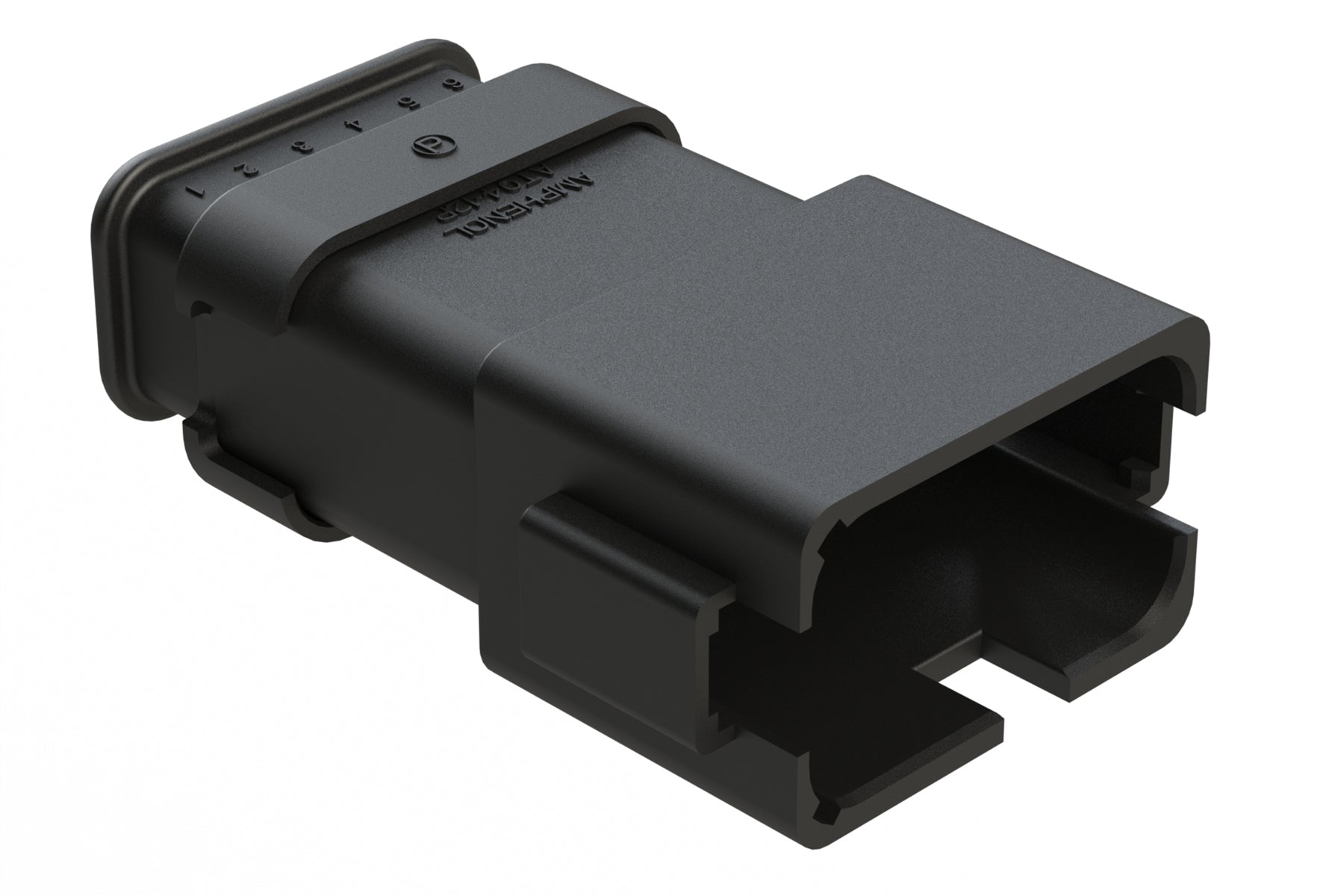

AT04-12PB-SRBK 12 position Pin receptacle key position B, with strain relief end cap, black. DT04-12PB-E008
AT04-12PB-SRBK 12 position Pin receptacle key position B, with strain relief end cap, black. DT04-12PB-E008
IMAGE MAY DIFFER
SKU:AT04-12PB-SRBK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 12 B Position KeyGender: Male
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megaohms min. @ 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-12SB* Plug
Wedge Part: AW12P
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG
Shape: Rectangular
12 position Pin receptacle key position B, with strain relief end cap, black
