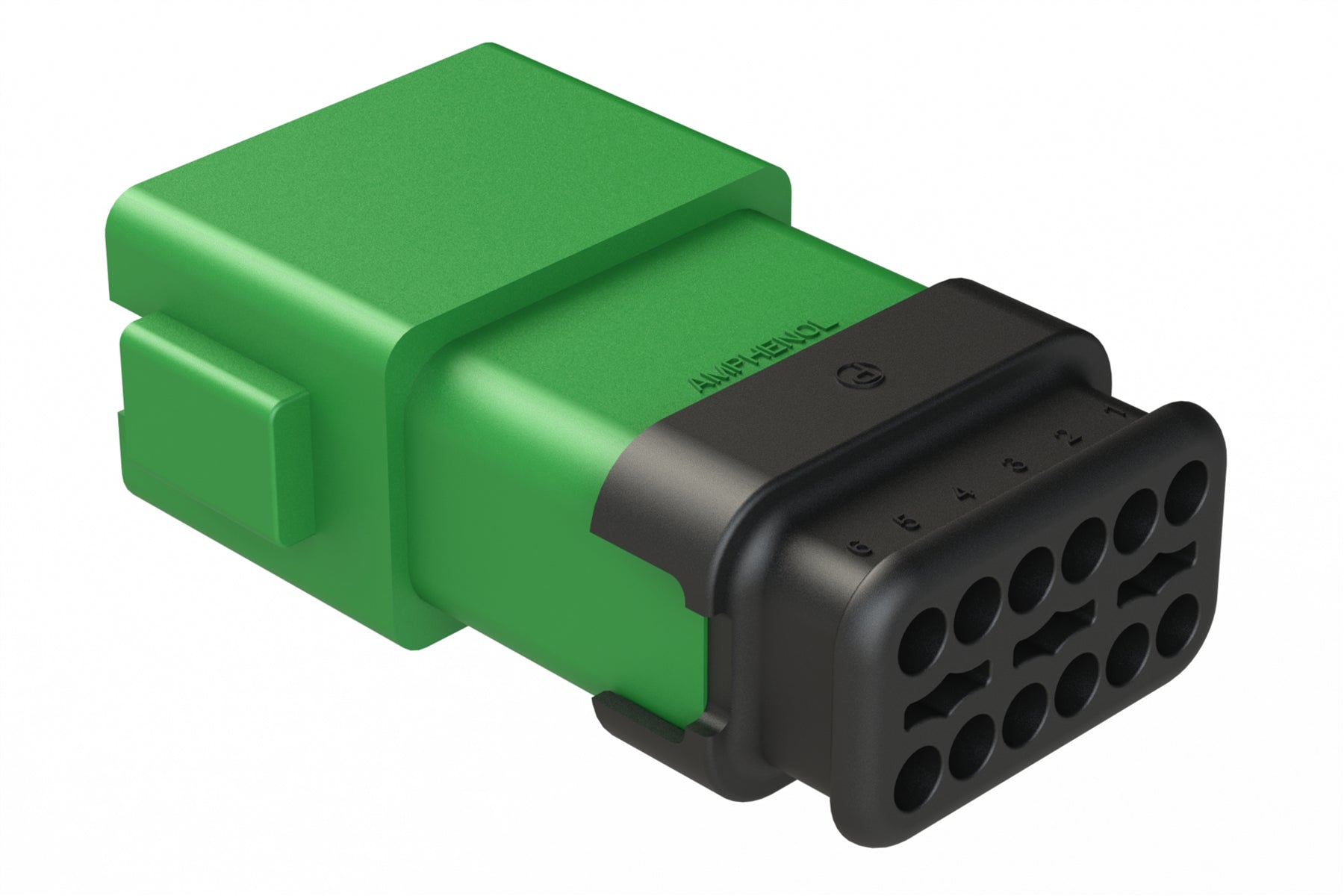

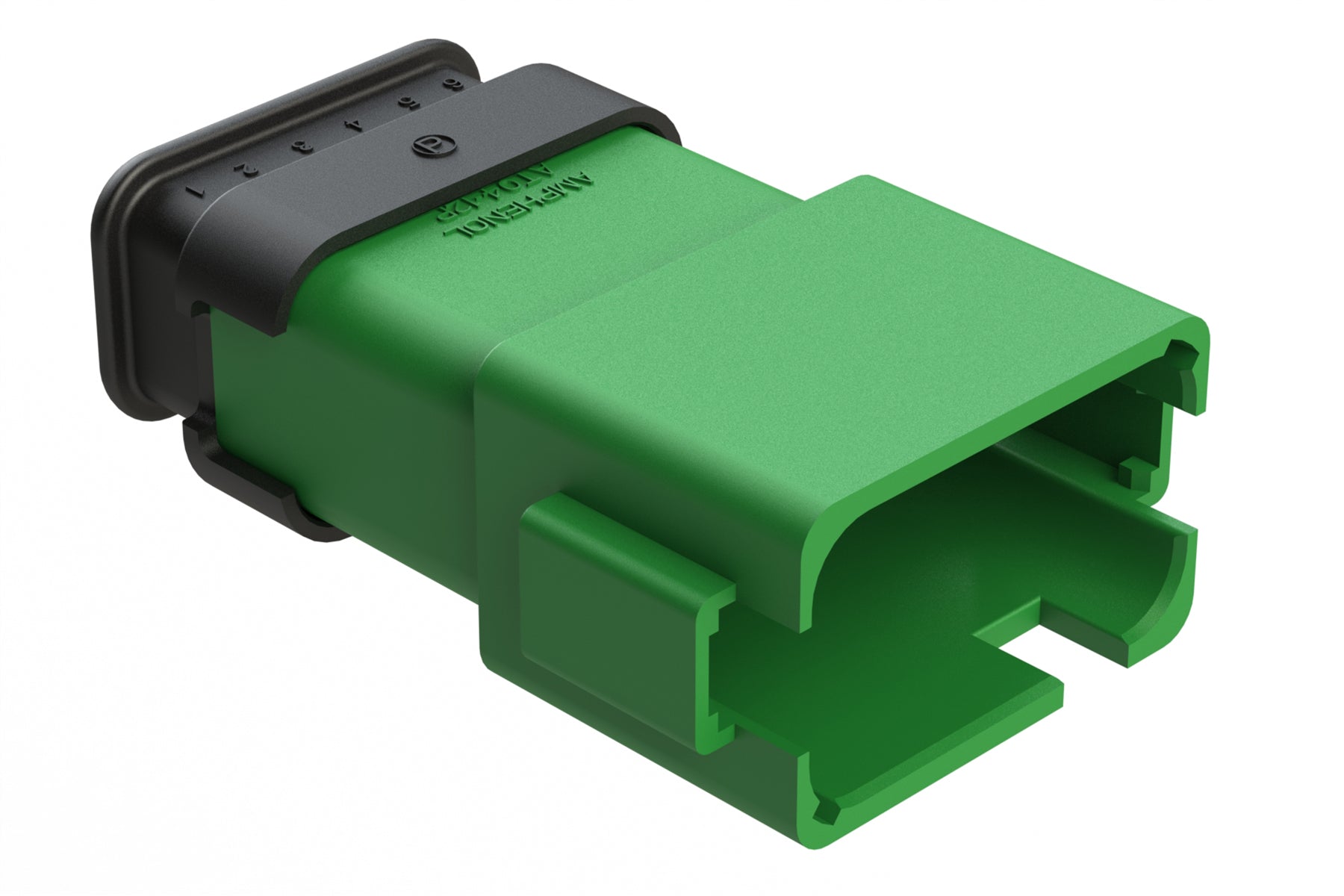

AT04-12PC-SRGN 12 position Pin receptacle key position C, with strain relief, green. DT04-12PC-E008
AT04-12PC-SRGN 12 position Pin receptacle key position C, with strain relief, green. DT04-12PC-E008
IMAGE MAY DIFFER
SKU:AT04-12PC-SRGN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 12 C Position KeyGender: Male
Contact Size: 16
Colour: Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT06-12SC* Plug
Wedge Part: AW12P
Seal Diameter: 2.24mm (.088") - 3.68mm (.145")
Wire Range: 14-20 AWG
Shape: Rectangular
12 position Pin receptacle key position C, with strain relief, green
