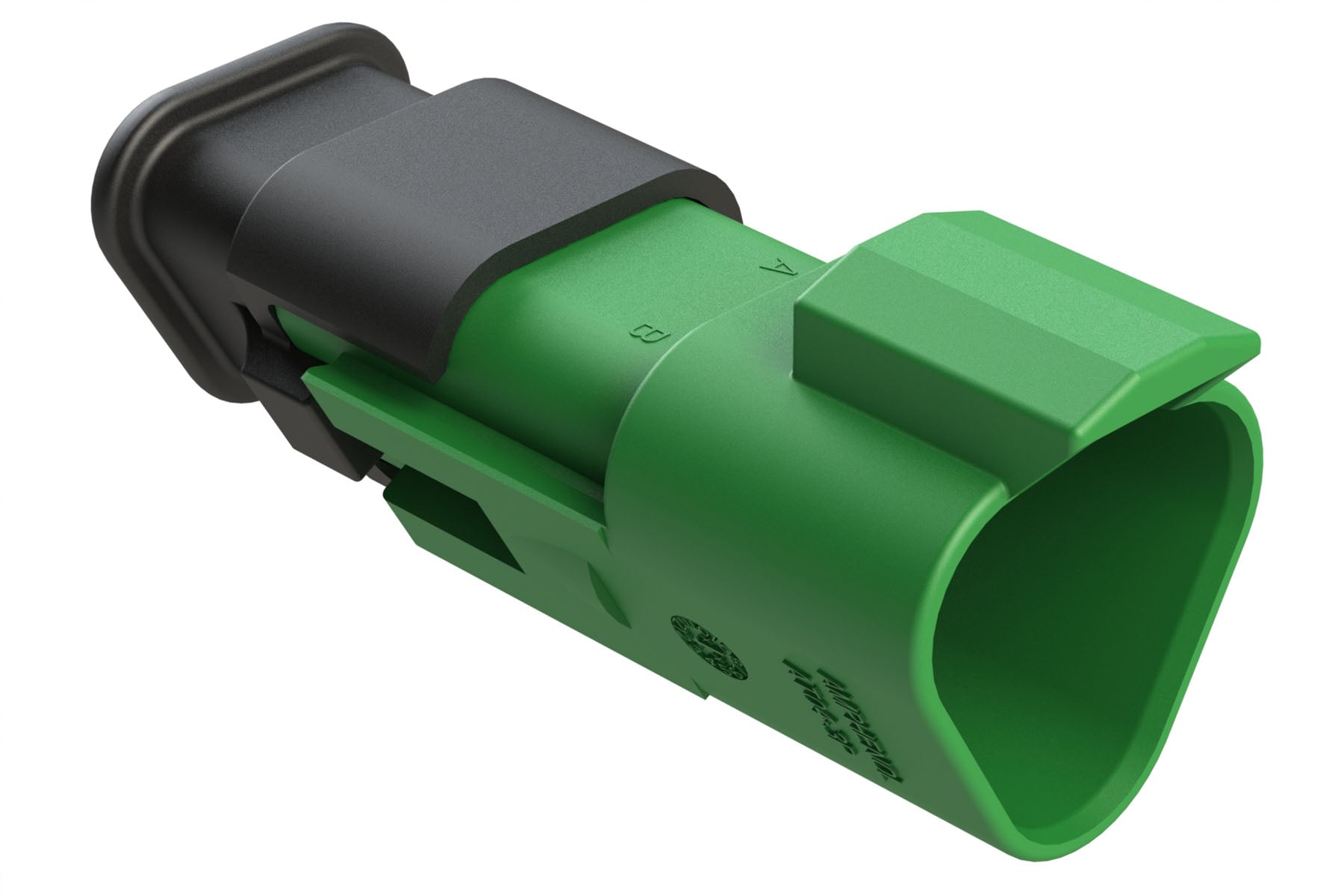

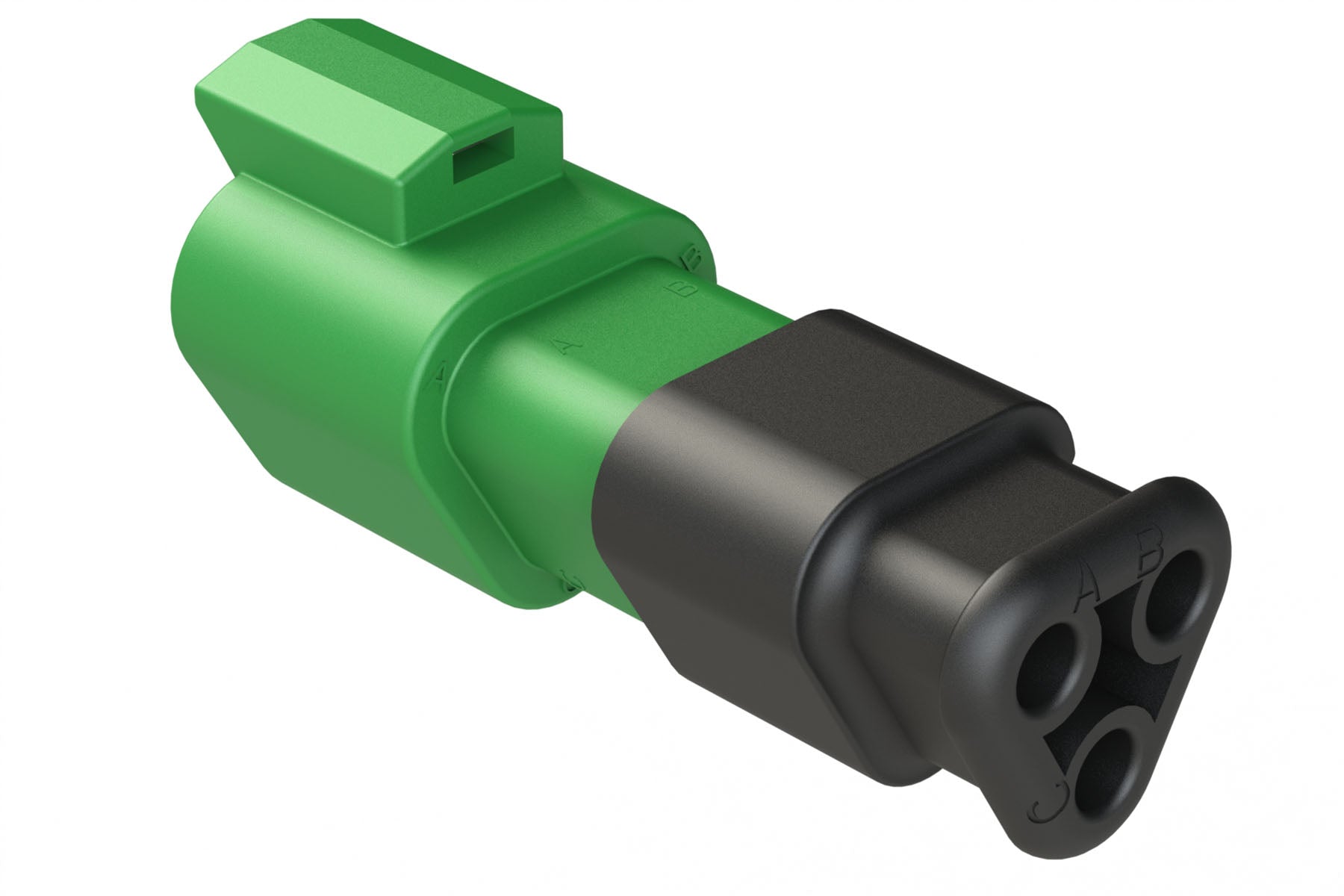

AT04-3P-SR02GRN 3-Way Receptacle Male Connector with Reduced Diameter Seal, Green
AT04-3P-SR02GRN 3-Way Receptacle Male Connector with Reduced Diameter Seal, Green
IMAGE MAY DIFFER
SKU:AT04-3P-SR02GRN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 3Gender: Male
Contact Size: 16
Colour: Green
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT06-3S* Plug
Wedge Part: AW3P
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG
Shape: triangular
3-Way Receptacle Male Connector with Reduced Diameter Seal, Green
