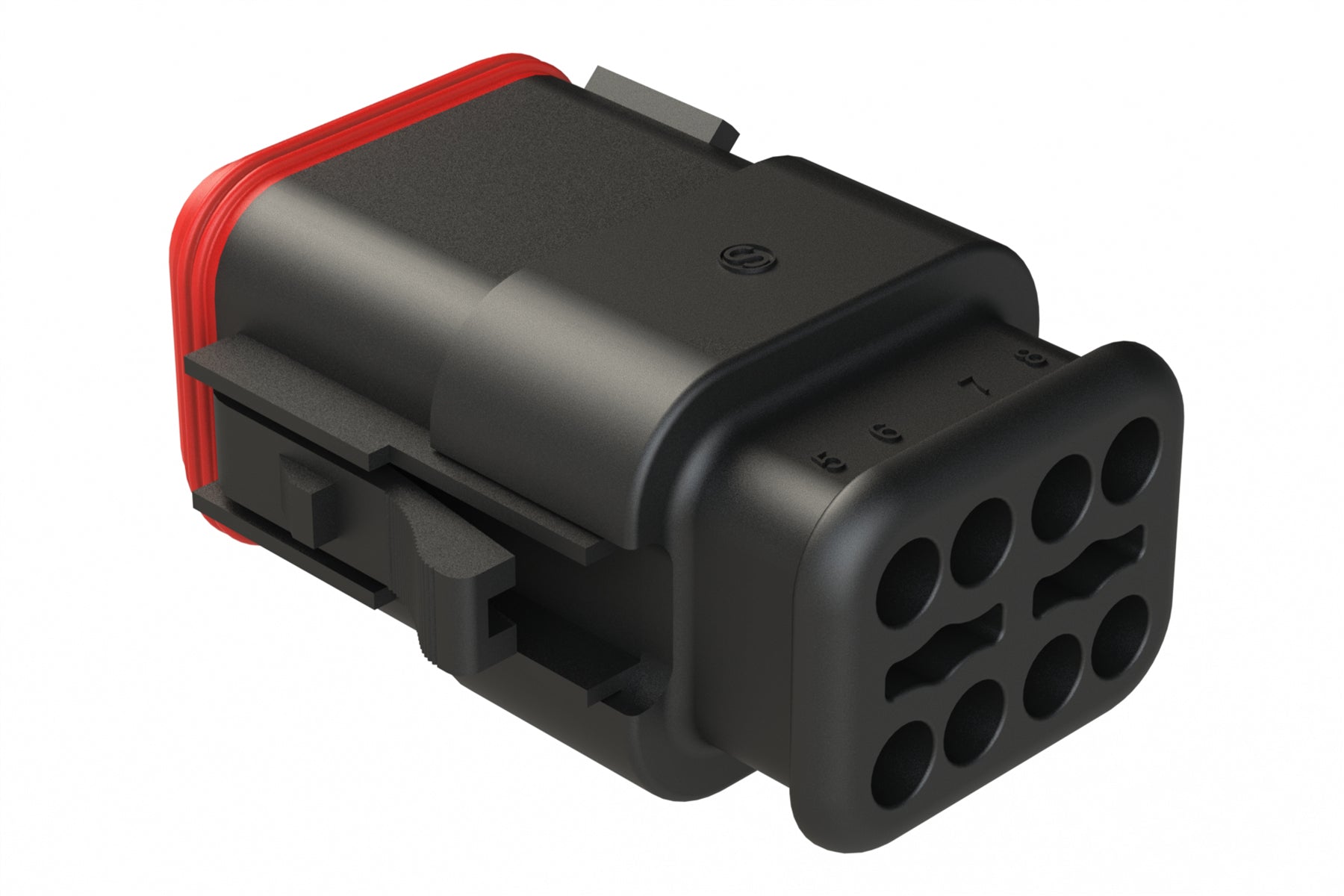

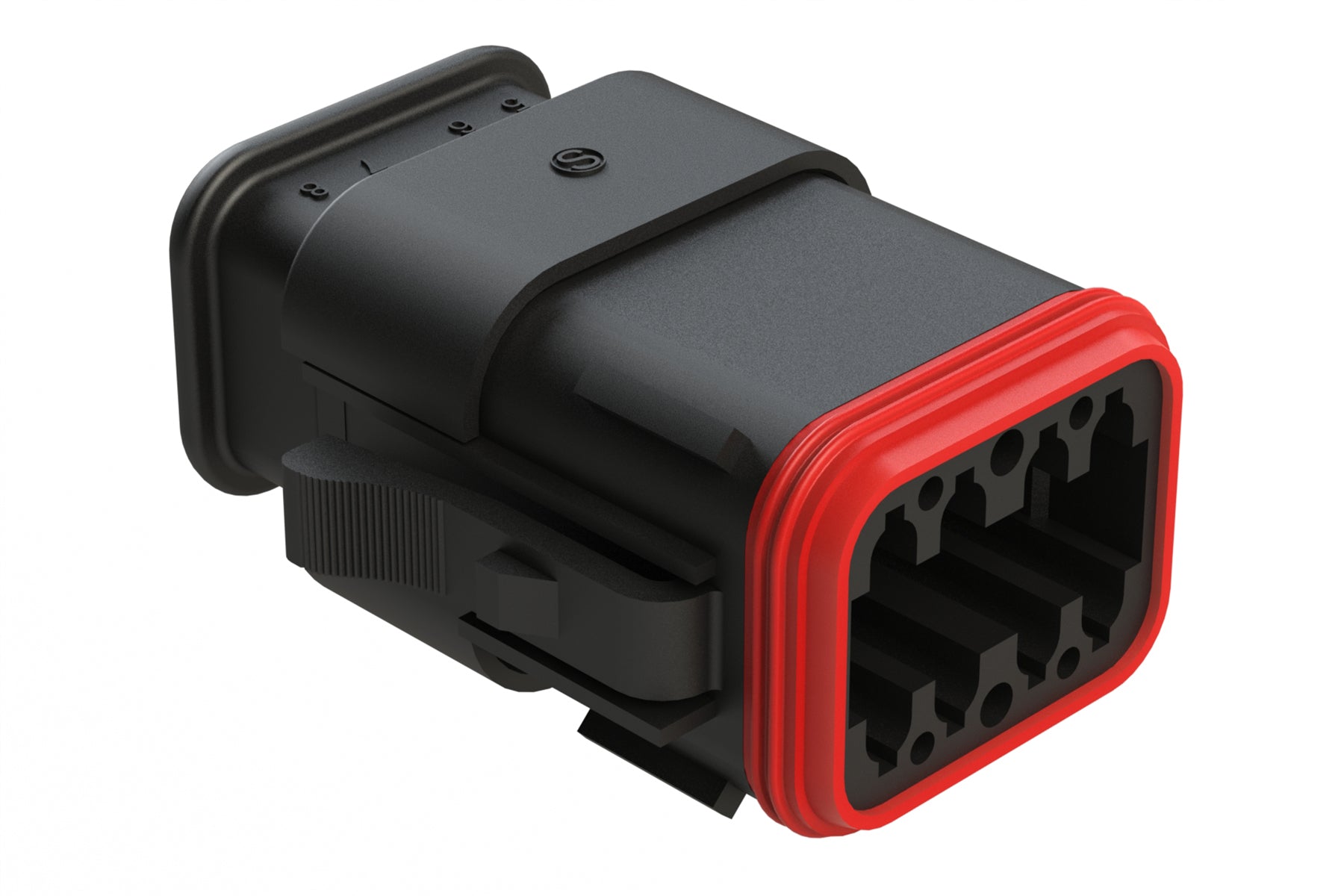

AT06-08SB-SR2BK 8 position Socket plug key position B, with strain relief & Reduced Diameter Seal, black. DT06-08SB-CE13
AT06-08SB-SR2BK 8 position Socket plug key position B, with strain relief & Reduced Diameter Seal, black. DT06-08SB-CE13
IMAGE MAY DIFFER
SKU:AT06-08SB-SR2BK
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Specifications
No. of Positions: 8 B Position KeyGender: Female
Contact Size: 16
Colour: Black
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 Megaohm min @ 25°C
Operating Temperature: -55°C to + 125°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Rubber
Mating Part: AT04-08PB* Receptacle
Wedge Part: AW8S
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG
Shape: Rectangular
8 position Socket plug key position B, with strain relief & Reduced Diameter Seal, black
