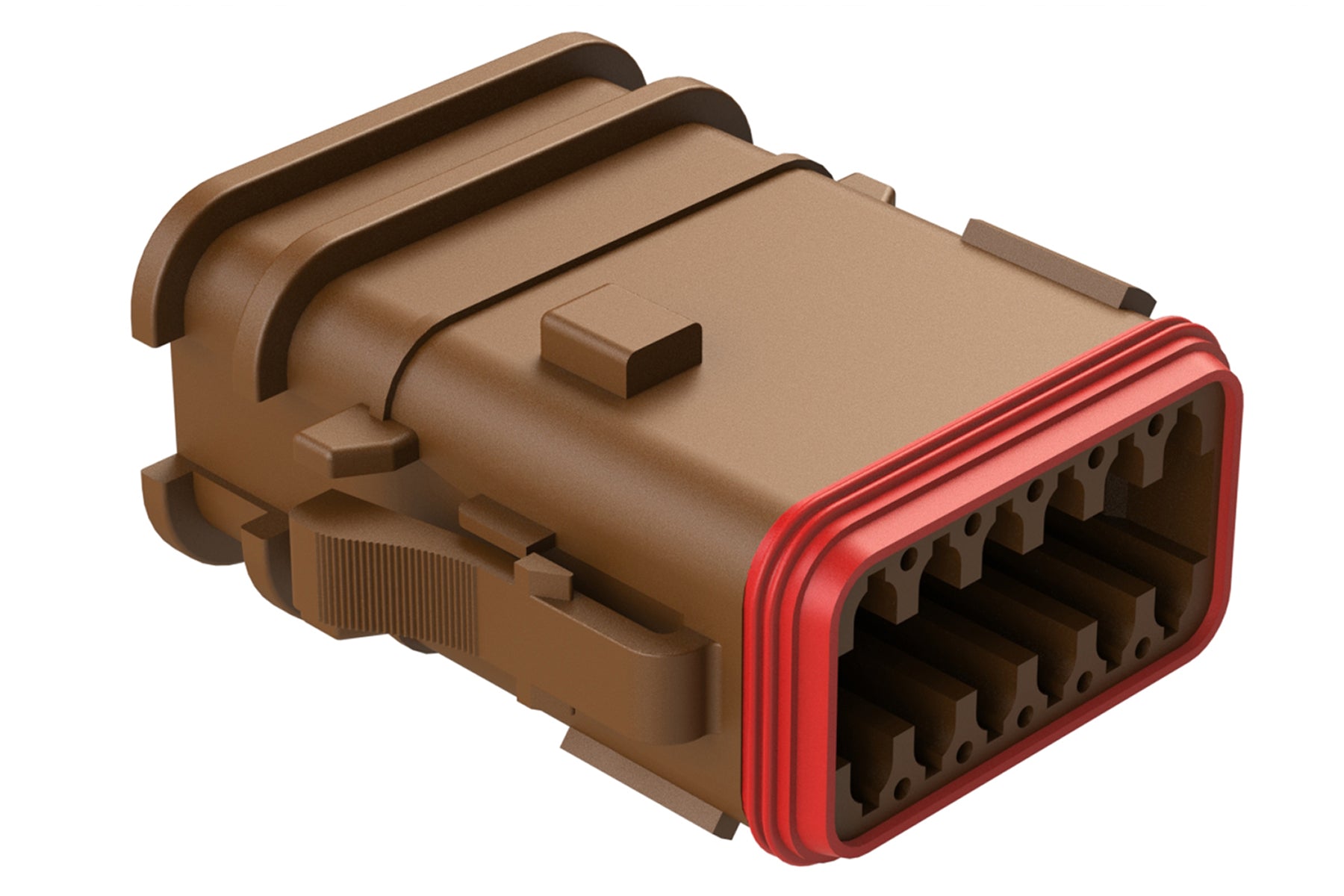

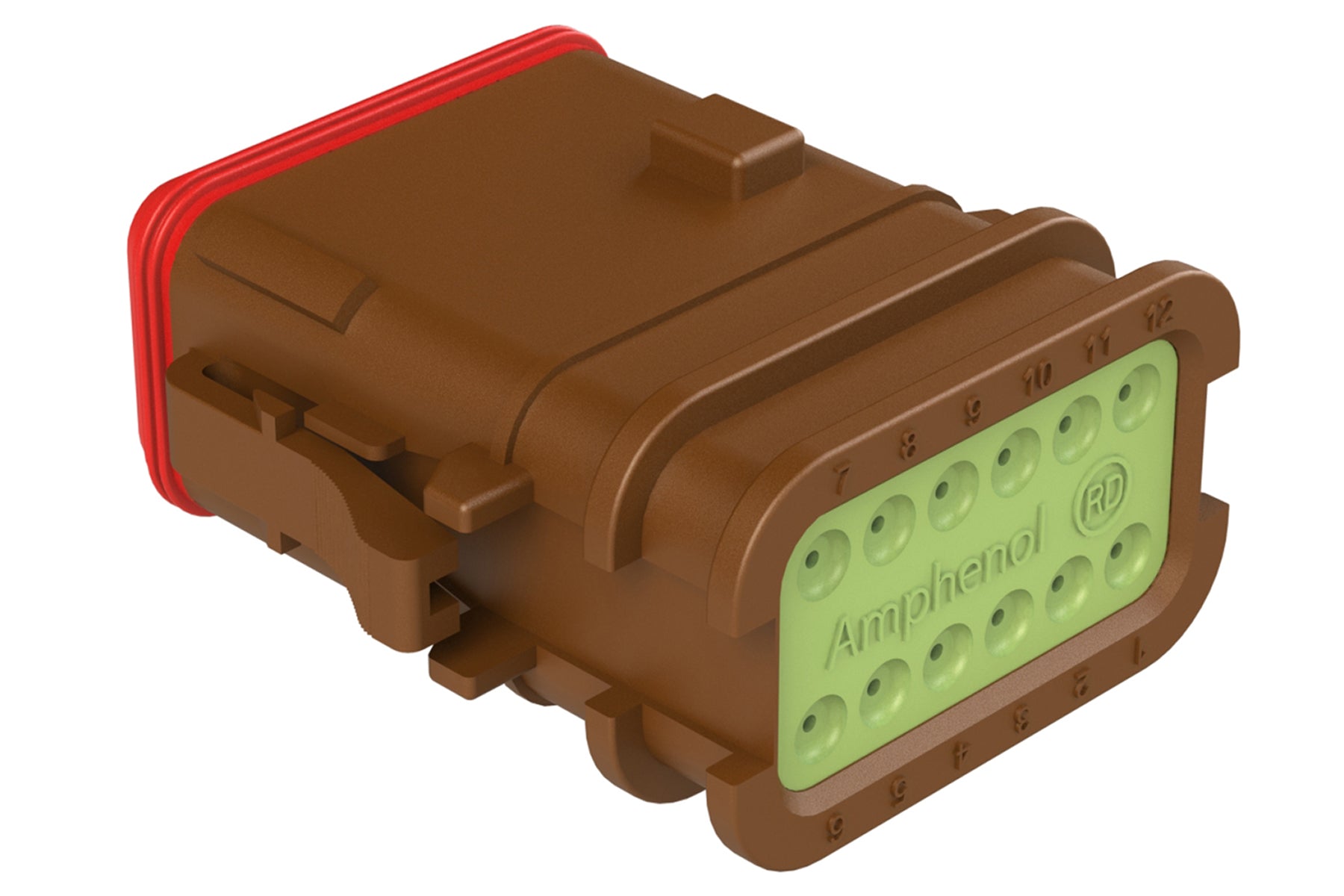

AT06-12SD-OMRDBRN 12 Position Overmolded Plug, Socket, Reduced Seal, Keyed D, Brown
AT06-12SD-OMRDBRN 12 Position Overmolded Plug, Socket, Reduced Seal, Keyed D, Brown
IMAGE MAY DIFFER
SKU:AT06-12SD-OMRDBRN
Regular price
$0.00 AUD
Regular price
Sale price
$0.00 AUD
Unit price
/
per
Couldn't load pickup availability
Stock Level
Stock levels vary — Contact us for detailsDownloads
Datasheet3D Model
Assembly Instructions
Assembly Instructions
Specifications
No. of Positions: 12Gender: Female
Contact Size: 16
Colour: Brown
IP Rating: IP67 (in mated condition)
Insulation Resistance: 1000 megohms at 25°C
Operating Temperature: -55°C to +125°C
Mating Cycle Durability: >100
Housing Material: PA66 GF15
Seal Material: Silicone Rubber
Mating Part: AT04-12PD* Receptacle
Wedge Part: AW12S
Seal Diameter: 1.35mm (.053") - 3.05mm (.120")
Wire Range: 14-20 AWG
Shape: Rectangular
12 Position Overmolded Plug, Socket, Reduced Seal, Keyed D, Brown
